2-1
SECTION 2. Installation
2.1 INTRODUCTION
This chapter provides Remote Display mounting
and electrical installation information.
Instruments will operate accurately (to
specification) in locations with temperatures
ranging from -10 °C +55°C (+14°F to + 130°F).
The installation location should be free of vi-
bration. Unless equipped with the proper
enclosure option, instruments should not be
located in areas containing explosive or
corrosive vapors. In all installations, ac (mains)
power should be supplied from a clean (transient
free) instrument power source.
2.2 MOUNTING
2.2.1 STANDARD UNIT MOUNTING
Standard Remote Display Units are shipped with
the necessary hardware for panel mounting.
Outline and panel cutout dimensions are
depicted in Figure 2-1. Installation of panel
mount adapters is shown in Figure 2-2.
2.2.2 OPTIONAL NEMA 414X ENCLOSURES
NEMA 4 and 4X enclosures are equipped with
four pre-punched holes for mounting to a wall
or bracket. A U-bolt can be used for mounting
to a pipe support. The enclosure should be
installed in a vibration free environment. If
conduit is used to shield interconnecting
cables, drains should be provided to reduce
the possibility of condensate entering the
enclosure. Outline dimensions for NEMA 4/4X
enclosures are presented in Figure 2-3.

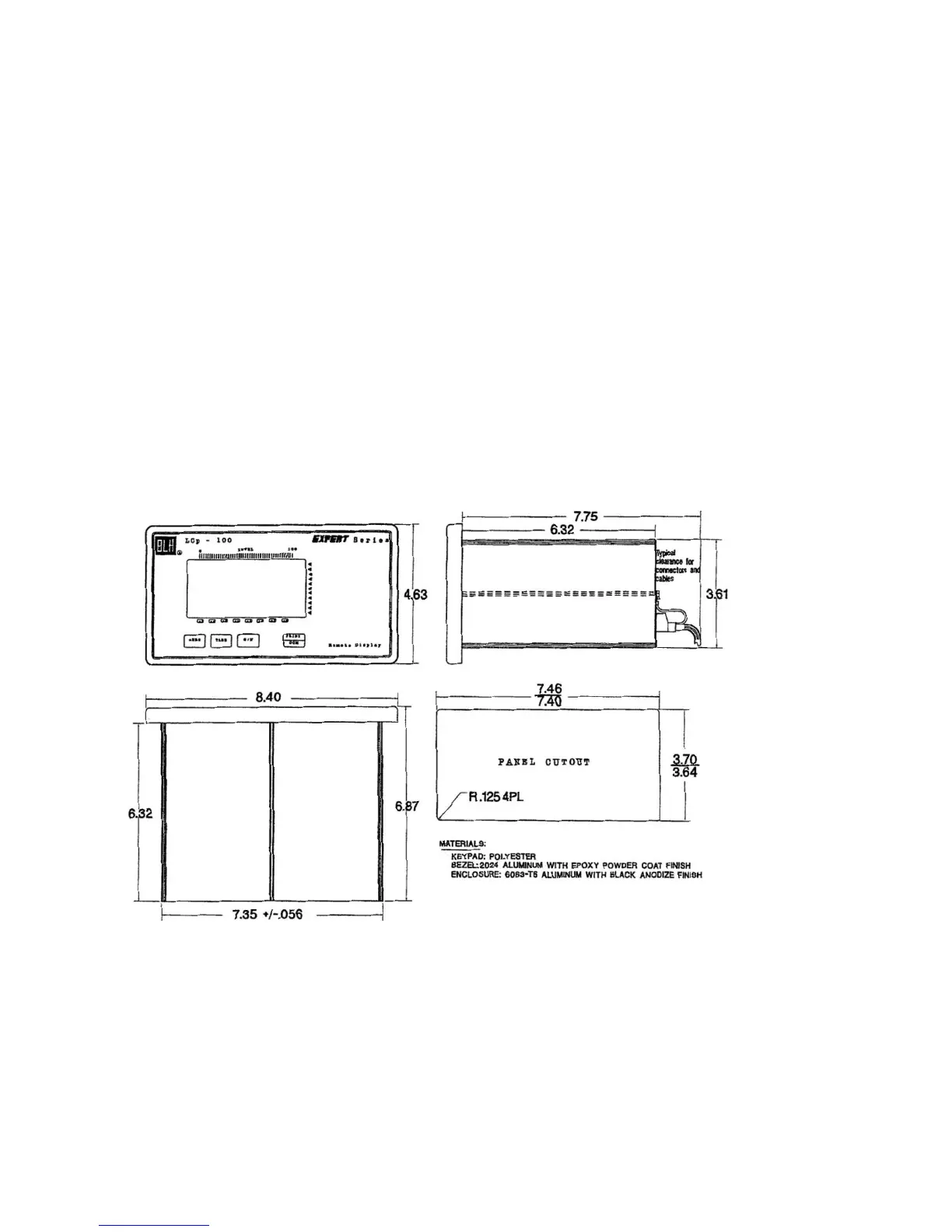

Figure 2-1. Panel Mount Outline Dimensions
