Vision AV-1800 User Manual

4
AV-1800_manual_en.doc

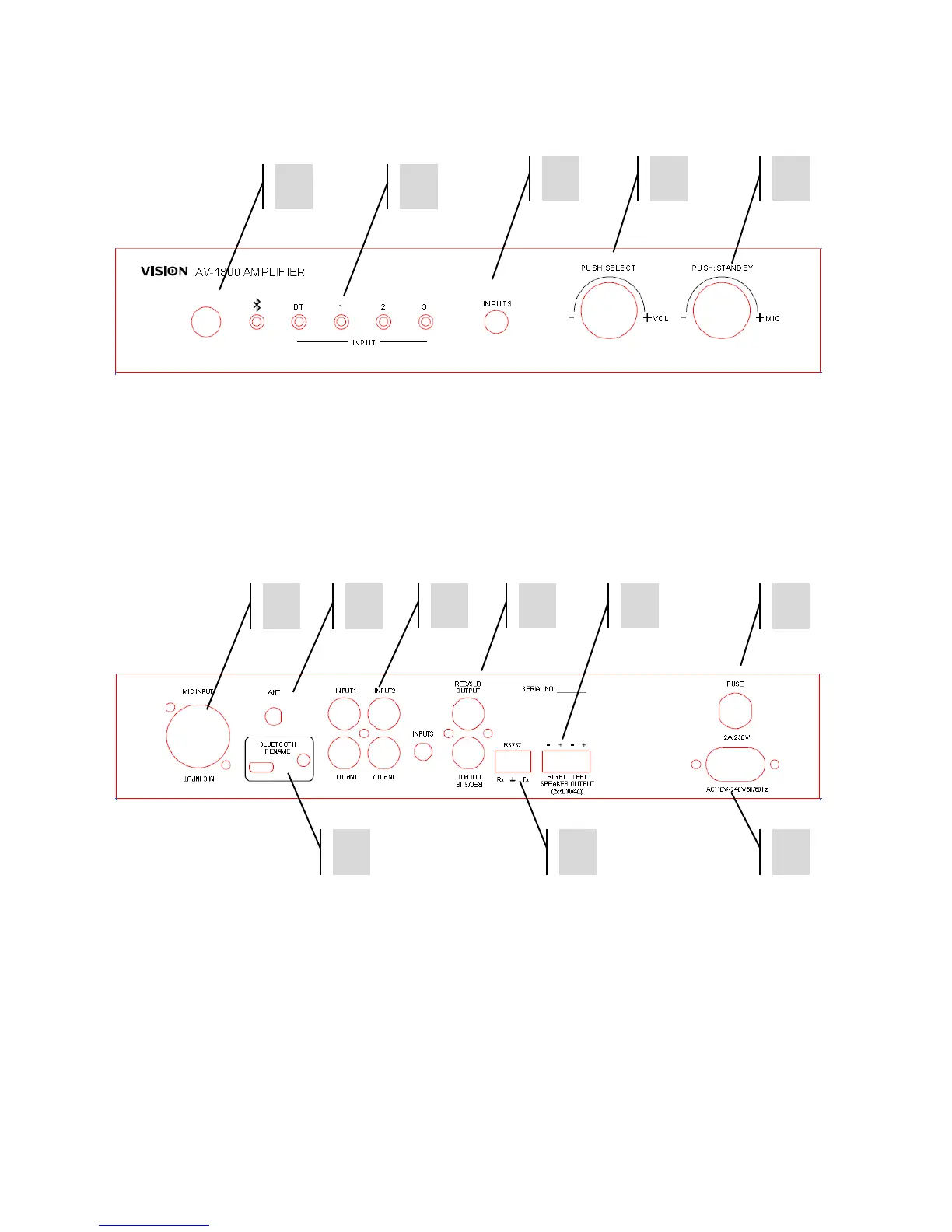

FRONT AND REAR PANELS
1. IR Receiver
2. Active Input LED
3. Line-level Input 3 (3.5mm Minijack - duplicated on rear panel)
4. Line-level Input Volume [Push: Input Select]
5. Microphone Input Gain [Push: On/Off]
1. Microphone Input (Balanced XLR)
2. Bluetooth Antenna
3. Micro USB and Bluetooth programming mode button
4. Line-level Inputs 1-3
5. Line-Level Output
6. RS-232 Control Input
7. Loudspeaker Outputs
8. Fuse
9. Figure-8 (C8) Power Input
1
3
4
5
2
1
2
4
3
6
9
7
5
8

Vision AV-1800 Specifications

General

Brand	Vision
Model	AV-1800
Category	Amplifier
Language	English
