34 35

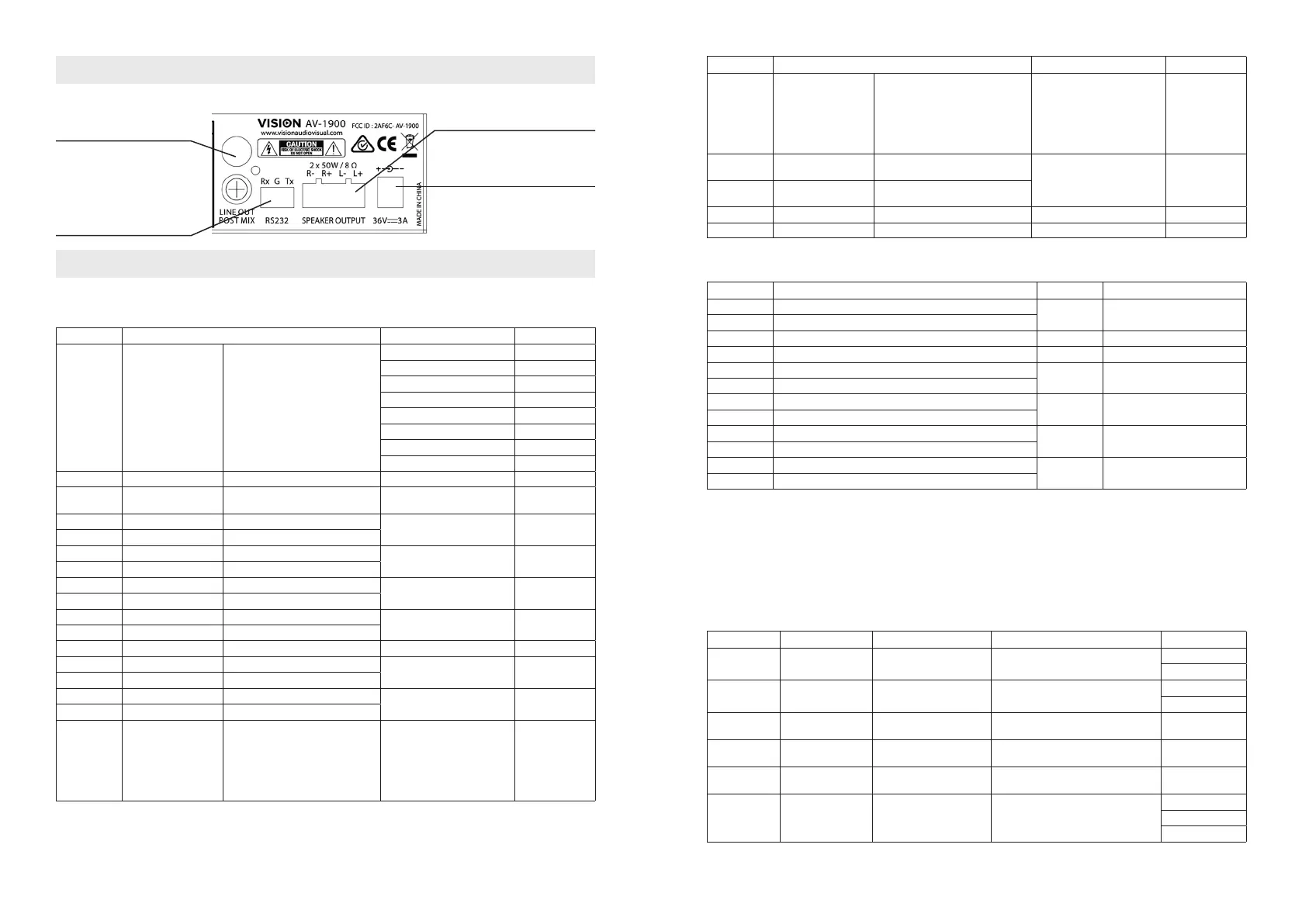

7 Uscite
Uscita a livello di linea 2-fono/RCA
Le regolazioni post-mix effettuate
sul pannello frontale si riflettono
su questa uscita
Phoenix a fili scoperti
Controllo RS-232
Nota: se l’amplificatore non
risponde ai comandi, provare a
scambiare i cavi di trasmettitore
e ricevitore
Phoenix a fili scoperti
Uscita altoparlante
Alimentazione
8 Codici RS-232
Baud rate: 9600K, bit di stop: 1, intervallo di risposta > 80 ms, nessuna cifra di controllo.
Formato comando ASCII: 97 45 45<CR><LF>
Codice ASCII Funzione Note Codici di ritorno
97 45 45 ON Attivazione/uscita da standby
In funzione 97 20 20 01
INGRESSO 1 Volume XX=00-14 97 31 31 XX
INGRESSO 2 Volume XX=00-14 97 32 32 XX
INGRESSO 3 Volume XX=00-14 97 33 33 XX
INGRESSO 4 Volume XX=00-14 97 34 34 XX
Volume master XX=00-14 97 23 23 XX
Bassi master XX=00-0E 97 24 24 XX
Alti master XX=00-0E 97 25 25 XX
97 46 46 OFF Spegnimento Standby 97 20 20 00
97 47 47 MUTE Attiva/disattiva modalità silenziosa
Modalità silenziosa OFF = 0
/ ON = 1
97 21 21 0X
97 43 43 INPUT1+ INGRESSO 1 Volume +
INGRESSO 1 Volume XX=00-14 97 31 31 XX
97 1B 1B INPUT1- INGRESSO 1 Volume -
97 1D 1D INPUT2+ INGRESSO 2 Volume +
INGRESSO 2 Volume XX=00-14 97 32 32 XX
97 4E 4E INPUT2- INGRESSO 2 Volume -
97 18 18 INPUT3+ INGRESSO 3 Volume +
INGRESSO 3 Volume XX=00-14 97 33 33 XX
97 1C 1C INPUT3- INGRESSO 3 Volume -
97 11 11 INPUT4+ INGRESSO 4 Volume +
INGRESSO 4 Volume XX=00-14 97 34 34 XX
97 10 10 INPUT4- INGRESSO 4 Volume -
97 1A 1A BT_RESET Disconnessione BT / 97 26 26 00
97 15 15 TREBLE+ Aumenta guadagno alti di +1 dB
Guadagno alti XX=00-0E 97 25 25 XX
97 17 17 TREBLE- Diminuisci guadagno alti di -1 dB
97 19 19 BASS+ Aumenta guadagno bassi di +1 dB
Bassi master XX=00-0E 97 24 24 XX
97 16 16 BASS- Diminuisci guadagno bassi di -1 dB
97 4A 4A RESET Ripristina tutto
97 23 23 0A
97 25 25 07
97 24 24 07
97 31 31 0A
97 32 32 0A
97 33 33 0A
97 34 34 0A
Codice ASCII Funzione Note Codici di ritorno
97 4B 4B MAXVOL Volume massimo
97 23 23 0A
97 25 25 07
97 24 24 07
97 31 31 0A
97 32 32 0A
97 33 33 0A
97 34 34 0A
97 40 40 VOL+
Volume + / disattiva modalità
silenziosa
Volume master XX=00-14 97 23 23 XX
97 44 44 VOL-
Volume - / disattiva modalità
silenziosa
97 12 12 AUTOSTANDBY ON STANDBY AUTOMATICO ON 97 28 28 01
97 13 13 AUTOSTANDBY OFF STANDBY AUTOMATICO OFF 97 28 28 00
Codici volume a indirizzo diretto
Codice ASCII Funzione Note Codici di ritorno
97 AX AX X =0-F Imposta volume master su 0-15
xx =01-14 97 23 23 xx
97 BX BX X =0-4 Imposta volume master su 16-20
97 CX CX X =0-E Imposta volume bassi su 0-14 xx =01 -0E 97 24 24 xx
97 DX DX X =0-E Imposta volume alti su to 0-14 xx =01 -0E 97 25 25 xx
97 EX EX X =0-F Imposta volume INGRESSO 1 su 0-15
xx =01-14 97 31 31 xx
97 FX FX X =0-4 Imposta volume INGRESSO 1 su 16-20
97 5X 5X X =0-F Imposta volume INGRESSO 2 su 0-15
xx =01-14 97 32 32 xx
97 0X 0X X =0-4 Imposta volume INGRESSO 2 su 16-20
97 6X 6X X =0-F Imposta volume INGRESSO 3 su 0-15
xx =01-14 97 33 33 xx
97 7X 7X X =0-4 Imposta volume INGRESSO 3 su 16-20
97 8X 8X X =0-F Imposta volume INGRESSO 4 su 0-15
xx =01-14 97 34 34 xx
97 9X 9X X =0-4 Imposta volume INGRESSO 4 su 16-20
Codici di ritorno
Risposta dall’unità = 97 ** ** 0X/XX 0A
Tutte le risposte terminano con \x0A o LineFeed
Esempi di comandi e risposte
» Power Query – Comando - \x97\x20\x20
» Power Query – Risposta – STANDBY 97 20 20 01\x0A = ON/nessun guasto
» Power Query – Risposta – STANDBY 97 20 20 00\x0A = OFF/standby
Codice ASCII Nome Funzione Note Codici di ritorno
97 20 20 STANDBY
Stato operativo
altoparlante
Altoparlante OFF/standby
Altoparlante ON/in funzione
97 20 20 00
97 20 20 01
97 21 21 MUTE
Modalità silenziosa ON/
OFF
Modalità silenziosa OFF = 0
Modalità silenziosa ON = 1
97 21 21 00
97 21 21 01
97 23 23 Master_GAIN_GET Guadagno volume
20 livelli in totale, XX=00-14 codice
esadecimale
97 23 23 XX
97 24 24
Master_B_GAIN_
GET
Guadagno bassi
14 livelli in totale, XX=00-0E codice
esadecimale
97 24 24 XX
97 25 25
Master_T_GAIN_
GET
Guadagno alti
14 livelli in totale, XX=00-0E codice
esadecimale
97 25 25 XX
97 26 26 BT_BIT Stato Bluetooth
BT disassociato = 0
BT associato, in pausa = 1
BT associato, in riproduzione = 2
97 26 26 00
97 26 26 01
97 26 26 02
