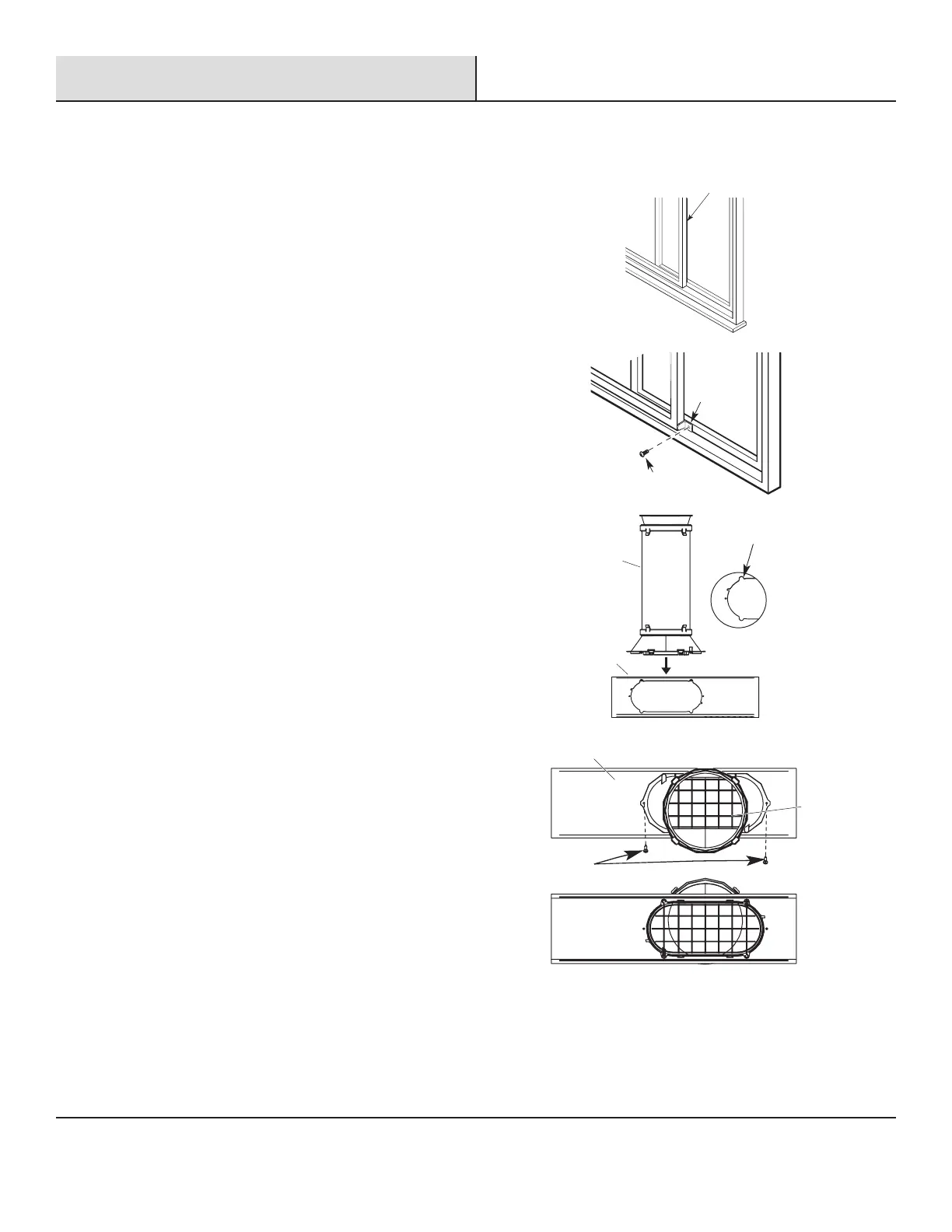

Installation (continued)
2b
Installing in Horizontal Sliding Window (continued)
□ Cut the foam seal (AA) (non-adhesive type) to the window
width.
□ Stuff the foam seal (AA) between the glass and the window
to prevent air and foreign objects from getting into the
room.
□ Install the window lock bracket (GG) with screw (FF) as
shown.
FF
GG
□ Align the tabs on the window exhaust adapter (DD) with the
slots (1) in the vent panel (HH). Insert the window exhaust
adapter into the opening in the vent panel.
1
DD
□ Insert the screw (FF) in the hole in the window exhaust
adapter (DD) to prevent the window exhaust adapter from
sliding out of the vent panel (HH) opening.
FF
To Next Page
