10
Installation (continued)
2a
Installing in Vertical Sliding Window (continued)

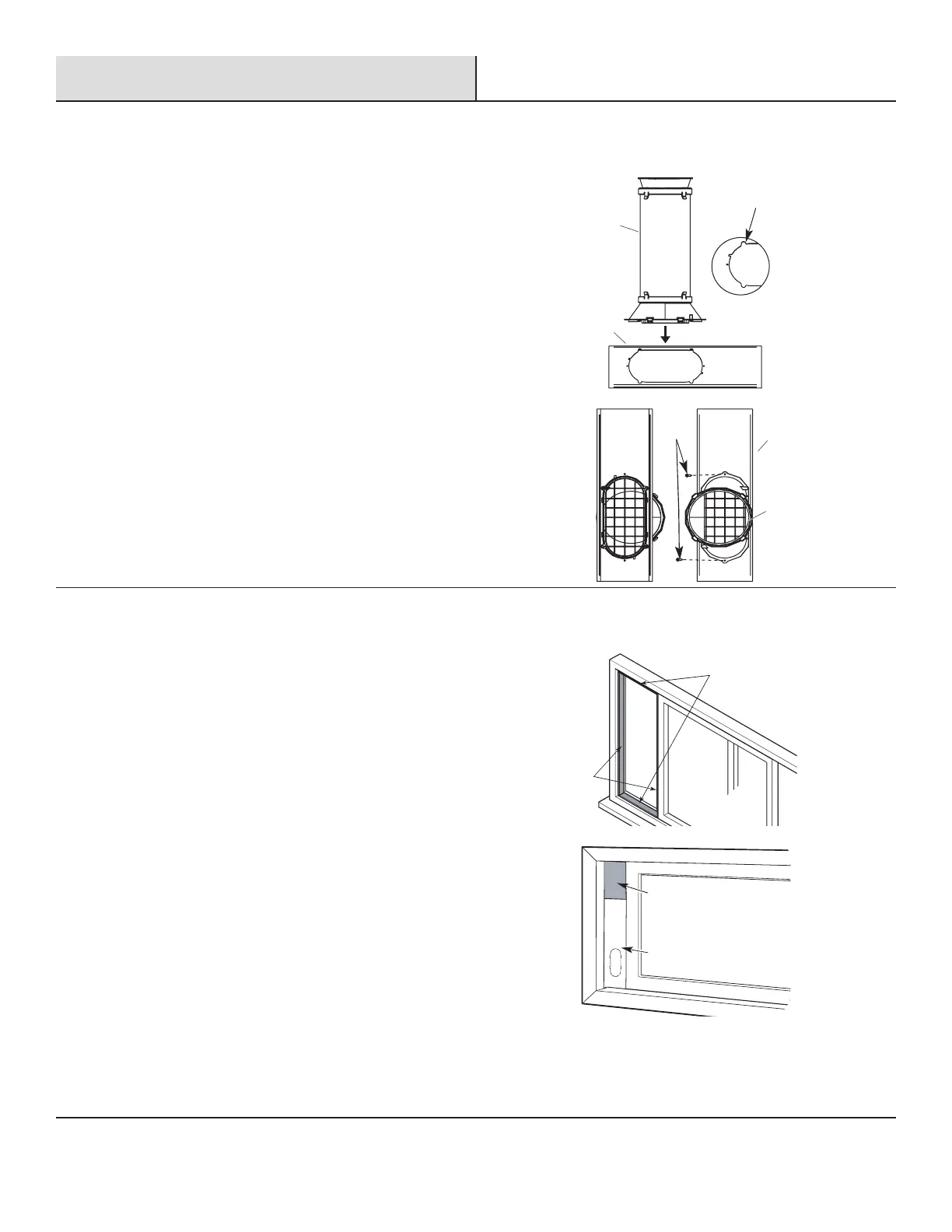

□ Align the tabs on the window exhaust adapter (DD) with the
slots (1) in the vent panel (HH). Insert the window exhaust
adapter (DD) into the opening in the vent panel (HH).
1
DD
□ Insert the screw (FF) in the hole in the window exhaust
adapter (DD) to prevent the window exhaust adapter from
sliding out of the vent panel (HH) opening.
FF
2b
Installing in Horizontal Sliding Window
□ Cut the foam seal (LL) (adhesive type-long) and foam seal
(MM) (adhesive type-shorter) to the proper length, and
attach it to the window sash and frame.
MM
□ Insert the vent panel assembly (HH), including extension
panels, if needed, into the window opening.
□ Extend the extension panels, if used.
HH
II, JJ or KK
To Next Page
