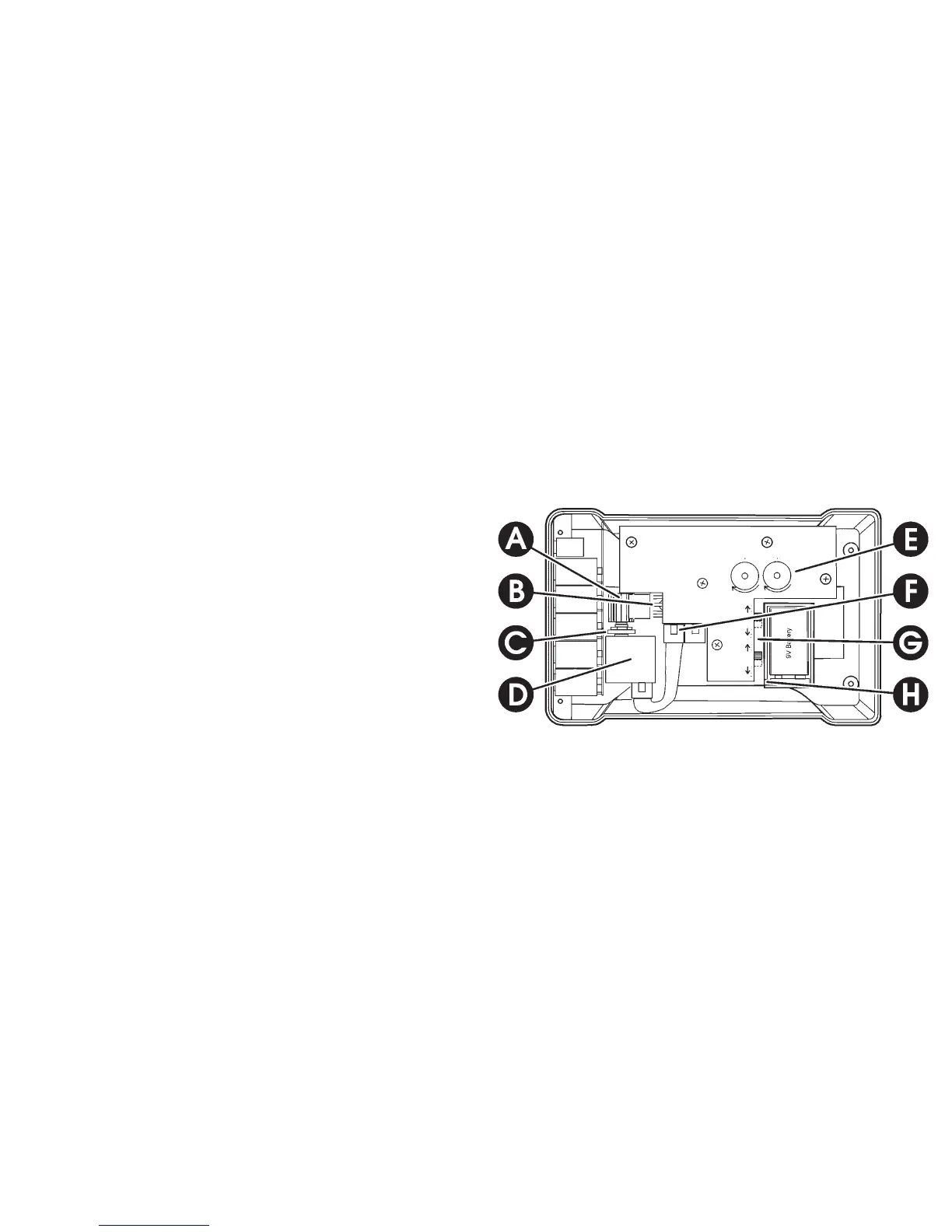

INTERNAL PEDAL ADJUSTMENTS
A RACK AND PINION GEAR
B RACK TENSION ADJUSTER SCREW
C QUAD POT RETAINING NUT
D QUAD POT ASSEMBLY
E GAIN CONTROLS
In active mode, these dial in a gain of between 1 and 5.
Each is independent, so the gains may be different on each input.
F QUAD POT CONNECTOR
G ACTIVE/PASSIVE SWITCHES
Both switches shown in active position.
H NOTCH FOR BATTERY CLIP WIRES
