about your SyStem:
A minimum 5 µ nominal pre-lter is recommended upstream (before) the UV system installation
point. As UV system efciencies are dictated by penetration of the UV light through the water
column, particulate matter within the water column could decrease the disinfection capacity, and
potentially create a harmful condition (ltration systems sold separately).
* To meet NSF/ANSI 55 Class A requirements, these systems must be used in conjunction
with Vitapur OWL UV sensor option.
* Class A rated ow at least equivalent to 40 mJ/cm at UV sensor alarm set point.
• Lamps must be replaced after 12 months of operation to ensure
proper disinfection of your water
• Clean Quartz Sleeve frequently for optimum performance
!
Power (green)
Lamp Failure (red)
!
Power (green)
Lamp Failure (red)
!
Power
(green)
Lamp Failure
(red)
!
Power (green)
Lamp Failure
(red)

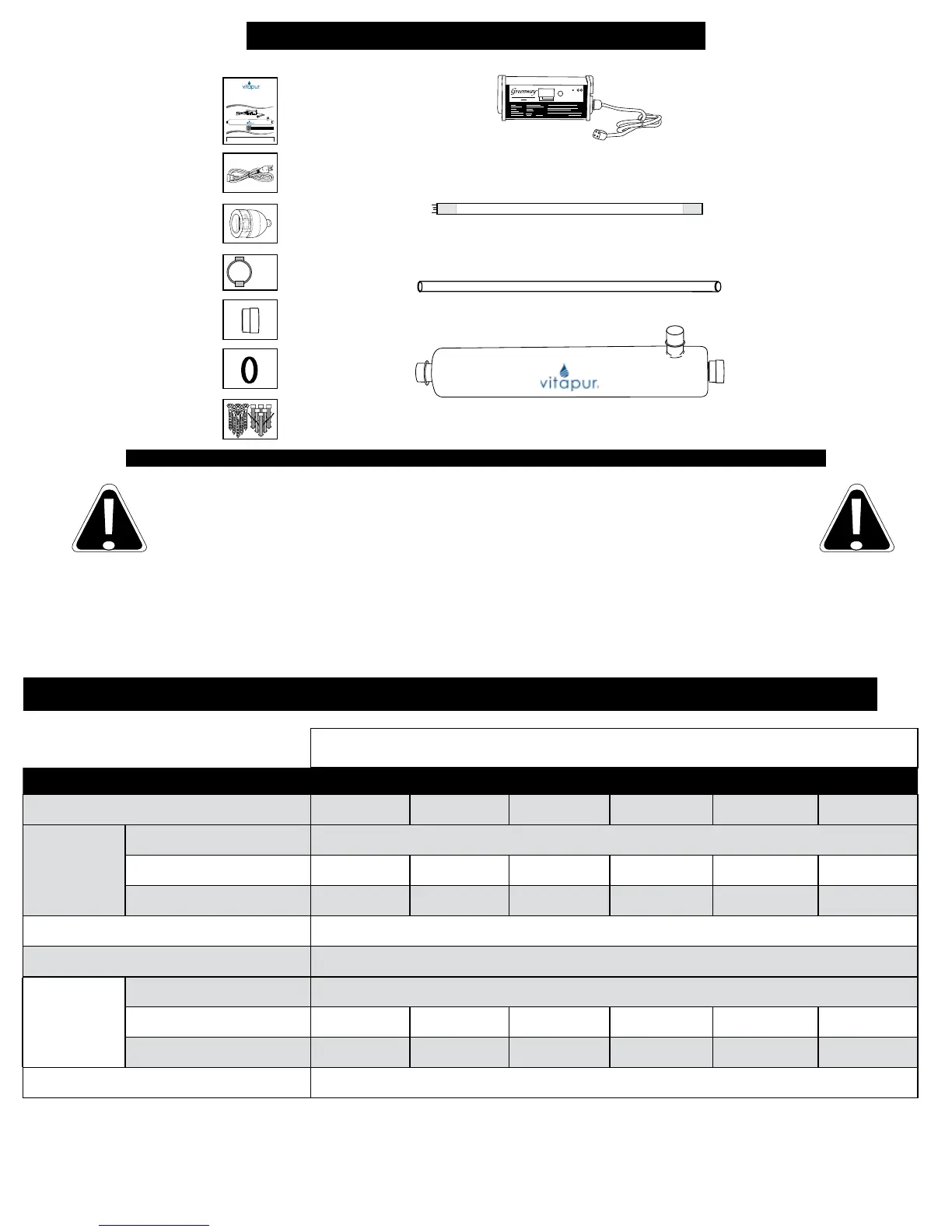

Owners Manual
Electronic Ballast
(Includes lamp connector)
UV Lamp
Quartz Sleeve
Stainless Steel UV Reaction Chamber
Power Cord
VuCap
UV Cylinder
Mounting
Clamps and
screws
Retaining Nut
Quartz Sleeve
Sealing O-Ring
Hardware Kit
(2 screws, 2 anchors)
!
Power (green)
Lamp Failure (red)
Before using UV System, read this manual and follow all safety rules and operating instructions.
ATTENTION : Avant d’utiliser le système UV, veuillez lire ce manuel et suivre toutes les règles de sécurité et instructions d’utilisation.
Installation Instructions & Owner’s Manual
Instructions d’installation et manuel de l’utilisateur
ADVANCED
ADVANCED
Ultraviolet (UV) Water Treatment System
Système de traitement de l’eau à l’ultraviolet (UV)
NSF-55 CLASS A / CLASSE A NSF-55: VUV-S375MA, VUV-S645MA, VUV-S940MA,
VUV-H375MA, VUV-H645MA, VUV-H940MA
NSF-55 CLASS B / CLASSE B NSF-55: VUV-S375B, VUV-S375MB, VUV-S645B, VUV-
S645MB, VUV-S940B, VUV-S940MB, VUV-H375B, VUV-H375MB, VUV-H645B, VUV-
H645MB, VUV-H940B, VUV-H940MB
Systems tested and certified by NSF
International against NSF/ANSI Standard
55 for disinfection performance.
Testé et certifié par la NSF International aux
conditions de la norme 55 de NSF/ANSI
pour des performances de désinfection.
x2
uv SyStem wIthout monItorIng port
Specifications:
NSF/ASNI Standard 55 Class A
Model number:
VUV-S375MA VUV-S645MA VUV-S940MA VUV-H375MA VUV-H645MA VUV-H940MA
Flow Rate GPM US (LPM) (I)
2.9 (11.3) 4.9 (18.7) 7.5 (28.5) 6.4 (24.3) 10.6 (40.2) 16.1 (61.3)
Dimen-
sions
Ballast
8” x 3” x 2” (20.3 cm x 7.6 cm x 5.1 cm)
Chamber Diameter
3.5” (8.9 cm) 3.5” (8.9 cm) 3.5” (8.9 cm) 3.5” (8.9 cm) 3.5” (8.9 cm) 3.5” (8.9 cm)
Chamber Length
17.25” (43.8 cm) 27.88” (70.8 cm) 39.5” (100.3 cm) 17.25” (43.8 cm) 27.88” (70.8 cm) 39.5” (100.3 cm)
I/O Port Size
3/4” FNPT - 1.0” MNPT
System Maximum Operating Pressure 125psi (862 kPa)
Electrical
Voltage
100-240, 50/60Hz
Power Consumption (W)
21 35 46 42 67 98
Lamp Watts (W)
17 30 40 35 60 90
Chamber Material
304SS
fIgure 2
