33
automatically start restoring the default settings and display dEF-00 after pressing the
"i" key for more than 2 seconds for confirmation. After restoring the default, it will
automatically exit and return to the normal display interface.

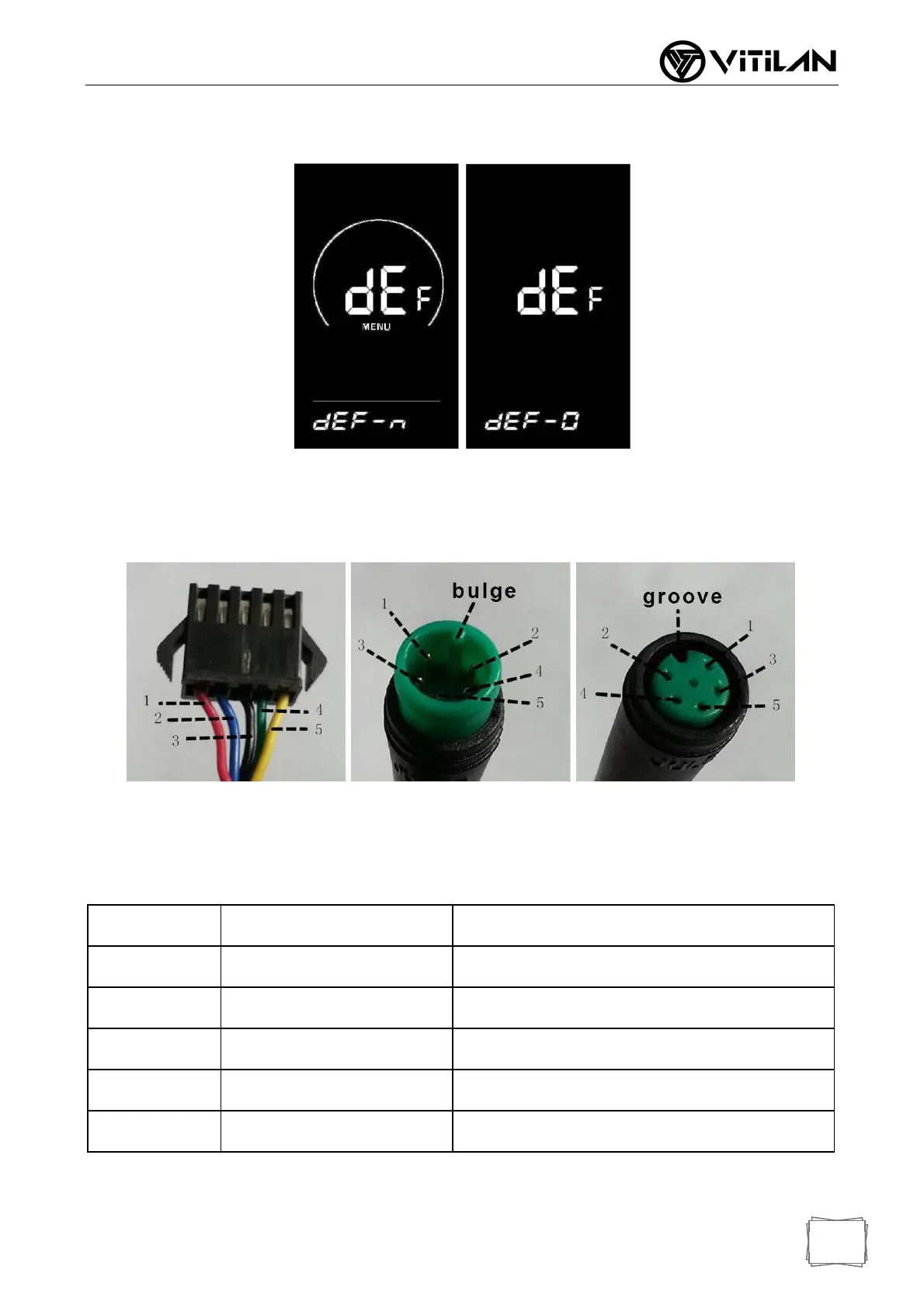

◆ Lead Connection Diagram
Standard connector wire sequence
Connectingend
withControllerInstrumentOutletEndSwitchWiring
Table: Standard Connector Line Sequence Table
Line Color Functions
1
Red (VCC)
+
2
Blue(Kp)
Lock
3
Black(GND)
-
4
Green(RX)
RX
5
Yellow(TX)
TX
■ The leads of some products use waterproof connectors, and users cannot see
the color of the leads in the wiring harness.
