Page 13 of 81
3 vLoc3-Pro Receiver
5 Bluetooth status
6 GPS status
7 Speaker volume setting
8 Battery type and remaining charge

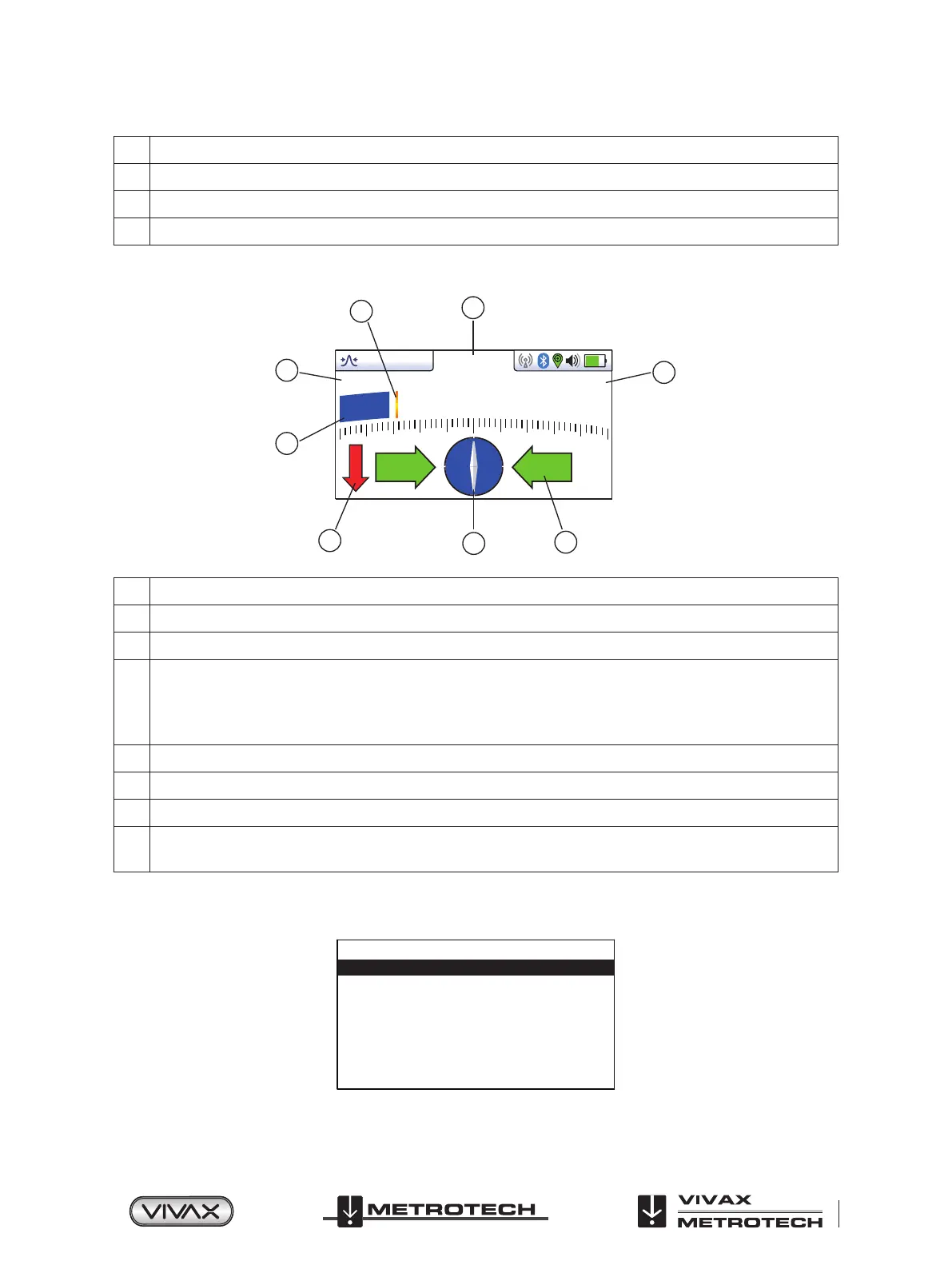

The Classic Screen has all the functions normally seen on a classic cable locator. The main functions being:
0.39m
18.3
17dB 116mA
SD-USA
3
2
1
4
5
6
7
8
1 Percentage signal strength (mirrors the bar graph setting)
2 Peak level indicator
3 Gain setting
4
Bar graph signal strength indicator (changes colour depending on distortion level)
Green: - low distortion
Blue: - Minor distortion, proceed with care
Red: - Excessive distortion, treat all data and measurements with caution
5 Signal Direction forward/back arrows (only active with Signal Direction frequencies)
6 Compass line direction indicator (turns blue when aligned with target line)
7 Left/Right direction to target line indicators
8
Frequency selection (flashing frequency indicates frequency selection is not valid for this screen. Choose another
frequency)
Tip:
When in a locate screen, pressing and holding the “f” key will bring up the frequency table.
Radio
SD-EUR
8kHz
8KFF
33kHz
83kHz
200kHz
Use the “+” and “- “keys to navigate quickly to the desired frequency. Press the “i” key to select a highlighted choice and return
to the locate screen.
