Vivax FS-40WTB User Manual

VIVAX ENG
6

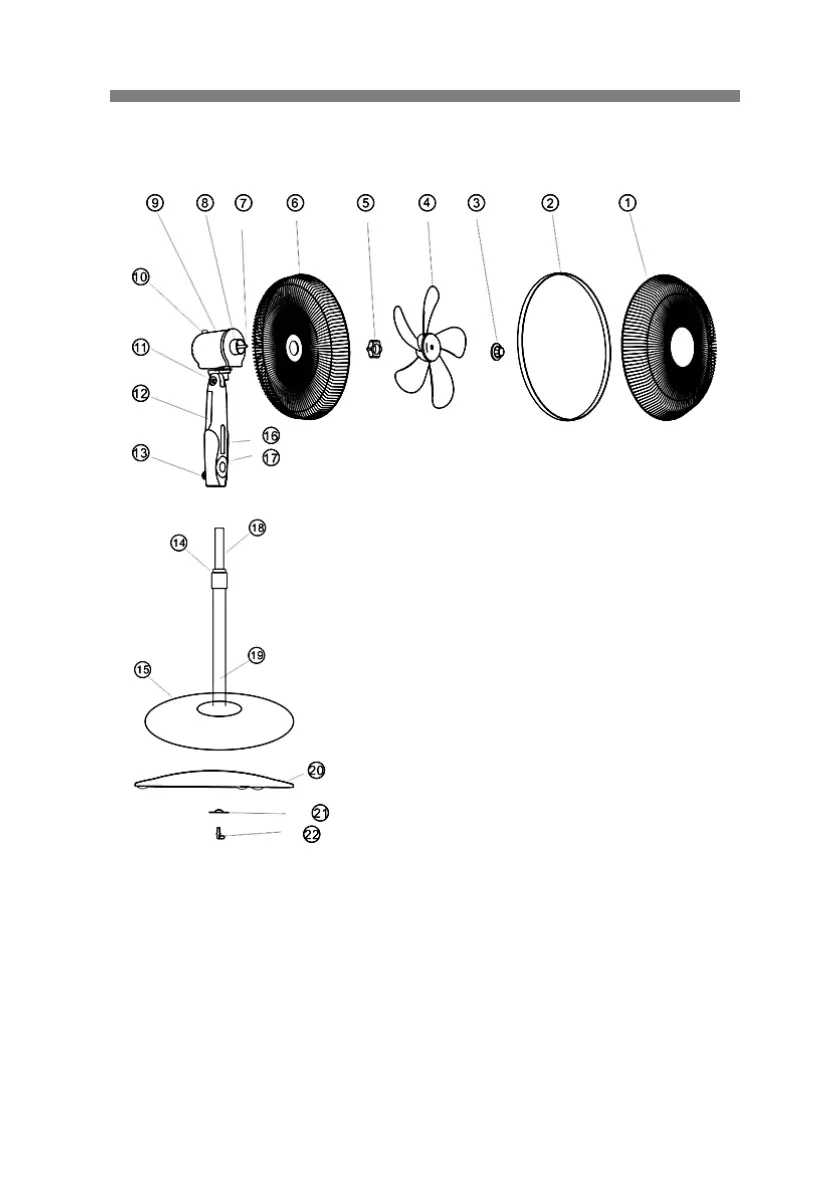

MAIN PARTS
1. Front grill cover
2. Grill ring
3. Fastener nut for Fan blade
4. Fan blade (3 or 5 blades)
5. Fastener nut for back grill
6. Back grill cover
7. Output motor shaft
8. Motor shaft pin
9. Cabinet with motor
10. Swing button
11. Connection pole
12. Cabinet with control panel
13. Locknut for cabinet
14. Locknut for lifting
15. Base Stand
16. LED diodes panel
17. Control buttons (ON/OFF and
Timer)
18. Lift tube
19. Stand post tube
20. Heavy base
21. Press plate
22. Bend bolt

Vivax FS-40WTB Specifications

General

Brand	Vivax
Model	FS-40WTB
Category	Fan
Language	English
