ENG VIVAX
7
ASSEMBLY AND INSTALLATION
First step: Assemble support parts
1. Assemble and connect the base with assembly Lift Tube and Stand post Tube.
2. Open the casing and take out base, then assemble the tube and cover of up-down
tube and support tube.
3. Aim the hole on the bottom of support tube of support at the holes on the base and
tighten the screws.
4. Slip decorative cover to base alongside the support tube (if exist) and adjust up-
down tube to height, then rotate tighten the external joint.
Second step: Assemble fan blade
1. Assemble guard cover and shroud ring
a. Tighten back cover enclosure to the motor by fastener (Pay attention to
direction of rotation).
b. Place joint of shroud ring downwards and cover the deep groove of shroud
ring to the circle side ring of back.
c. Cover enclosure, then tighten the bolts at the position of joint properly by nut.

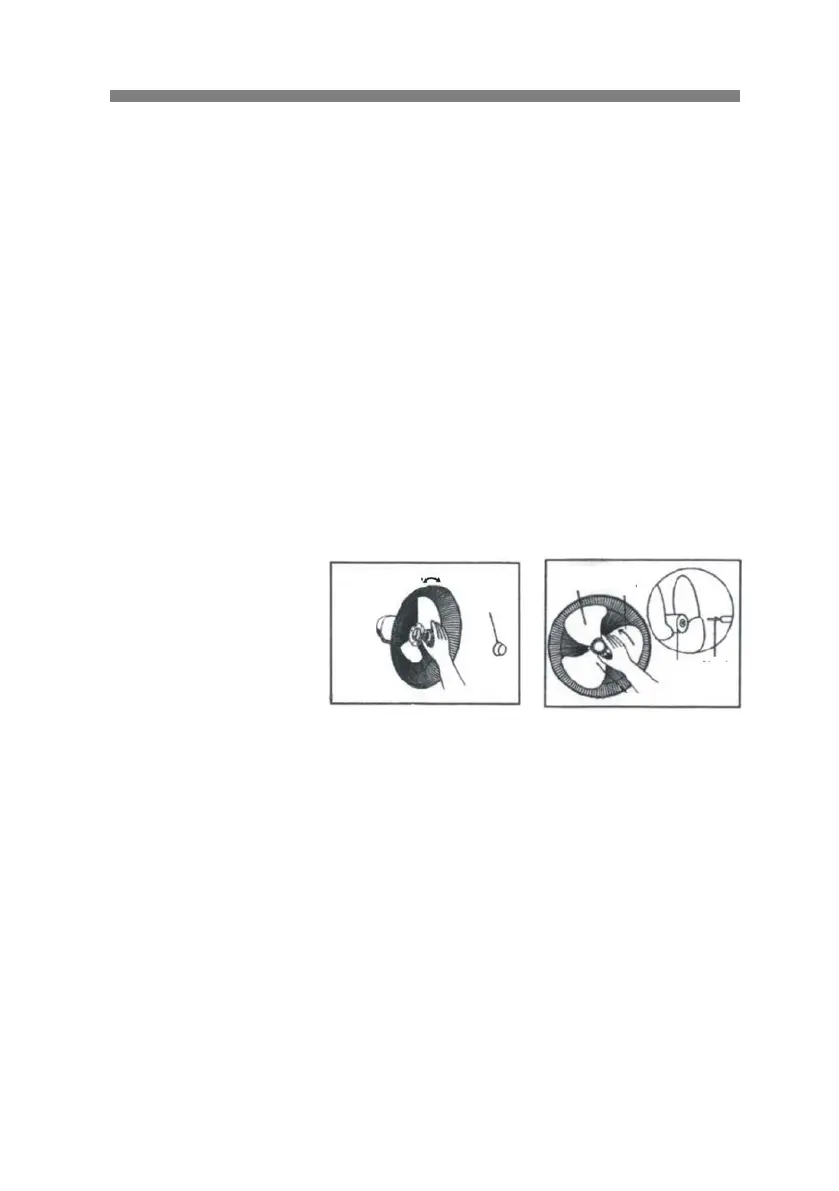

2. Install fan blade
a.
While installing
fan blade,
please wedge
groove on the
back of fan
blade on
spacer pin of
the output shaft
of motor,
b.
Tighten the fixing nut of fan blade anticlockwise.
3. Assemble front cover
a. Insert the circle of front cover into the groove of shroud ring, which has been
fixed to the back cover.
b. Finally fasten the bolts into screw of the joint of shroud ring.
FUNCTION INTRODUCTION
I. Before using the fan, make sure that it is on a flat and stable surface. Damage
may occur if the fan is placed on an incline or decline.
II. Insert the plug directly into a standard AC socket-outlet. Be sure that the plug
fits tightly into the socket-outlet.
1. Setting of wind direction
The angle of the fan head is adjustable, it can be facing upwards and downwards by
slightly lift or press the motor cover cabinet.
Tighten Loose
