STEP 4: Mounting the TV (Continued)

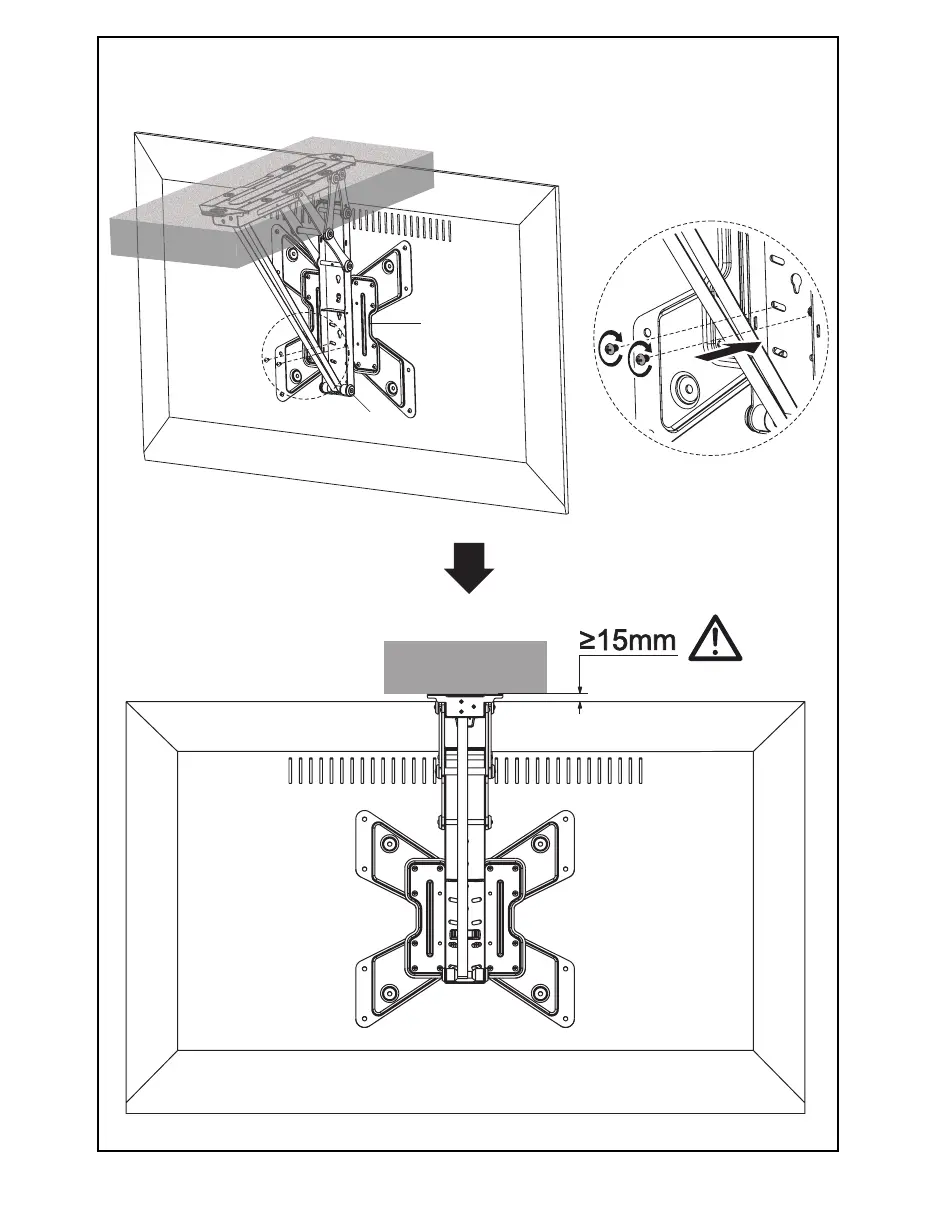

Using screws previously removed from step 2, fasten VESA Plate (B) to Mount (A).
NOTE: Clearance between the ceiling and top edge of TV should be no less than 15mm when TV
is in the fully lowered position
B
A
