Vivo MOUNT-E-UP80D - Installation Guide: Assembly Steps; Mounting Plate and Shelf Attachment; Cabinet Installation and Remote Pairing

4
STEP 3
STEP 4

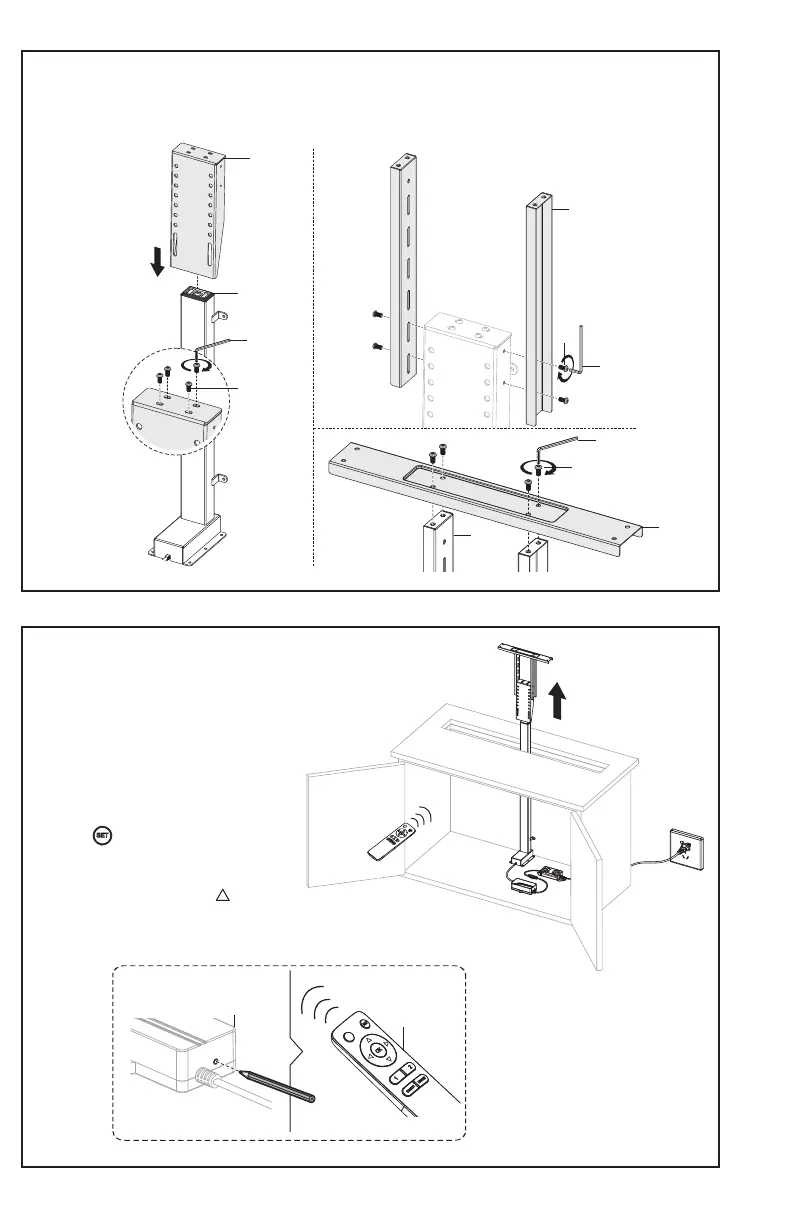

Slide Mounting Plate (B) onto Motorized Li (A) and secure using M6x12mm Screws (S-C) and
4mm Allen Wrench (T-A) . Connect Shelf Supports (C) to the sides of Motorized Li (A) using
M6x12mm Screws (S-C) and 4mm Allen Wrench (T-A). Attach Shelf (D) to top of Shelf Supports
(C) using M6x12mm Screws (S-C) and 4mm Allen Wrench (T-A).
Place the li assembly inside of your
custom cabinetry and plug into nearby
outlet.
Press the side button on Control Unit
(G) using a pencil or small tool. The
li will beep once, indicating the li
is ready to be paired with the Remote
(K).
Press the button on the remote.
Remote will beep for 10 seconds, and
then emit one final beep to indicate
successful paring. Press the arrow to
raise the li.
