Vivo MOUNT-E-UP80D - Installation Guide: Securing and Mounting; Securing Lift Assembly in Cabinet; Attaching TV Bracket to Plate

5

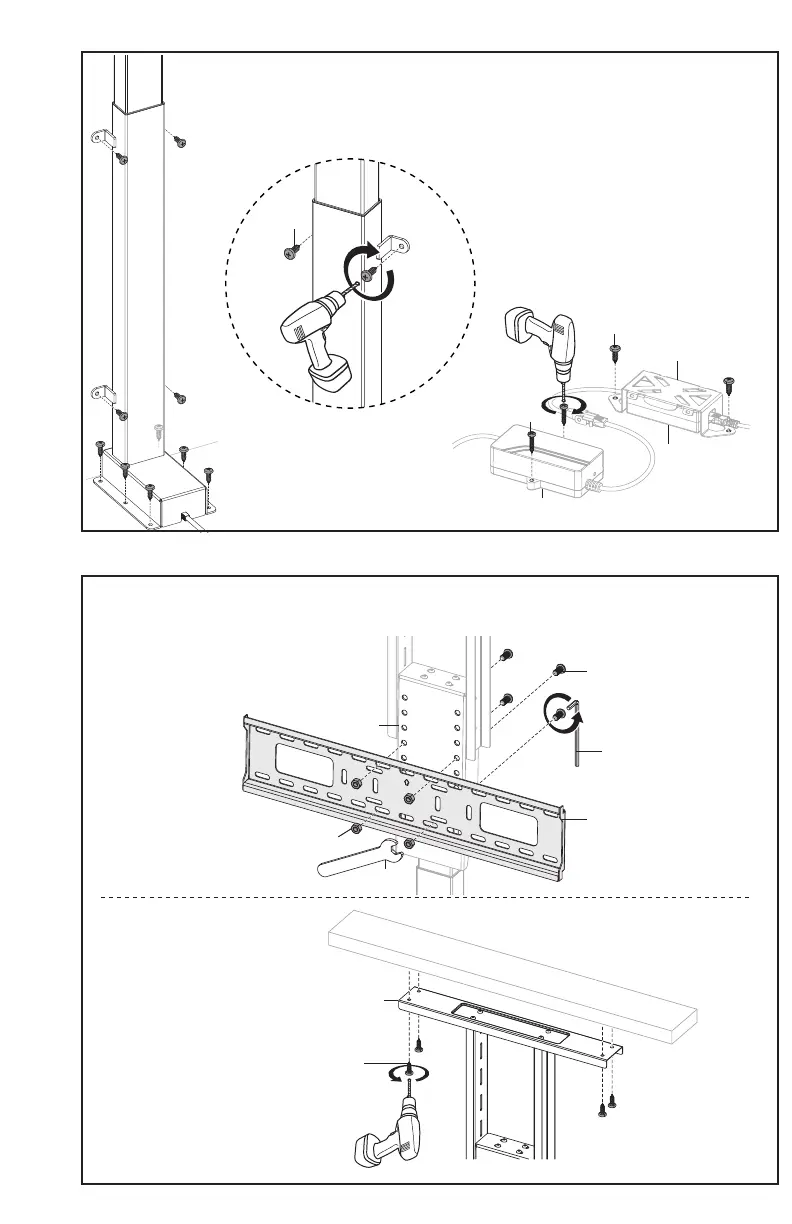

STEP 5
Secure li assembly to inside of cabinet by installing ST5.5x16mm Screws (S-A)
into the tabs on li using a drill. Secure Control Unit (G) and AC Adapter with
Cover (H, I) using ST4.2x20mm Screws (S-B) and ST5.5x16mm Screws (S-A) and
a drill.
STEP 6
Attach TV Bracket (E) to Mounting Plate (B) using M10x20mm Screws (S-D), M10 Nuts (S-E), 6mm
Allen Wrench (T-B), and 10mm Wrench (T-C).
Secure custom cabinet cutout
to Shelf (D) using ST5.5x16mm
Screws (S-A) and a drill.
S-A
S-A
I
H
G
E
T-B
S-E
T-C
S-D
B
S-B
S-A
D
