Vivo MOUNT-E-UP80D - Installation Guide: Final TV Mounting; Installing VESA Brackets to TV; Mounting TV onto Bracket

6
STEP 7
STEP 8

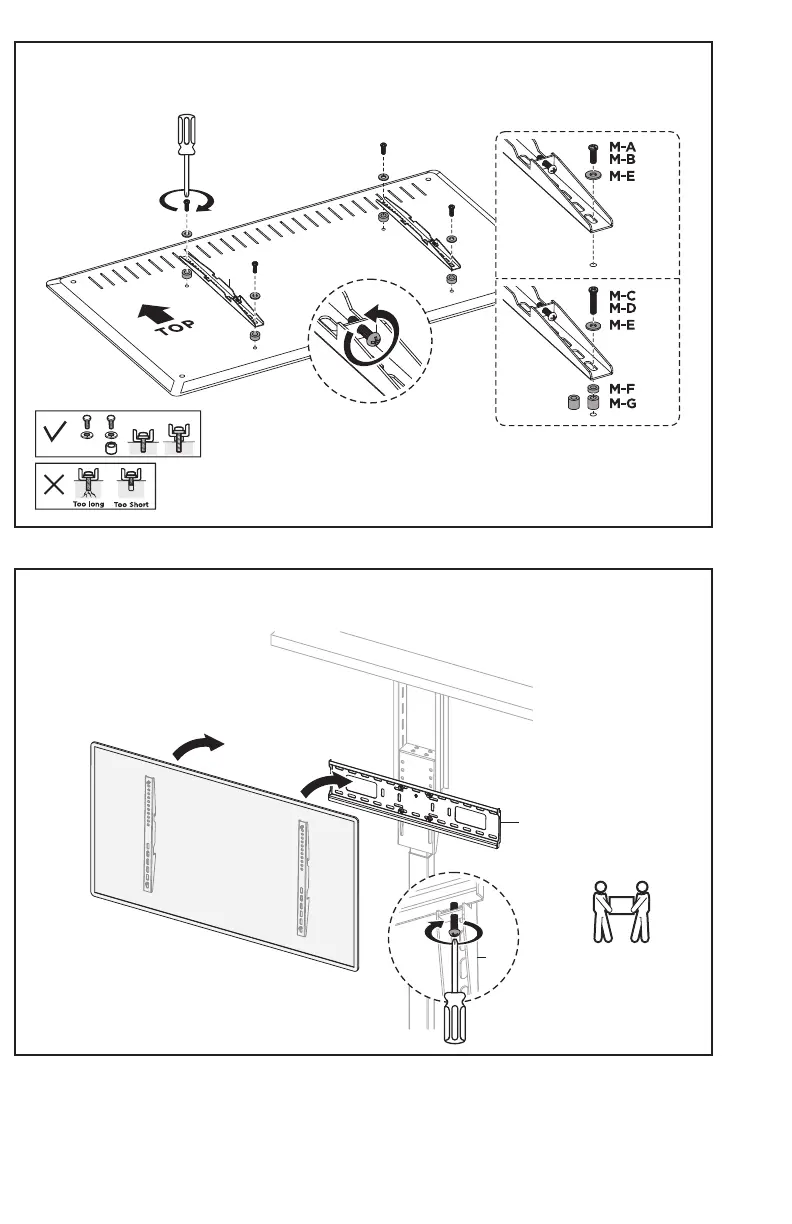

Install VESA Brackets (F) to TV using appropriate Screws (M-A, M-B, M-C, M-D), M8 Washers (M-E),
Spacers (M-F, M-G) and a Phillips screwdriver.
Place TV with VESA Brackets (F) onto TV Bracket (E). Tighten set screw on VESA Brackets (F) with
Phillips screwdriver to secure.
NOTE:
For heavier TV’s, it is
recommended to have a
second person assist with
placing the TV.
F
E
F
