Optional conguration

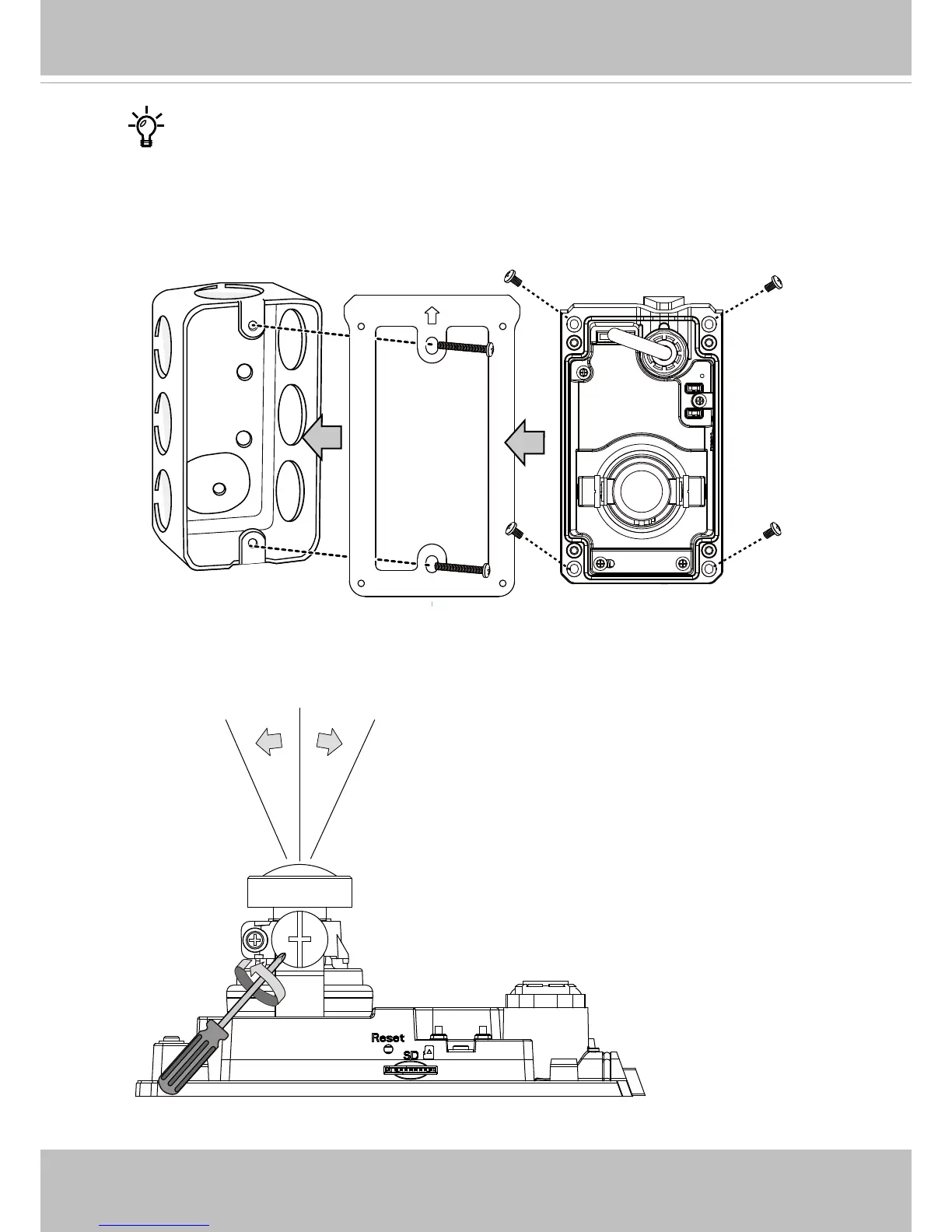

You can also mount the camera to a 1-7/8" single gang box. Secure a mounting plate
to the gang box using the included pan head screws, and then install the camera to the
mounting plate as shown below.
You can loosen the retention screws on the sides of lens module to tilt the shooting angle if
the need should arise.
25° 25°
