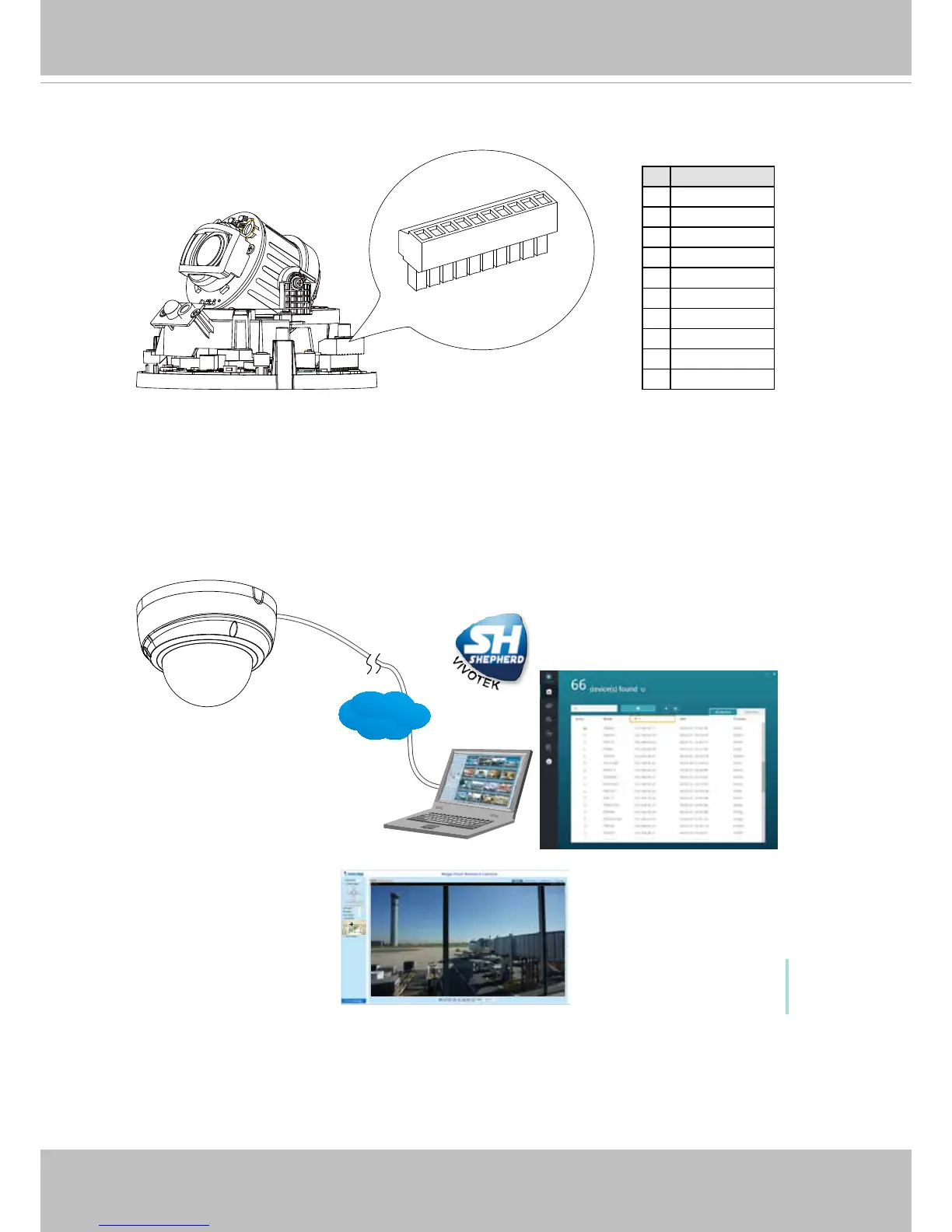

5. If external I/O or power connections are preferred, use the terminal block to connect. The
pinouts is listed below.
1
2
3
4
5
6
7
8
9
10
# Name
1 EXT_MIC_N
2 EXT_MIC_P
3 Audio_out-
4 Audio_out+
5 DI-
6 DI+
7 DO-
8 DO+ (5V)
9 12V DC-_IN
10 12V DC+_IN
Browser
LAN
Shepherd
6. Please visit VIVOTEK’s website to Install the "Shepherd” software utility. The program
will search for VIVOTEK Video Receivers, Video Servers or Network Cameras on the
same LAN.
Double-click on the camera’s MAC address to open a web console with the camera.
