Vivotek FD9167-H User Manual

VIVOTEK
146 - User's Manual
Applications > Package management - a.k.a., VADP (VIVOTEK
Application Development Platform)
Users can store and execute VIVOTEK's or 3rd-party software modules onto the camera's
flash memory or SD card. These software modules can apply in video analysis for
intelligent video applications such as license plate recognition, object counting, or as an
agent for edge recording, etc.
• Once the software package is successfully uploaded, the module conguration (vadp.
xml) information is displayed. When uploading a module, the camera will examine
whether the module fits the predefined VADP requirements. Please contact our
technical support or the vendor of your 3rd-party module for the parameters contained
within.
• Users can also run VIVOTEK's VADP packages as a means to access updated
functionality instead of replacing the entire rmware.
• Note that for some cameras the flash is too small to hold VADP packages. These
cameras will have its "Save to SD card" checkbox selected and grayed-out for all time.
• The le system of SD card (FAT32) does not support soft (symbolic) link. It will return
failure if your module tries to create soft links on SD card.

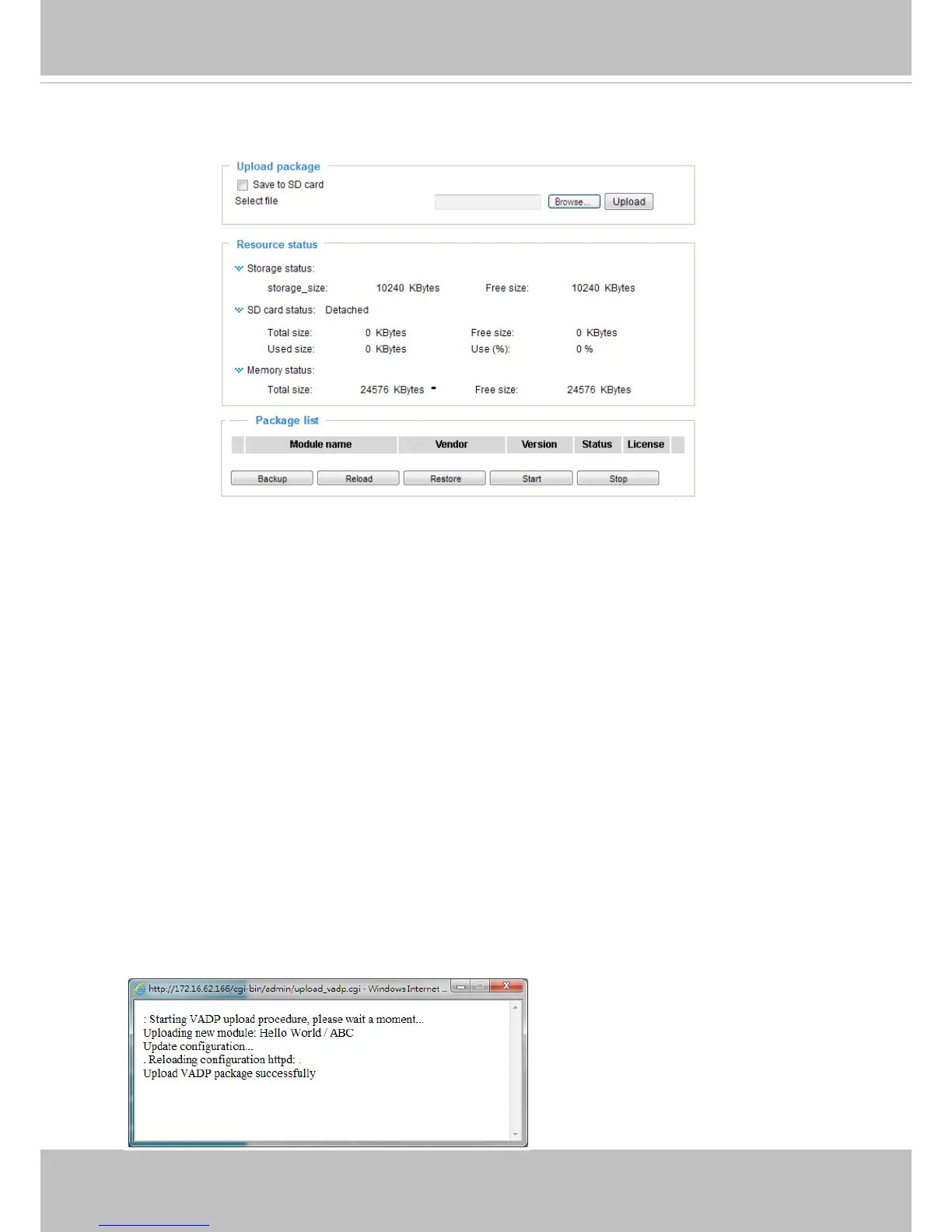

To utilize a software module, acquire the software package and click Browse and Upload
buttons. The screen message for a successful upload is shown below:

Vivotek FD9167-H Specifications

General

Resolution	1920 x 1080
Focal Length	2.8 mm
Minimum Illumination (B/W)	0.01 Lux
Minimum Illumination (IR On)	0 Lux
Video Compression	H.265, H.264, MJPEG
Maximum Frame Rate	30 fps
Audio Compression	G.711, G.726
Audio Input	Built-in Microphone
Local Storage	MicroSD/SDHC/SDXC Card Slot
Ingress Protection	IP66
Lens Type	Fixed
Day/Night	Yes
IR Illuminators	Built-in
Network Interface	10/100 Mbps Ethernet
Protocols	IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, NTP, UpnP, SNMP
Security	User authentication, IP address filtering
Power Supply	PoE (IEEE 802.3af), 12V DC
Power Consumption	5.5W
Weight	600g
Image Sensor	1/2.8" Progressive Scan CMOS
Shutter Time	1/5 sec to 1/32, 000 sec
Minimum Illumination (Color)	0.05 lux
