VIVOTEK
User's Manual - 25

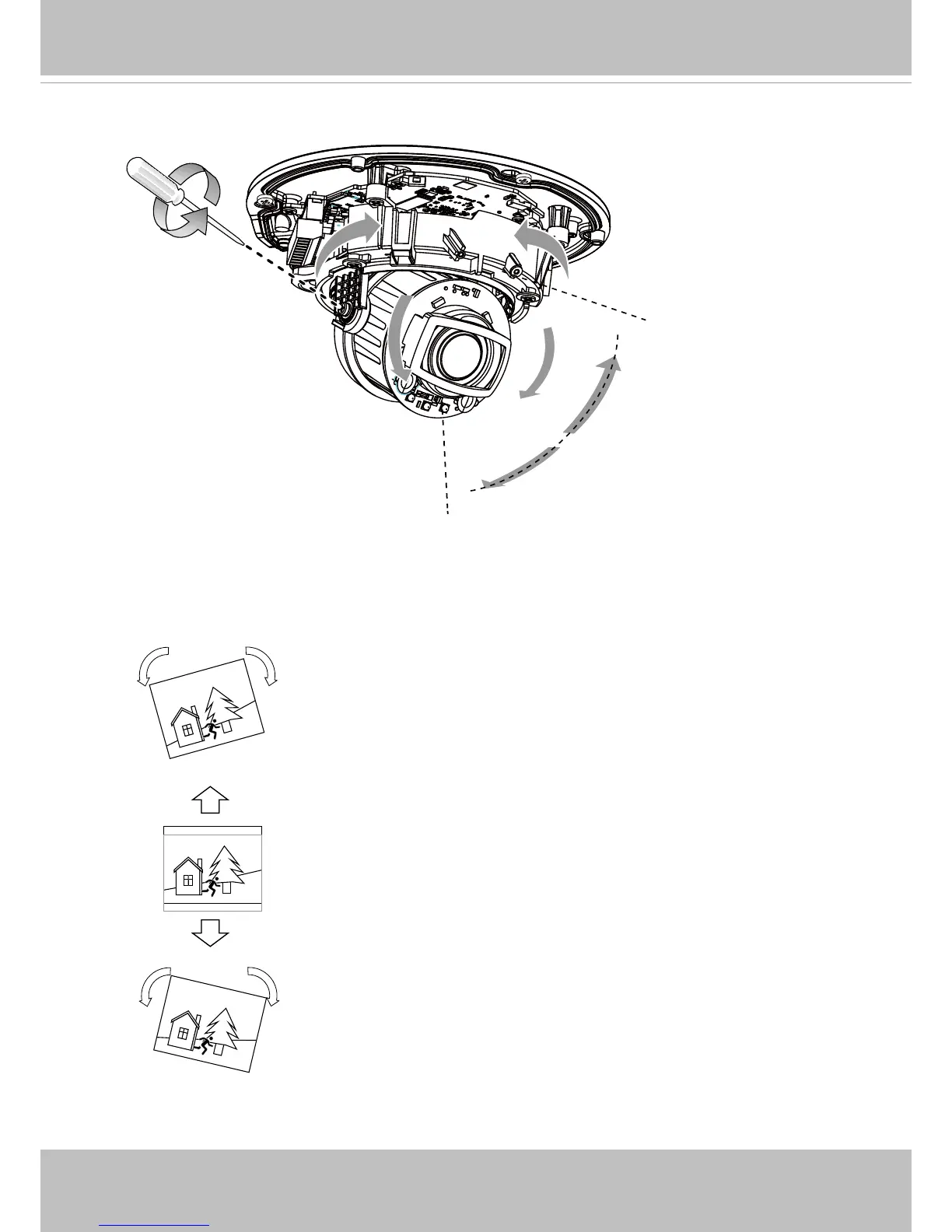

14. According to the live view, adjust the shooting direction.
13. Loosen, but not completely remove, the retention screws on the camera to adjust the
camera’s shooting direction. You can pan, tilt, or rotate the camera lens module.
350°
350°
60°
15. Tighten the retention screws when you are statisfied with the field of view.
