Vivotek FD9167-HT-v2 User Manual

VIVOTEK
User's Manual - 13
I/O wires
Tabs

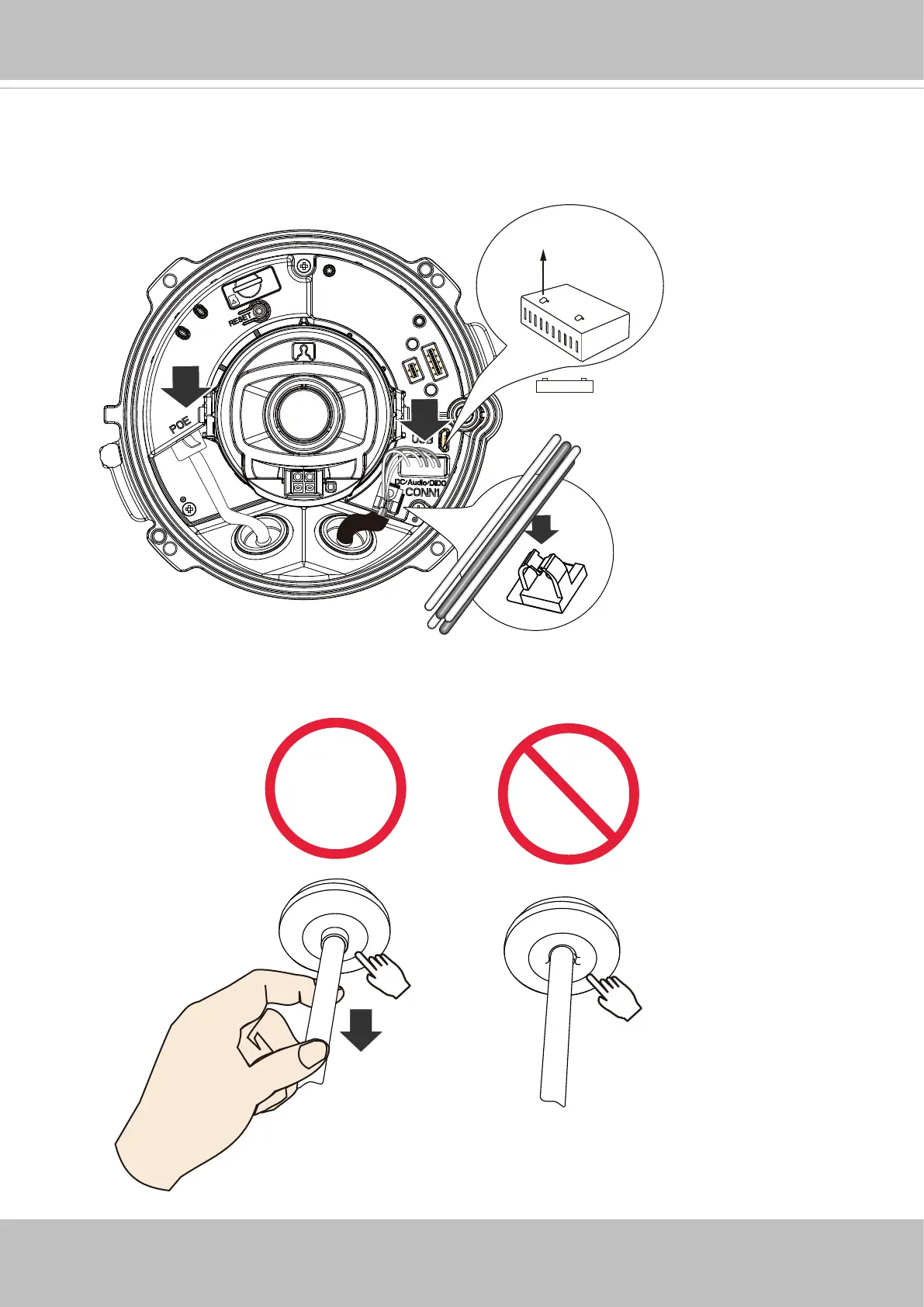

9. The I/O combo cable comes with a pre-installed seal. Install the cable to the opening and
place I/O wires in the cable clip. Note the orientation of the I/O pin headers.
Connect the I/O pin headers and the Ethernet connector to the camera.
10. When installing the silicon grommet, make sure the cable is slightly pulled back to the
outside. Do not leave the rim of the seal jammed in the inside of the seal.
