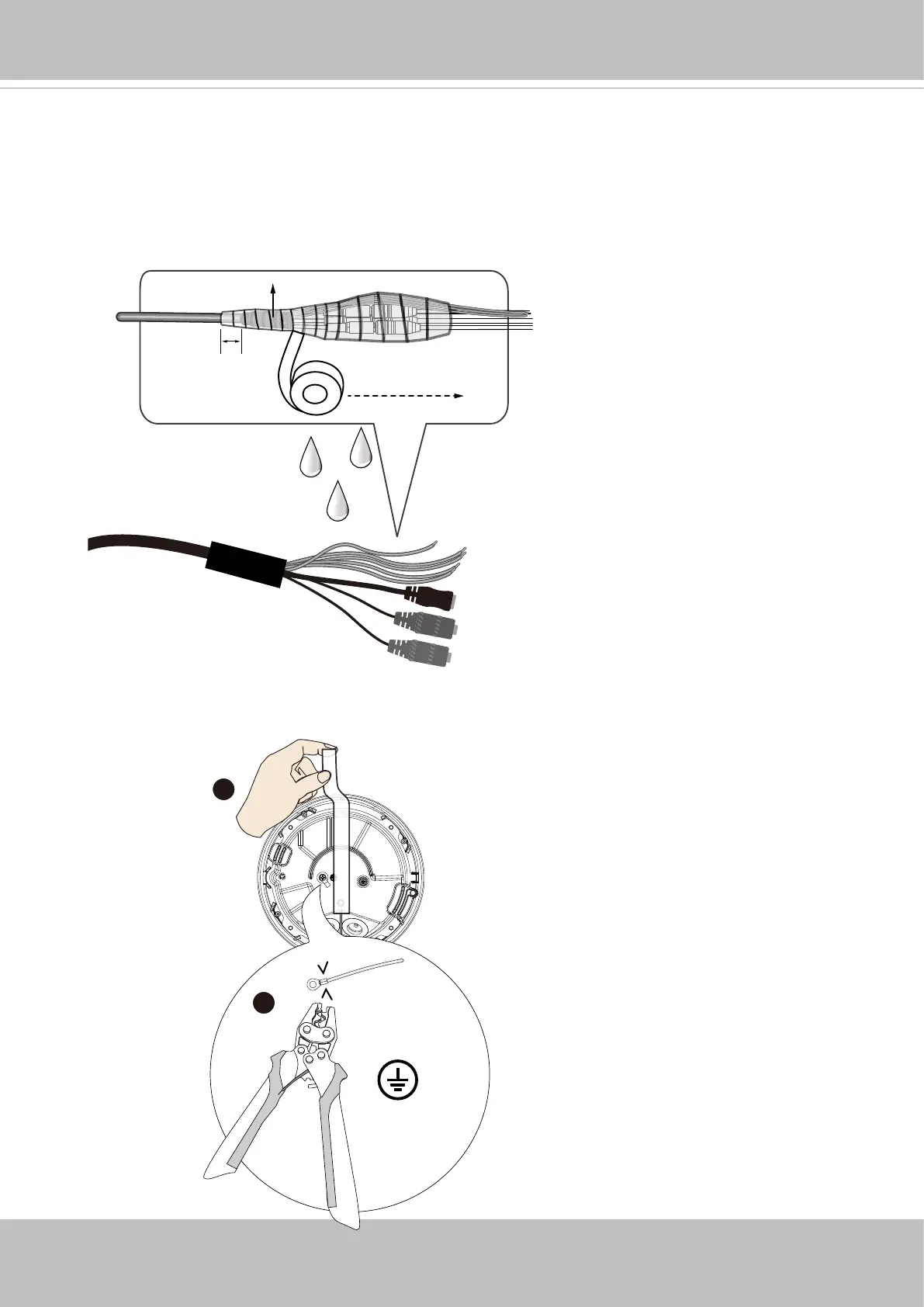

Cable molding
Layer - Self-fusing tape
or electric tape
2cm
1. Stretch the waterproof tape by twice its length and
wind around the cables.
2. The tape should overlap the cable joints by 20mm.
3. All connectors, whether they are used or not,
should be waterproof.
13. All cabling joints on the outside of the camera must be properly sealed for
waterproong.
18 AWG min.
3.5mm screw mm.
Green & Yellow wires
Crimping plier
Remove seal
* Use knurled washers
14. Remove the seal on the dehumidier breathe hole from the back of the camera. Use a
crimping plier to connect a grounding wire to the ground screw.
To Next Page
