User's Manual - 11

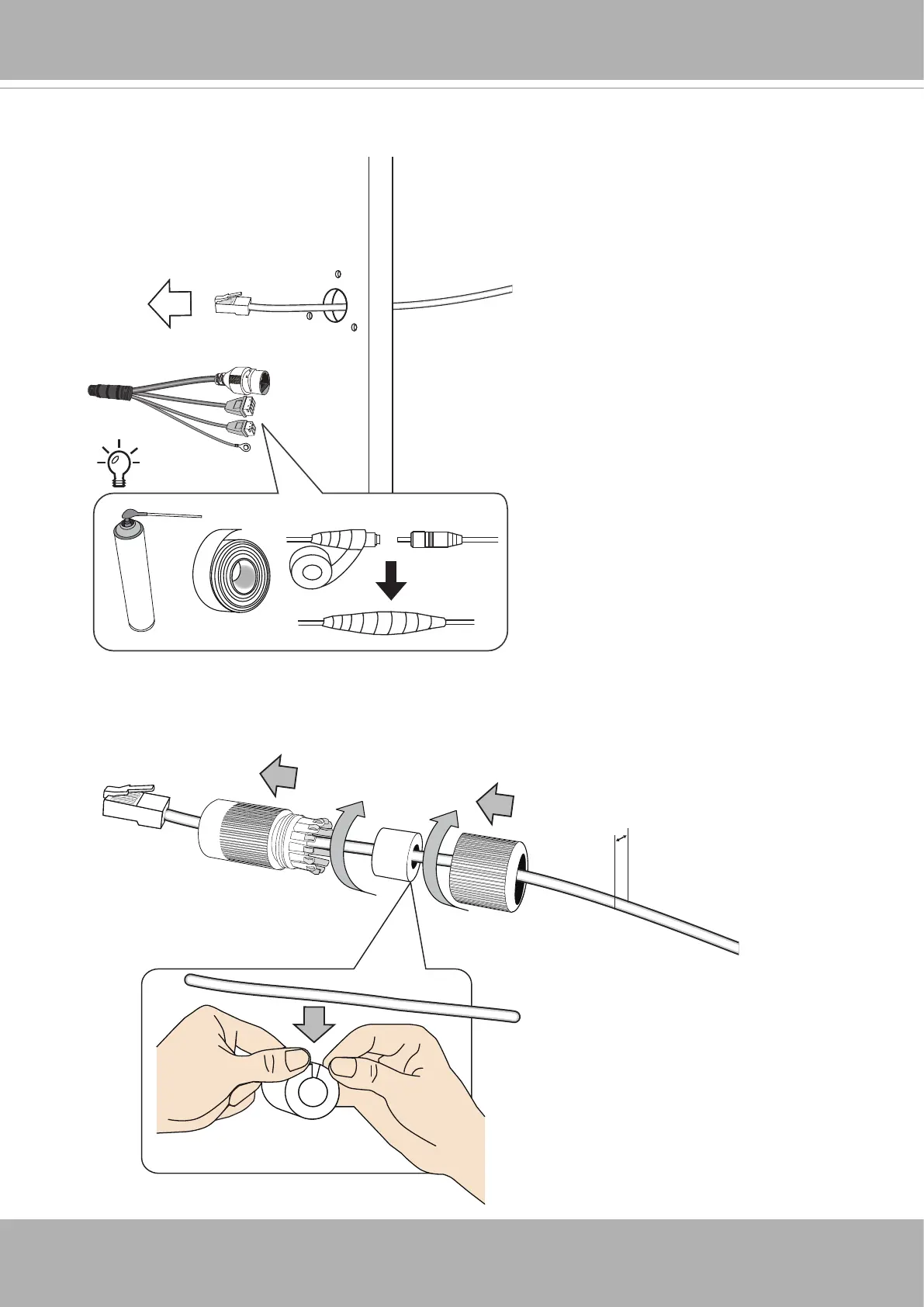

6. If external wiring is made, make sure the connections are waterproof by applying putties
or tapes to seal the connections.
5.5 ~ 6.4mm
7. Pass an Ethernet cable through the waterproof cable gland components, and through
the rubber seal as shown below. Connect the Ethernet cable to the camera's RJ45
connector.
