Vivotek FD9371-HTV User Manual

VIVOTEK
6 - User's Manual
Ethernet 10/100 RJ45 Plug
Some of the sufx syntax used in model naming are listed below:
E w/ heater for extreme weather
Fx Focal length w/ number
T w/ Remote focus lens
R w/ PoE repeater
H w/ High Dynamic Range functionality

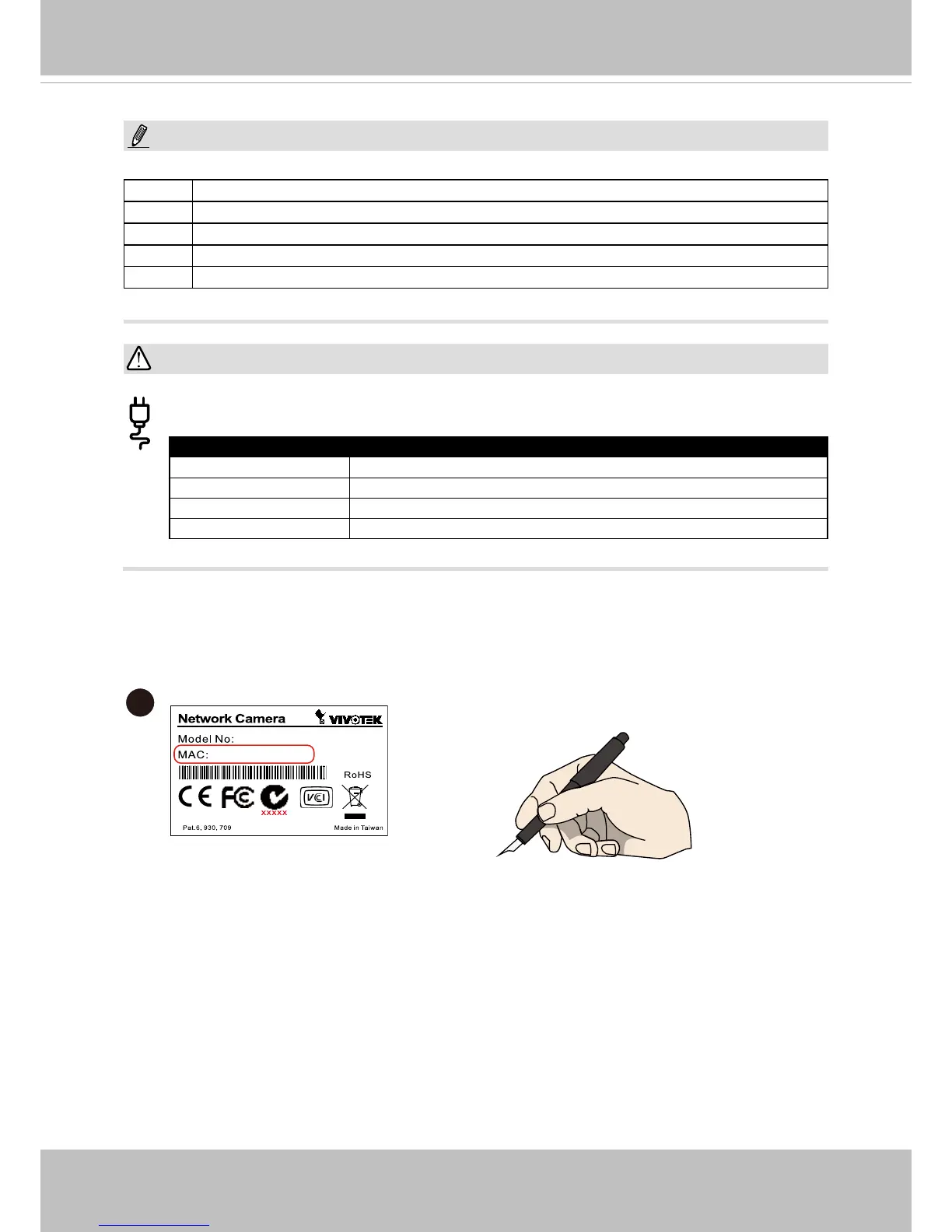

NOTE:
Hardware Installation
0002D10766AD
XXXXXX
1
1. Jot down the camera's MAC address for later reference.
IMPORTANT:
The FD9371-EHTV and FD9381-EHTV come with an embedded heater and require
an 802.3at PoE switch.
Model Consumption & PoE PSE
FD9371-HTV DC 12V - 9.6W / PoE - 12W (IEEE 802.3af)
FD9381-HTV DC 12V - 11.6W / PoE -12.8W (IEEE 802.3af)
FD9371-EHTV DC 12V - 21W / PoE - 24.7W (IEEE 802.3at)
FD9381-EHTV DC 12V - 23W / PoE - 25.5W (IEEE 802.3at)

Vivotek FD9371-HTV Specifications

General

Type	-
PTZ control	Yes
Certification	CE, LVD, FCC Class A, VCCI, C-Tick, UL
Placement supported	Outdoor
Flash memory	128 MB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Sensor type	CMOS
Optical sensor size	1/2.8 \
Video streaming	Adjustable resolution, quality and bitrate Smart Stream II
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Video formats supported	H.264, H.265, M-JPEG
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Supported graphics resolutions	2048 x 1536 (QXGA)
Digital zoom	48 x
Focal length range	3 - 9 mm
Maximum aperture number	2.3
Number of cameras	1
Camera shutter speed	1/5 - 1/16000 s
Minimum illumination	0.001 lx
LED type	IR
Night vision distance	30 m
Audio system	2-way
Audio formats supported	G.711
Signal-to-Noise Ratio (SNR)	43 dB
DC output voltage	12
Power source type	PoE
Power consumption (max)	12 W
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
LED indicators	Power, Status
Housing material	Metal
Protection features	Vandal proof
International Protection (IP) code	IP66
Browser supported	Mozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10/11
Number of users	10 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface	RJ-45
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Height	103 mm
Weight	927 g
Diameter	155 mm
