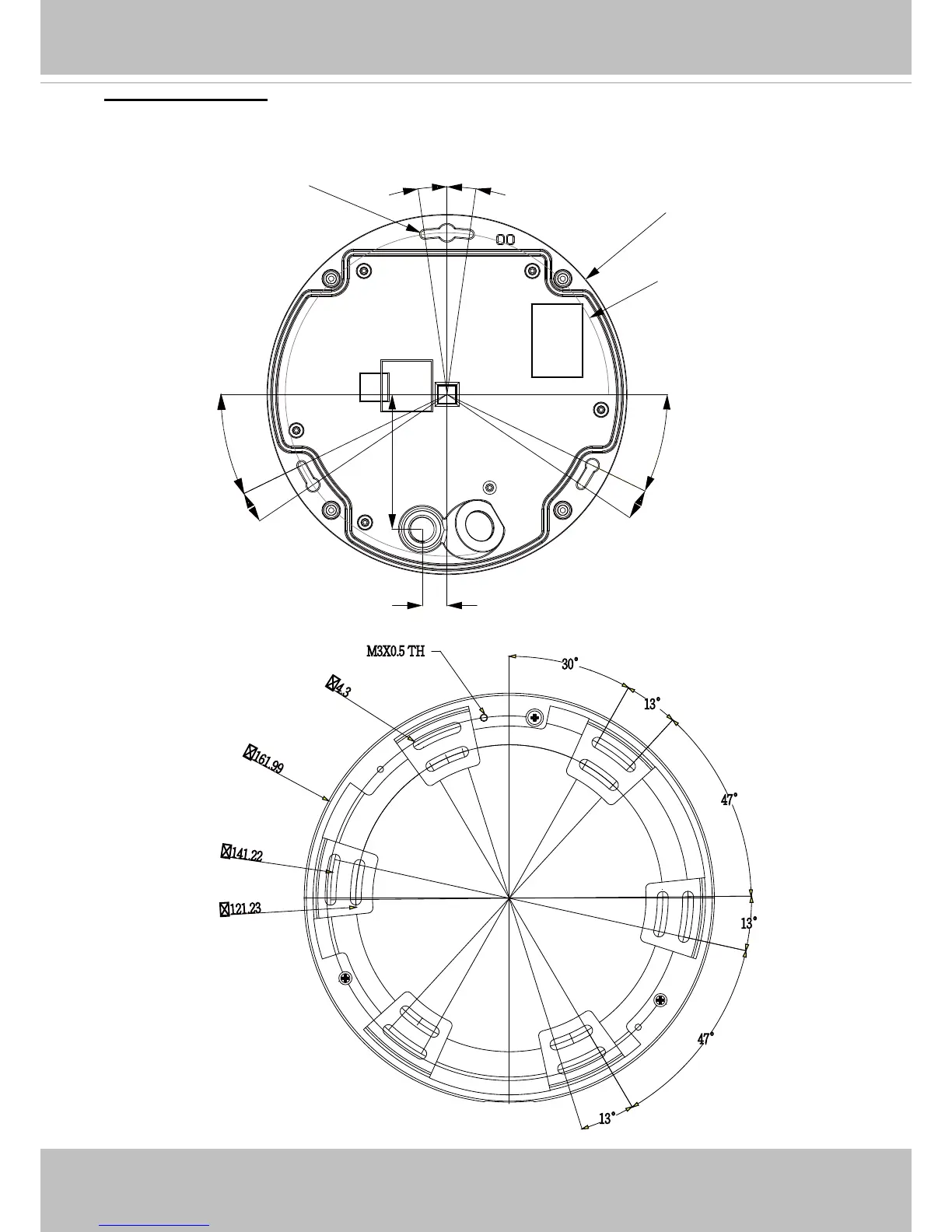

Mounting Positions
Refer to the diagram on the right for the mounting hole positions and the dimensions of the base
plate.
141.22
M3X0.5 TH
30°
13°
13°
47°
47°
13°
121.23
161.99
4.3
Camera Base Plate Mounting
Positions
Camera Mounting Plate Mounting Positions
FE8181V
