VIVOTEK
26 - User's Manual

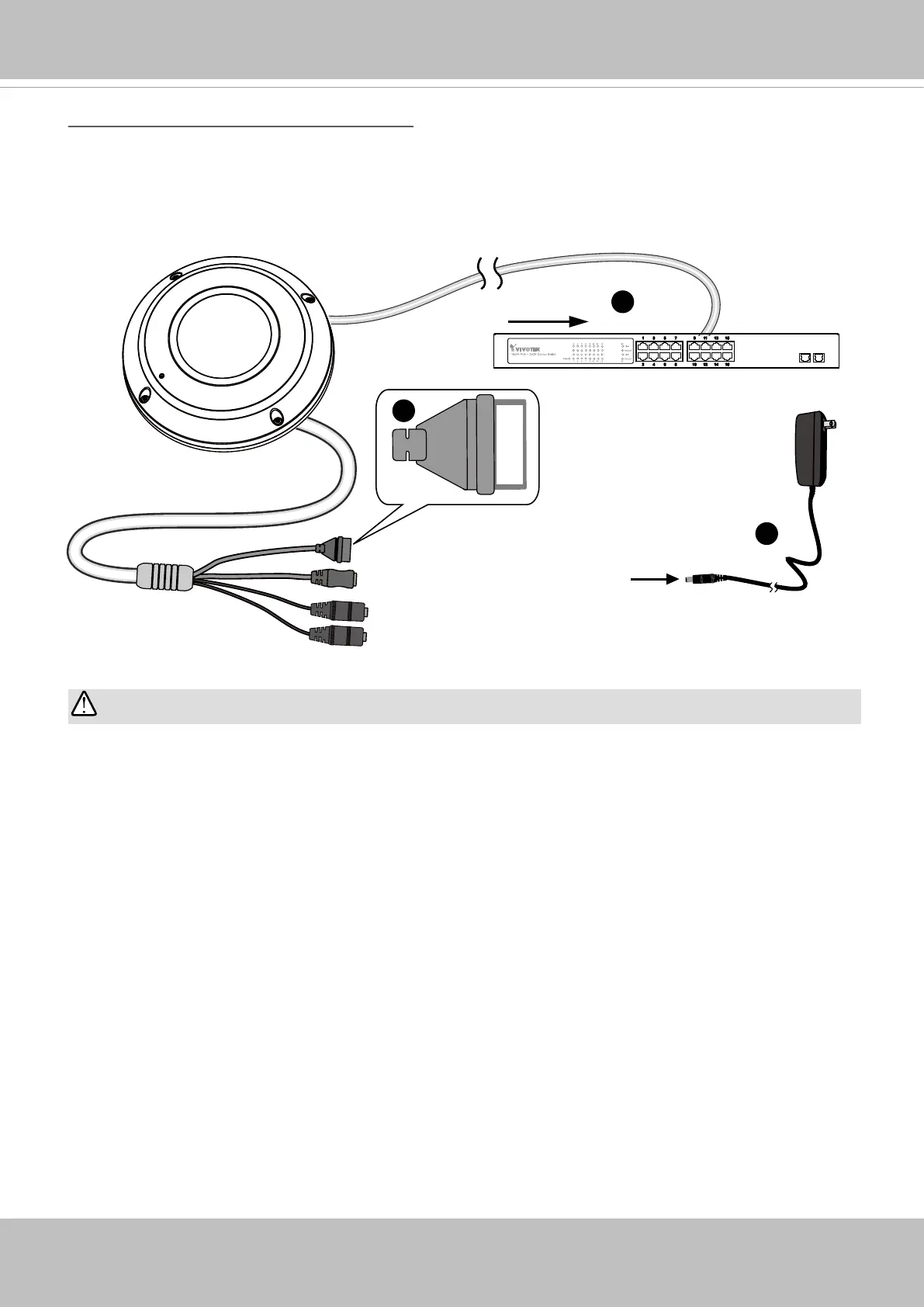

General Connection (without PoE)
1. If you have external DI devices, make the connection from the general I/O terminal block.
2. Ethernet, power and IO cables are user-supplied.
3. Connect DC power cord to a DC Adapter, and then to a power outlet.
+3V3
DO
D1
GND
17 18
1
2
3
General I/O Terminal Block
Power Cord Socket (Black)
Microphone In (Pink)
Audio Out (Green)
+3V3 : Power, 3.3V DC
DO : Digital Output
DI : Digital Input
GND : Ground
IMPORTANT:
If DC power is preferred, it should comply with: O/P: 12VDC, 2A min., L.P.S. per IEC 60950-1.
