Item LED Status Description
1 Steady Red Power on and system booting
Red LED o󰀨 Powered o󰀨
2 Steady Red + blinking Green every 1 sec. (Green
LED on for 1 sec and o󰀨 for another)
Network heartbeat
Steady Red + Green LED o󰀨 Network disconnected
3 Blinking Red every 0.15 sec. + Blinking Green
every 1 sec. (Red LED on for 0.15 sec. and Green
LED on for 1 sec. and o󰀨 for another)
Upgrading rmware
4 Blinking Red every 0.15 sec. + blinking Green
every 0.15 sec
Restoring defaults
LED Denition

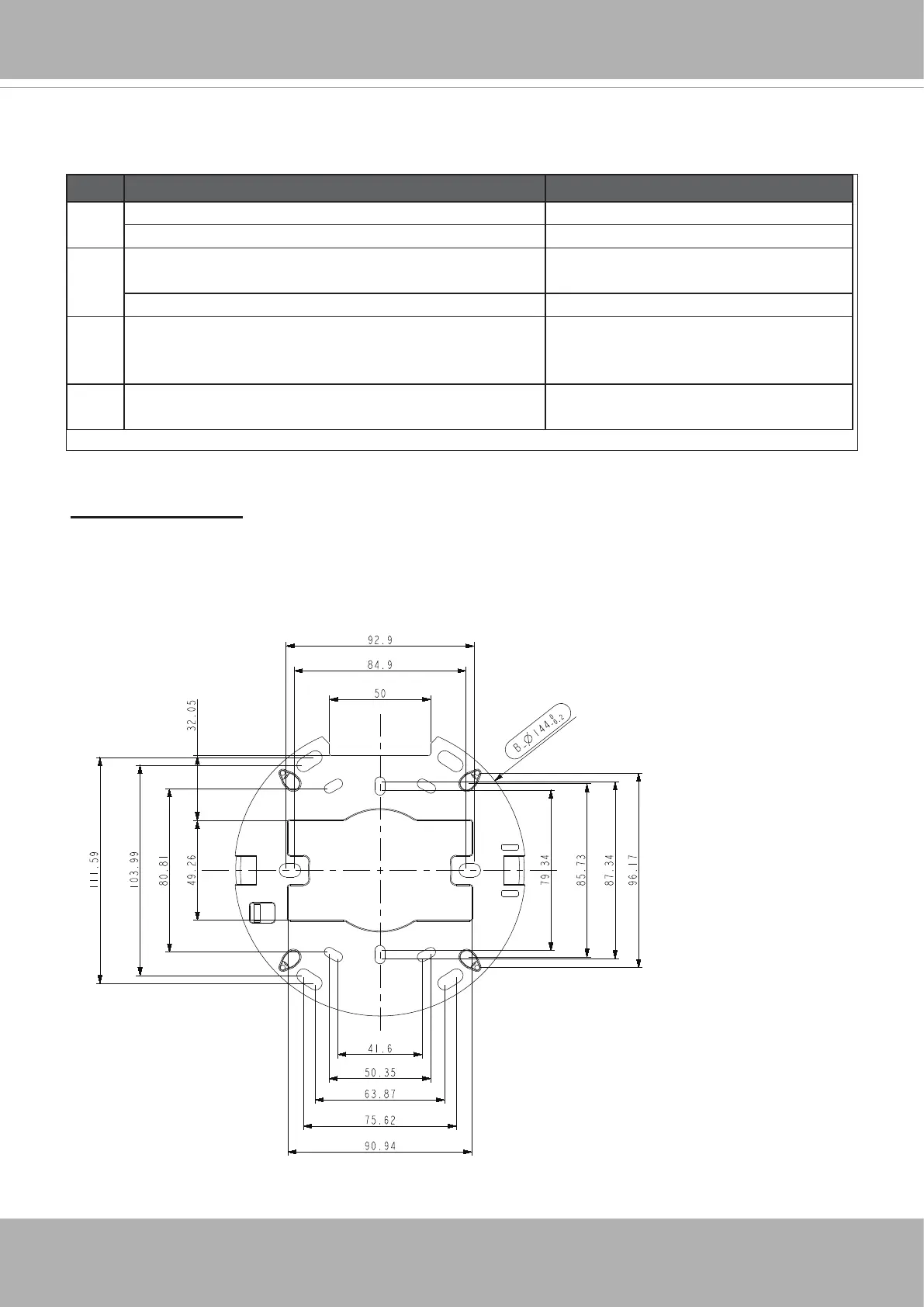

Mounting Positions
Refer to the diagram on the right for the mounting hole positions and the dimensions of the base
plate.

Vivotek FE9380-HV Specifications

General

Built-in HDD	No
Flash memory	128 MB
Internal memory	512 MB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
Sensor type	CMOS
Number of sensors	-
Optical sensor size	1/2.7 \
Total megapixels	5 MP
Maximum resolution	1920 x 1920 pixels
Video formats supported	H.264, H.265, M-JPEG
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Supported graphics resolutions	1920 x 1920
Digital zoom	12 x
Fixed focal length	1.16 mm
Maximum aperture number	2.25
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0 lx
Type	IP security camera
Certification	CE, FCC, VCCI, UL, CB
Placement supported	Indoor & outdoor
Connectivity technology	Wired
IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	Black, White
LED indicators	Power, Status
International Protection (IP) code	IP66
LED type	IR
Night vision distance	10 m
Number of illumination LEDs	4
Audio formats supported	G.711, G.726
Signal-to-Noise Ratio (SNR)	63 dB
Number of users	10 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Power source type	PoE
Power consumption (max)	12 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Number of cameras	1

Weight and Dimensions

Height	68.2 mm
Weight	695 g
Diameter	150 mm
