VIVOTEK
User's Manual - 7

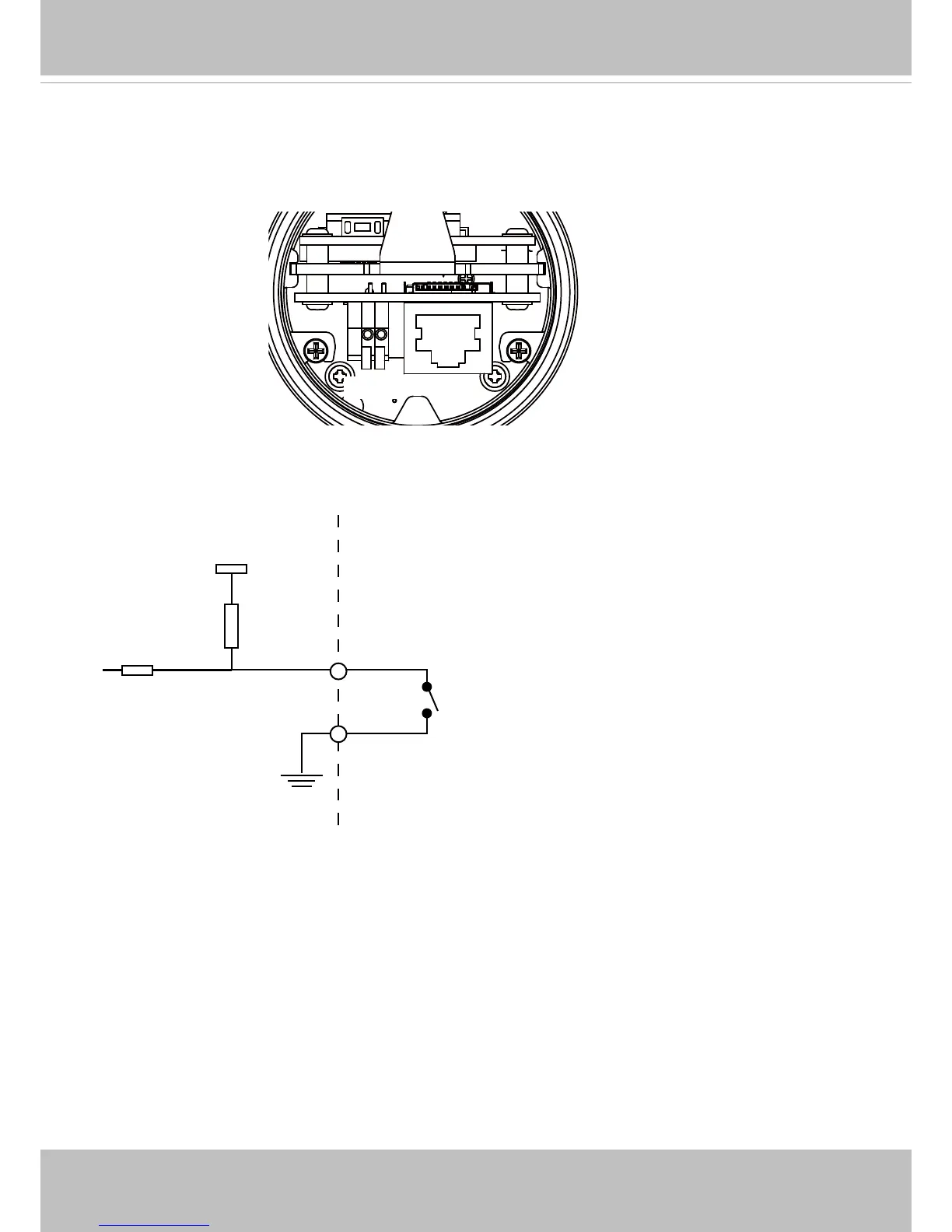

DI/DO Diagram
Please refer to the following illustration for the connection method.
+12V
Digital input
PIN 2
Ground
PIN 1
GND DI
General I/O Terminal Block
This Network Camera provides two digital input pins that can be connected to external sensor
devices. The pin denitions are described below.
