Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below.

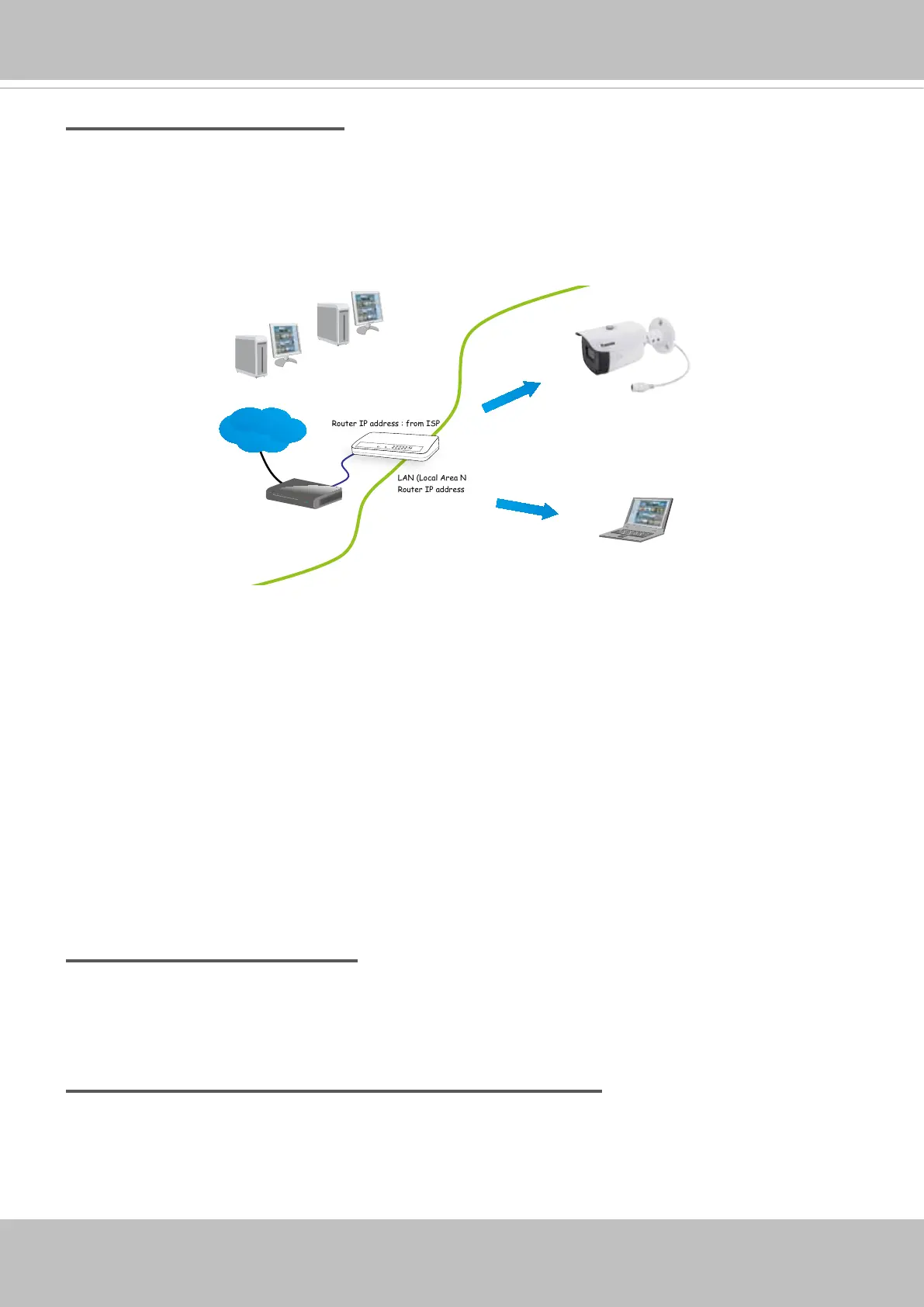

1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
Regarding how to obtain your IP address, please refer to Software Installation on page 20 for
details.
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
LAN (Local Area Network)
Router IP address : 192.168.0.1
WAN (Wide Area Network )
Router IP address : from ISP
Cable or DSL Modem
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Internet
2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is
192.168.0.3, please forward the following ports for the Network Camera on the router.
■ HTTP port: default is 80
■ RTSP port: default is 554
■ RTP port for video: default is 5556
■ RTCP port for video: default is 5557
If you have changed the port numbers on the Network page, please open the ports
accordingly on your router. For information on how to forward ports on the router, please refer
to your router’s user’s manual.
3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).
Use the public IP and the secondary HTTP port to access the Network Camera from the
Internet. Please refer to Network Type on page 80 for details.
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Network Camera.
Please refer to LAN setting on page 79 for details.
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to
PPPoE on page 80 for details.

Vivotek IB9368-HT Specifications

General

Built-in HDD	No
Flash memory	128 MB
Internal memory	256 MB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Focus	Motorized
Digital zoom	48 x
Number of lenses	1
Focal length range	2.8 - 12 mm
Maximum aperture number	2.8
Minimum aperture number	1.4
Sensor type	CMOS
Optical sensor size	1/2.9 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, H.265, M-JPEG
Noise reduction technology	3D noise reduction
Supported graphics resolutions	1920 x 1080 (HD 1080)
Tilt angle range	0 - 90 °
Angle of rotation	180 °
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0.055 lx
Type	IP security camera
Certification	CE, FCC Class B, UL, LVD, VCCI, C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wired
LED type	IR
Night vision distance	30 m
Number of illumination LEDs	2
Signal-to-Noise Ratio (SNR)	68 dB
Number of users	10 user(s)
Networking standards	IEEE 802.1x, IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP, ONVIF
IK code	IK10
Form factor	Bullet
Mounting type	Wall
Product color	Black, White
LED indicators	Power, Status, System
International Protection (IP) code	IP66
Power source type	PoE
Power consumption (max)	12.95 W
Power consumption (typical)	9 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Mac operating systems supported	Mac OS X 10.12 Sierra
Windows operating systems supported	Windows 7, Windows 8

Weight and Dimensions

Depth	85 mm
Width	214.5 mm
Weight	738 g
