18
Below is a sample procedure using a Pendant pipe:

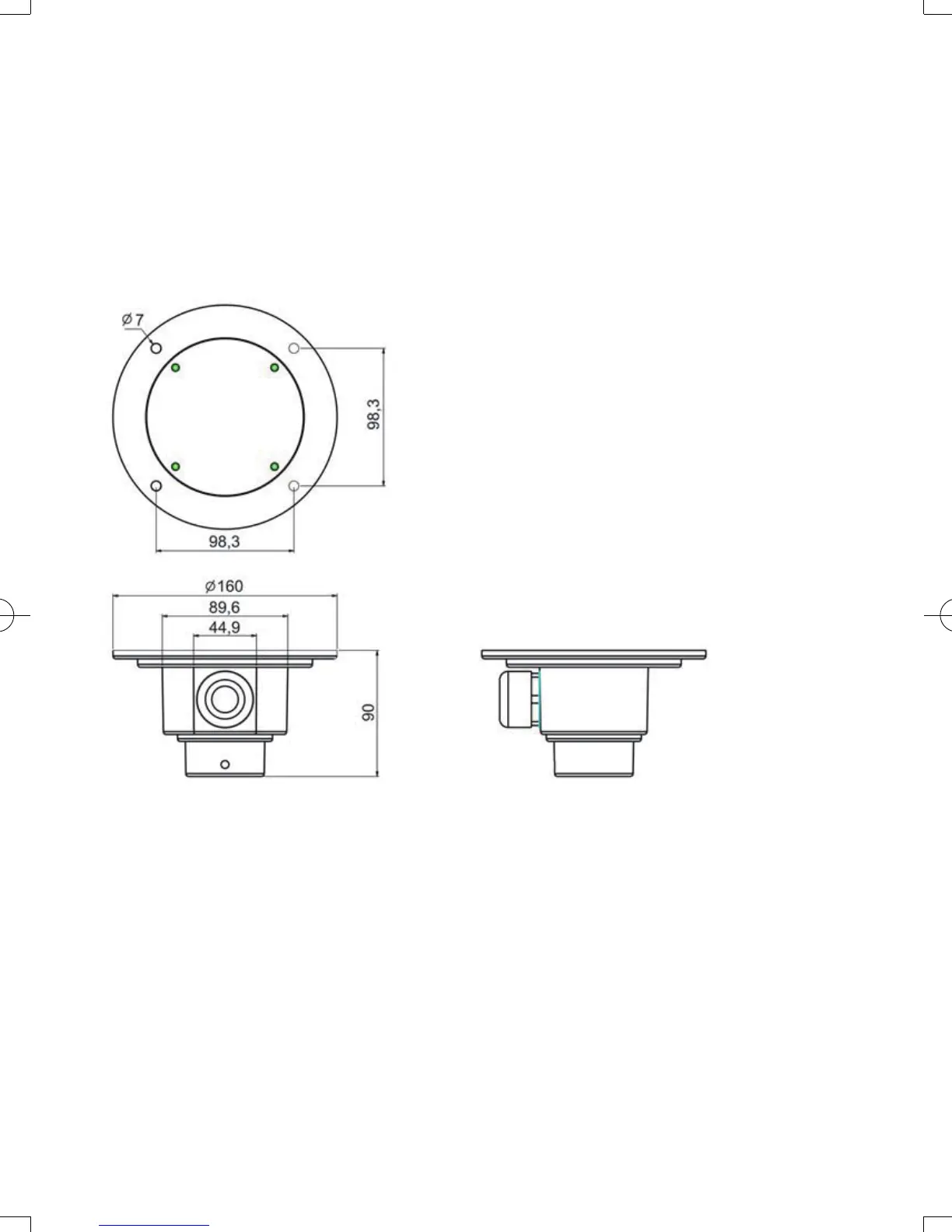

1. Determine a hard surface ceiling location, and use the mounting holes on the pendant
head itself for marking where holes will be drilled to secure the pendant head. Drill
holes 10mm in diameter and 60mm deep.
3-4. Pendant Mount Installation
2. Locate the position where you want to install the pendant pipe and camera. Drill holes
on the ceiling for securing the pendant head. Secure the pendant head by hammering
anchors into the ceiling and then fasten screws through it.
IP8152_housing_ig_VVTK_v1.0_20121206.indd 18 2013/1/10 下午 01:36:48
