Fine-tune the Camera Focus
7
Please follow the steps below to fi ne-tune the camera focus:
1. Use the supplied L-type hex key wrench to loosen the ring screw; the adjustment
ring will become rotatable.

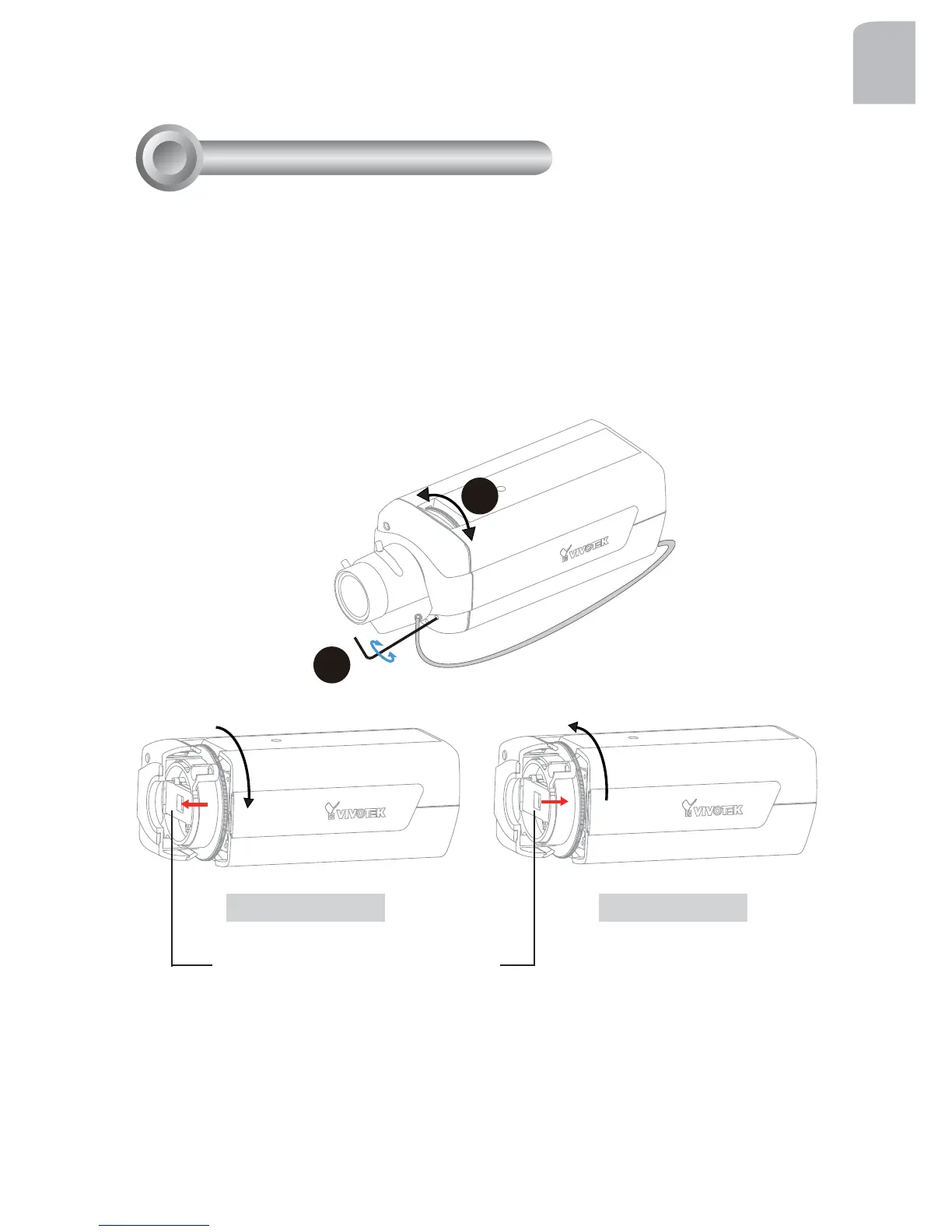

2. Rotate the adjustment ring to fi ne-tune the distance between the sensor and the
lens; the IR-cut fi lter and image sensor will move forwards or backwards as the
illustration shown below.
3. When fi nished, tighten the ring screw to fi x the adjustment ring.
CS
C
1
2
for C-mount lensfor CS-mount lens
IR-cut fi lter and image sensor
