VIVOTEK
User's Manual - 9

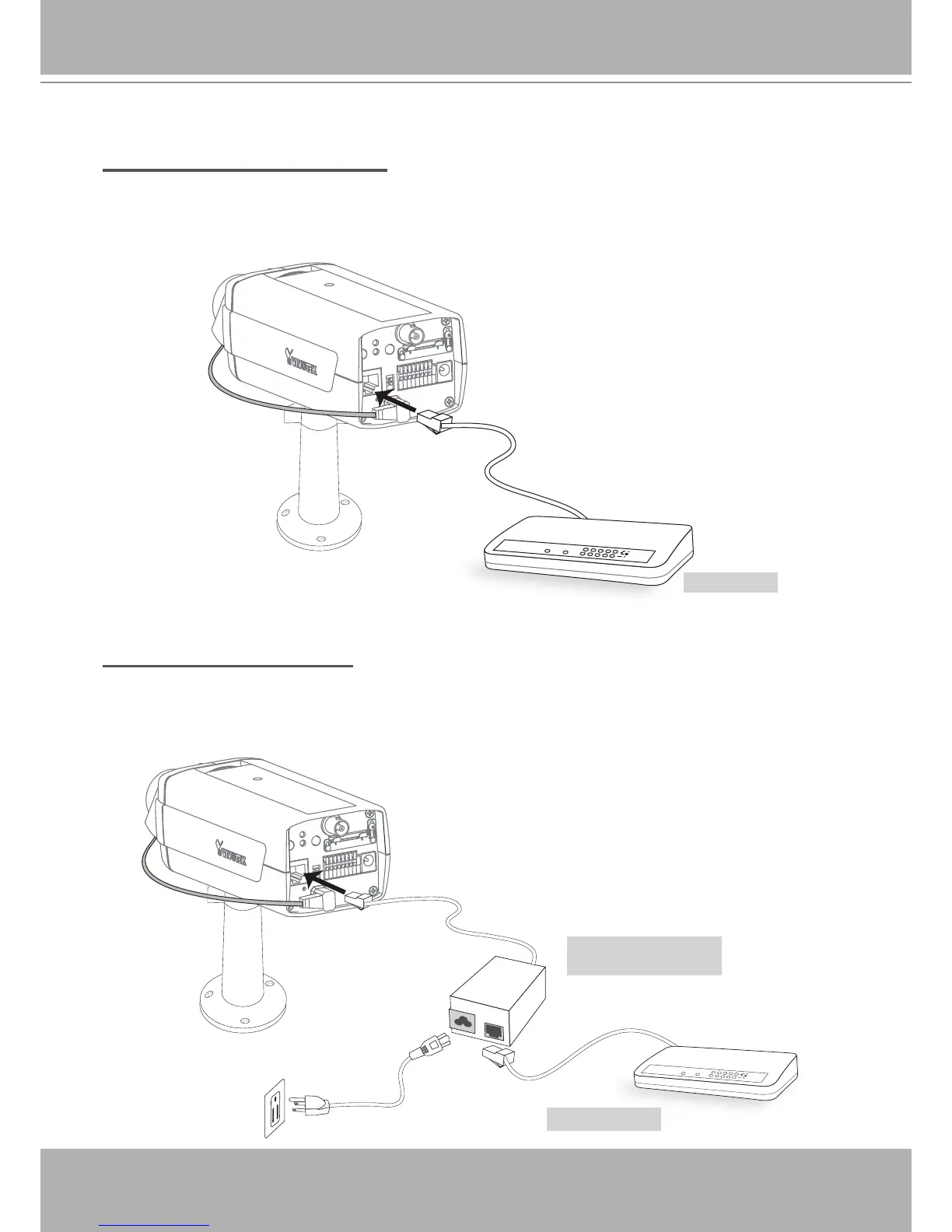

Set up the Network Camera through Power over Ethernet (PoE)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via a single
Ethernet cable� Follow the below illustration to connect the Network Camera to a PoE-enabled
switch via Ethernet cable�
PO WER
COLLISIO N
LINK
RECE IV E
PARTI TION
1
2
3
4
5
When using a non-PoE switch
If your switch/router does not support PoE, use a PoE power injector (optional) to connect
between the Network Camera and a non-PoE switch�
PoE Switch
POW ER
COLLISION
LINK
RECEI VE
PARTITI ON
1
2
3
4
5
Non-PoE Switch
PoE Power Injector
(optional)
power + data transmission
