Vivotek IP8331 - Network Deployment; General Connection (without PoE)

EN-5
English
Network Deployment
4
POW
ER
C
O
LL
I
S
ION
L
I
N
K
RE
CEIVE
PARTITIO
N
1
2
3
4
5

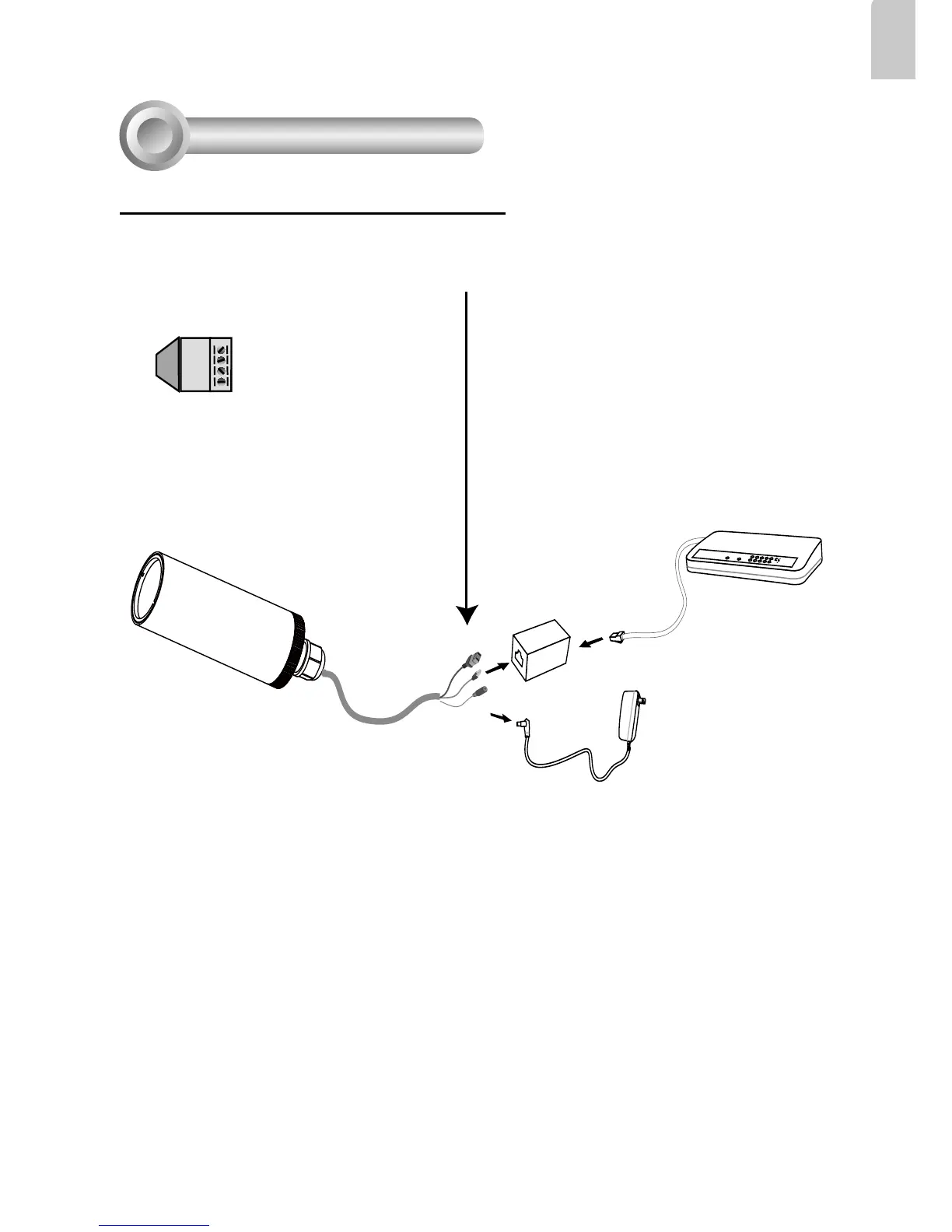

1. If you have external devices such as
sensors and alarms, make connections
from general I/O terminal block.
2. Use the supplied RJ45 female/female
coupler to connect the Network Camera
to a switch.
Use a Category 5 Cross Cable when
your network camera is directly
connected to PC.
3. Connect the power cable from the
Network Camera to a power outlet.
AC24V: 24V+
AC24V: 24V-
DI : Digital Input
GND : Ground
AC24V
AC24V
DI
GND
General Connection (without PoE)
