Waterproof Connector

1 N/C

2 N/C

3 DO- *

4 DO+ **

5 Digital Input: - (Ground)

6 Digital Input 3: DI3

7 Digital Input: - (Ground)

8 Digital Input 2: DI2

87654321

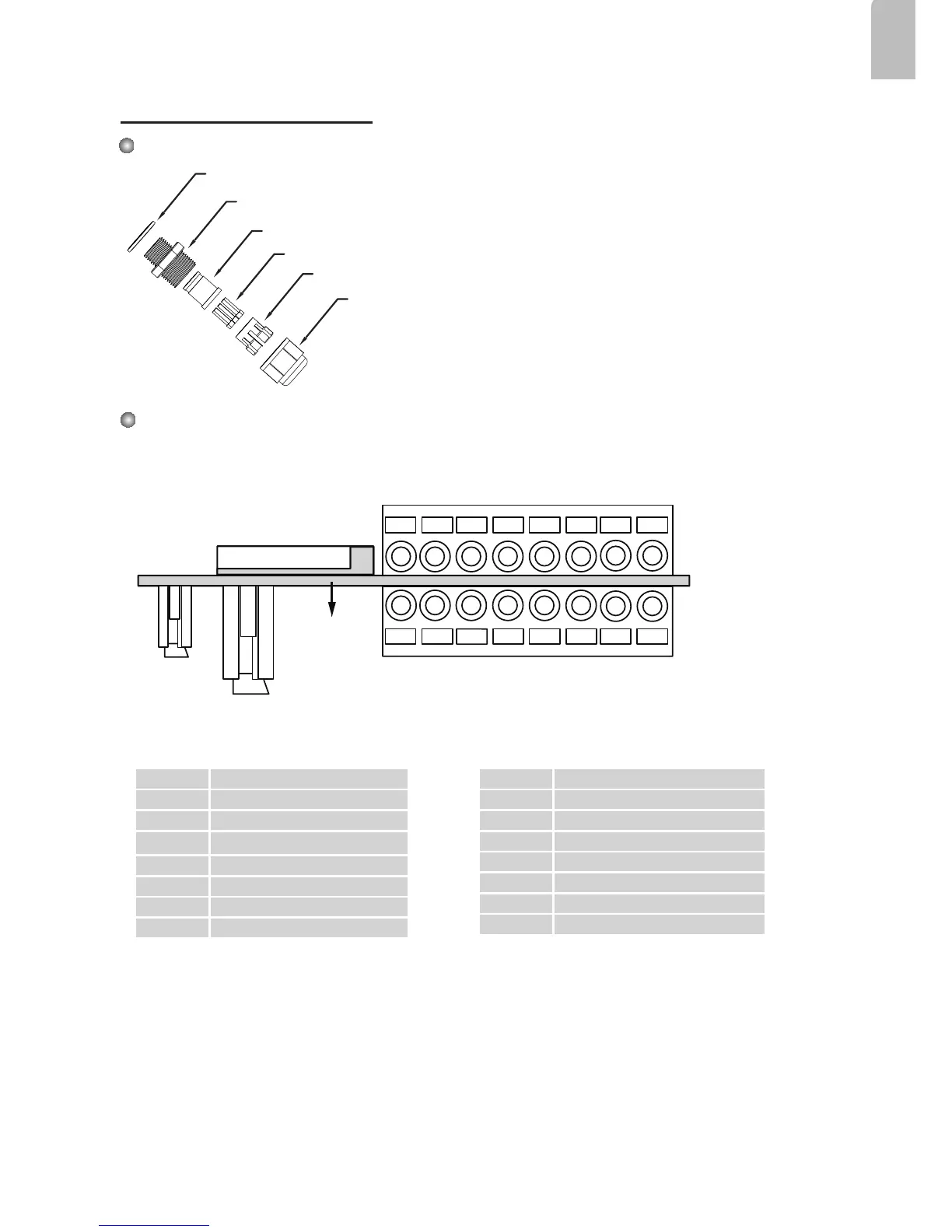

Components of the Waterproof Connector

Seals (D)

Housing (E)

Sealing Nut (F)

Seal (C)

Screw Nut (B)

Pin Denitions

Rubber (A)

1 Digital Input 1: DI1

2 Digital Input: - (Ground)

3 RS485 +

4 RS485 -

5 AUDIO_GND

6 AUDIO_IN: Ext_MIC_IN

7 AUDIO_GND

8 AUDIO_OUT

* Vmax.: 40V DC, Imax.: 400mA.

** Power output, 12V DC: max. load is 50mA.

The terminal block is accessible when the rear cover is opened.
