Vivotek MD8564-EH - Page 112

VIVOTEK
112 - User's Manual

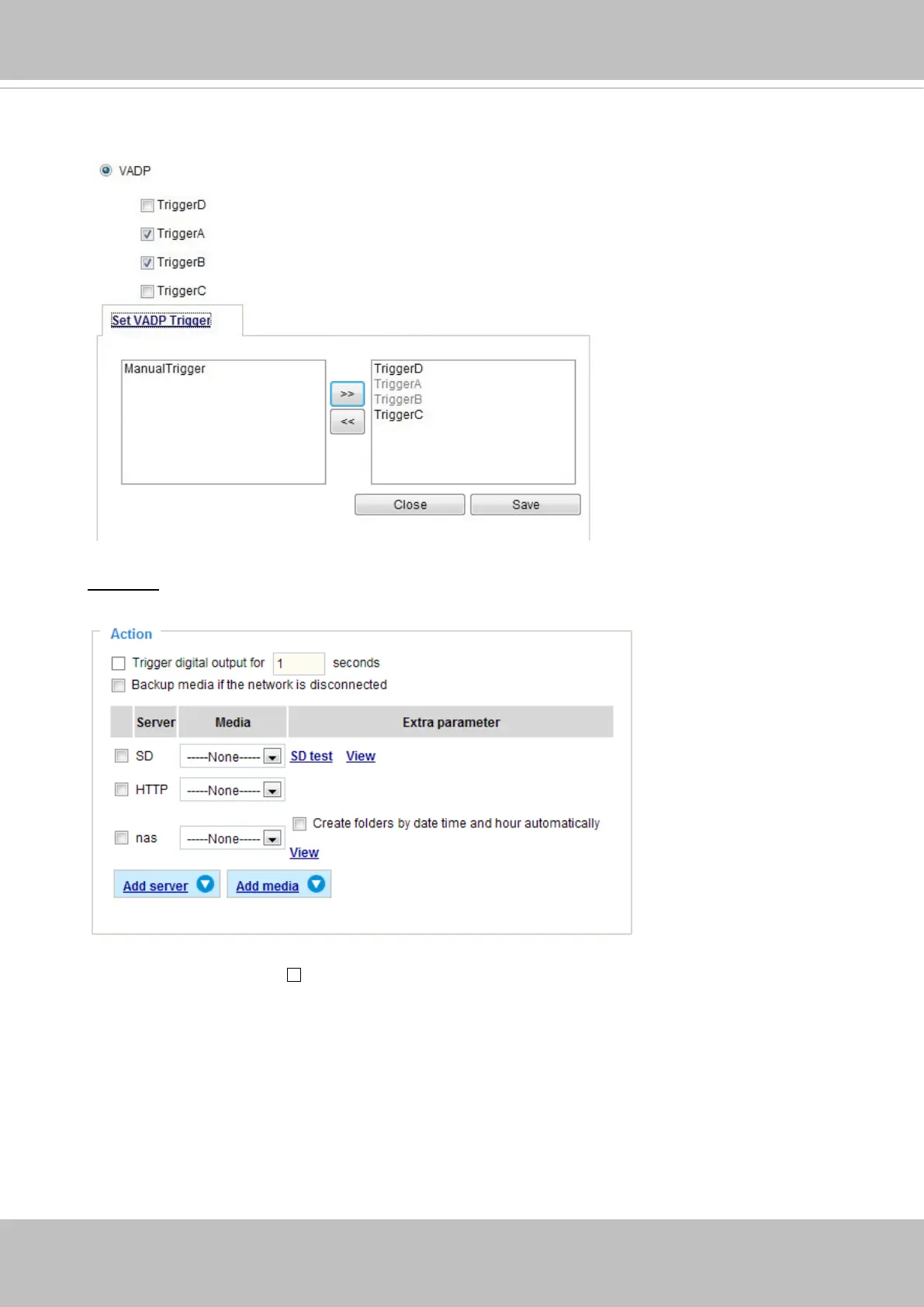

3. Action
Dene the actions to be performed by the Network Camera when a trigger is activated.
Once the triggers are congured, they will be listed under the VADP option.
■ Trigger digital output for
seconds
Select this option to turn on the digital output signals (via the DO connectors on the main
assembly) when a trigger is activated. Specify the length of the trigger interval in the text box.
■ Backup media if the network is disconnected
Select this option to backup media le on SD card if the network is disconnected. This function
will only be displayed after you set up a network storage (NAS). The media to back up can
include snapshot images, video, or system logs depending on your event settings.
