VIVOTEK
12 - User's Manual
9

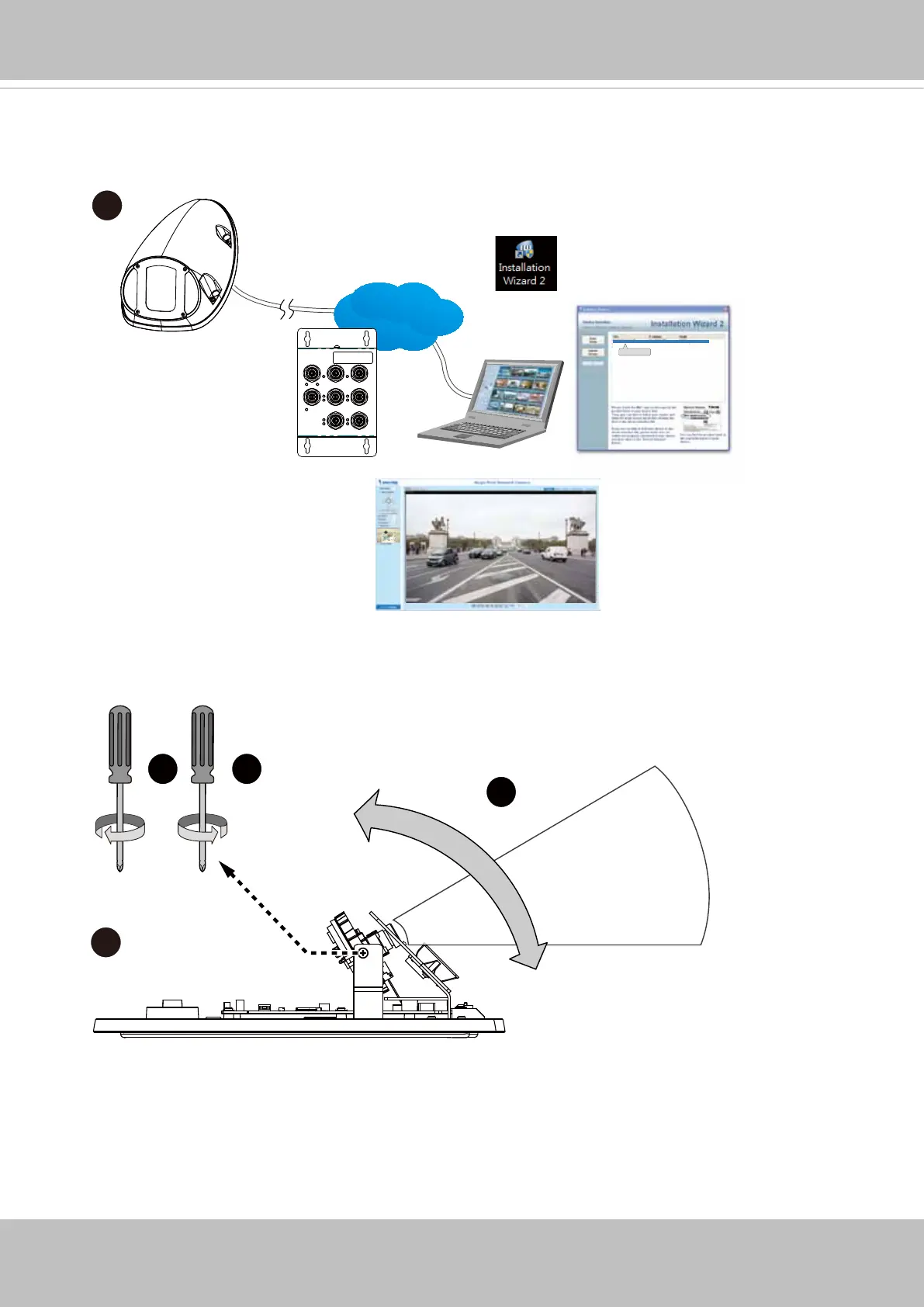

9. Connect the Ethernet cabel to a PoE mid-span or switch. (The camera can also be
powered by a DC power source.) Use the IW2 utility to locate the camera, and open a
web console with it. Note that the camera can be powered by an A type PoE device.
10
10. With a live video, you can adjust the camera lens tilt angle. When satised with the
shooting angle, tighten the tilt retention screws.
0002D1730202
00-02-D1-73-02-02 192.168.5.151 FD8168
IW2
Browser
LAN
IEEE 802.3at
A type
powered via
pins 1, 2, 3, 6
2
3
1
0 ~ 30°
