Vivotek SC8131 User Guide

VIVOTEK
10 - User Guide
293cm
278cm
Combined HFOV
300cm
• The cameras here are shown on their long side.
• The FOV is the camera's "detecting area."
7. Once the Stitching conguration is done, the positioning order of peer cameras will be
xed, and you cannot change their Stitching order unless you unstitch them.
9. The tracked objects will appear on the live view of a stitched conguration after a
3-seconds delay, due to the network transfer and processing time.
10. It is best that all cameras in a Stitching conguration are installed at the same height
and with the same tilt angle (if applied).
NOTE:
Height (cm)* Dist. to the next
camera
Combined HFOV
240 140.2 395.0
260 191.1 522.4
280 242.1 598.9
300 293.1 700.8
320 344.0 802.7
340 395.0 904.7
360 446.0 1006.6

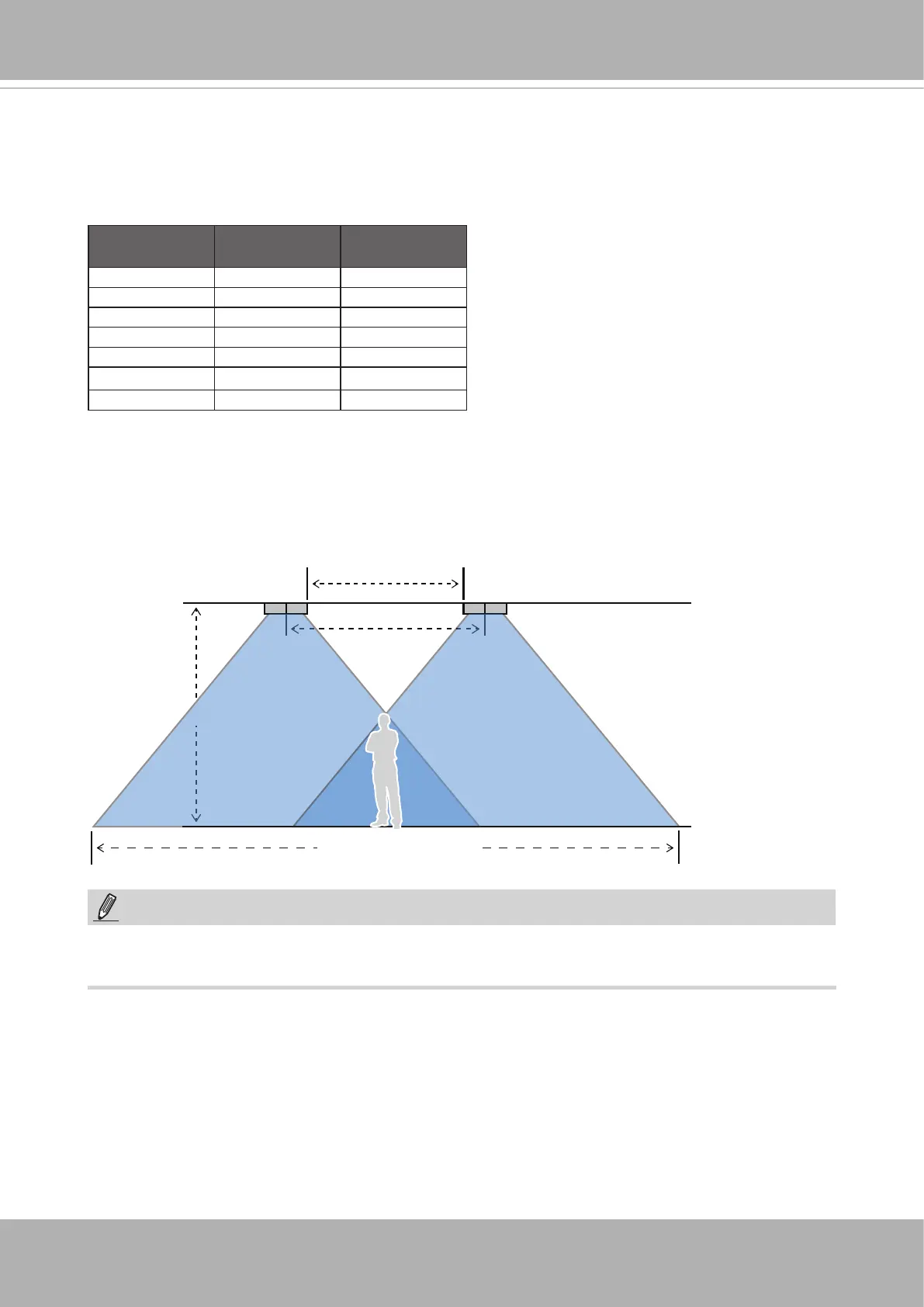

Consider the following when stitching multiple cameras to form a large virtual oor plan:
8. The maximum distance between cameras, when mounted at a height of 300cm, is
278cm (from edge to edge). The FOVs of two cameras must overlap to a certain amount
in order to cover people walking between them. An estimation of a man of 185cm tall is
applied here.
* Unit in centimeter.

Vivotek SC8131 Specifications

General

Built-in HDD	No
Flash memory	256 MB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Sensor type	CMOS
Optical sensor size	1/3 \
Maximum resolution	2560 x 960 pixels
Video formats supported	H.264, M-JPEG
Power consumption	300 mA
Power source type	PoE
Power consumption (Power over Ethernet (PoE))	12.95 W
Type	IP security camera
Certification	CE, LVD, FCC B, VCCI, C-Tick, UL
Placement supported	Indoor
Connectivity technology	Wired
Interface	RJ-45
Form factor	-
Mounting type	Ceiling
Product color	White
LED indicators	Power, Status
Networking standards	IEEE 802.3af
Number of cameras	1
Operating temperature (T-T)	-10 - 40 °C
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Intelligent Video Surveillance (IVS) system features	People counting
Minimum illumination	- lx

Weight and Dimensions

Depth	160 mm
Width	70 mm
Height	38 mm
Weight	396 g
