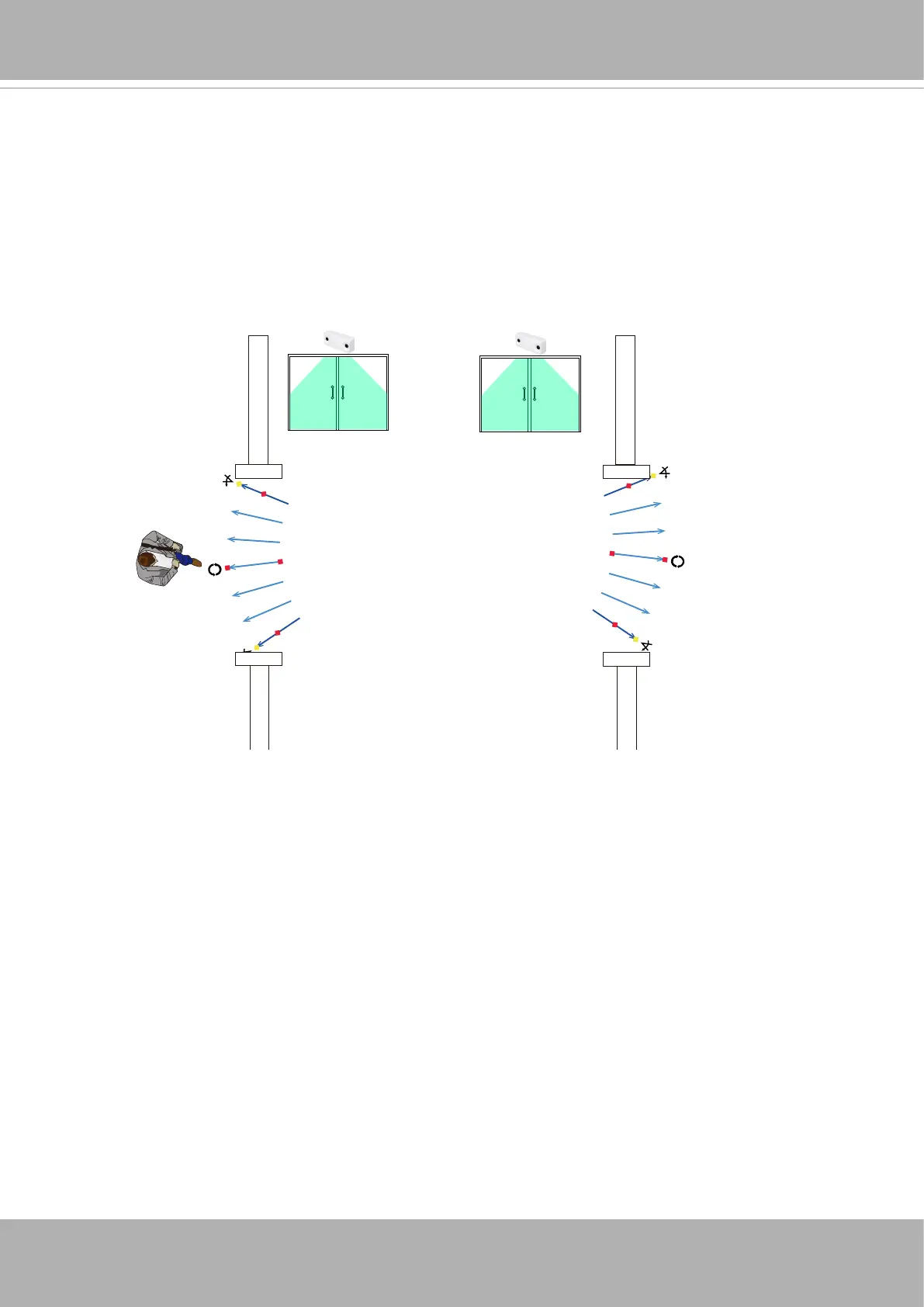

A sample conguration of 2 cameras mounted on an entrance and an exit is shown below.
Each camera covers a owpath indicating the IN and OUT directions.
When any person passes the owpath, an IN or OUT count occurs. When both cameras
are added to the NVR conguration, their IN/OUT counts will be combined, and the nal
result displays on the screen via the HDMI connection.
Flowpath
In
Out
Entrance
Exit
Flowpath
In
Out
In addition to this document, for more information for the installation and conguration of
the SC8131 camera, you can refer to its Quick Installation Guide and User Manual.

Vivotek SC8131 Specifications

General

Built-in HDD	No
Flash memory	256 MB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Sensor type	CMOS
Optical sensor size	1/3 \
Maximum resolution	2560 x 960 pixels
Video formats supported	H.264, M-JPEG
Power consumption	300 mA
Power source type	PoE
Power consumption (Power over Ethernet (PoE))	12.95 W
Type	IP security camera
Certification	CE, LVD, FCC B, VCCI, C-Tick, UL
Placement supported	Indoor
Connectivity technology	Wired
Interface	RJ-45
Form factor	-
Mounting type	Ceiling
Product color	White
LED indicators	Power, Status
Networking standards	IEEE 802.3af
Number of cameras	1
Operating temperature (T-T)	-10 - 40 °C
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Intelligent Video Surveillance (IVS) system features	People counting
Minimum illumination	- lx

Weight and Dimensions

Depth	160 mm
Width	70 mm
Height	38 mm
Weight	396 g
