Vivotek SC8131 - Page 16

Installation Height
(cm)
FOV
Zoom-In Factor
H-FOV
(cm)
V-FOV
(cm)
500 1.8 550.5 349.8
480 1.7 563.2 357.9
460 1.6 570.8 362.8
440 1.5 573.4 364.4
420 1.4 570.8 362.8
400 1.3 563.2 357.9
380 1.1 581.0 369.3
360 1 560.6 338.5
340 1 509.7 307.7
320 1 458.7 277.0
300 1 407.7 246.2
280 1 356.8 215.4
260 1 305.8 184.6
240 1 254.8 153.9
• What’s Zoom-In factor?

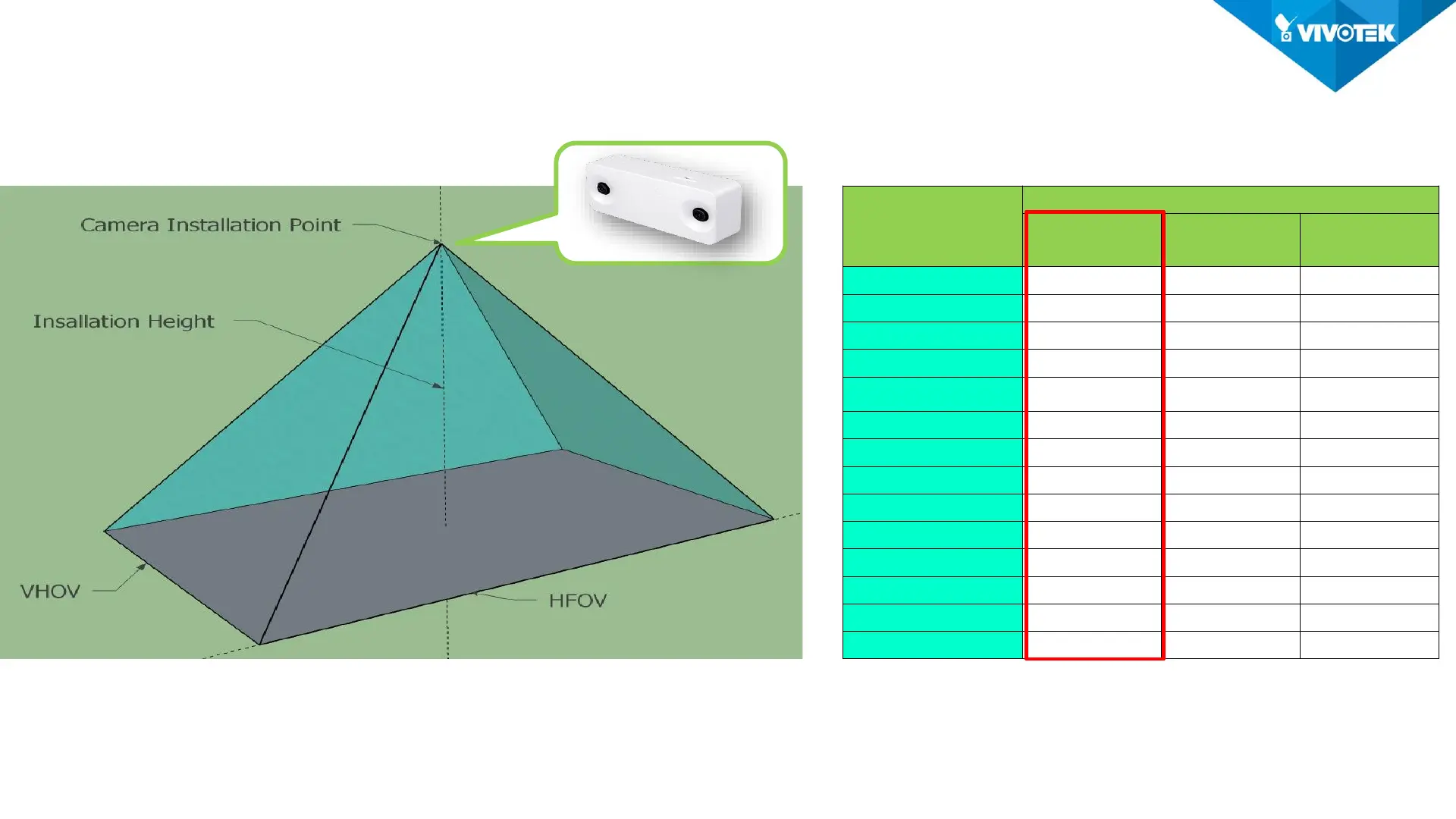

• Field of View Calculation
Camera Placement
