VIVOTEK
10 - User's Manual

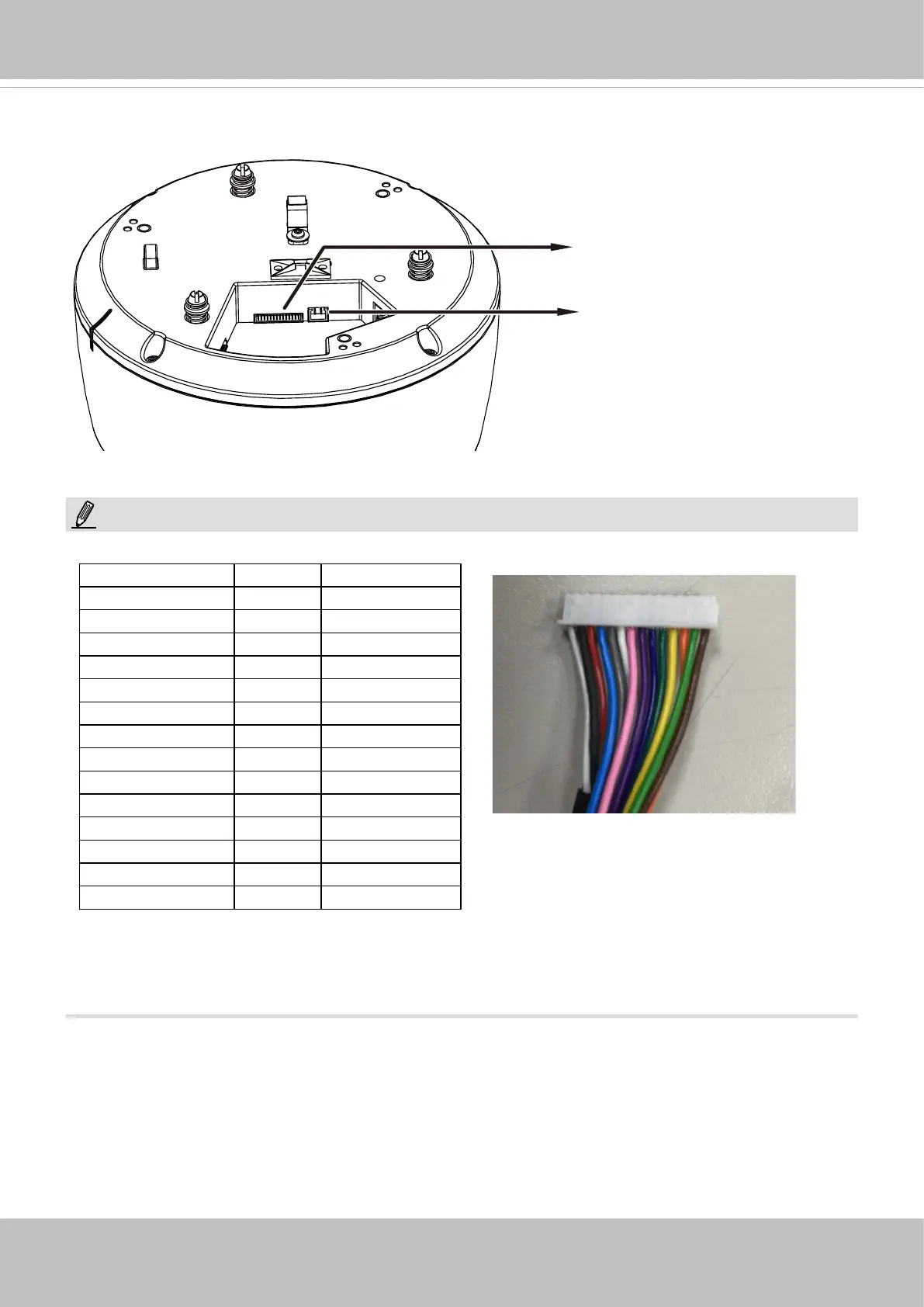

I/O combo connector
AC/DC 24V power input
NOTE:
The I/O combo cable is separately purchased. Its pinouts are shown below:
Name No. Color
DI_4 1 Brown
DI_3 2 Light green
DI_2 3 Orange
DI_1 4 Yellow
DO_2 5 Green
DO_1 6 Blue
DO+ 7 Purple
Reserved 8 Pink
RS485- 9 White
RS485+ 10 Gray
DI- 11 Light blue
AUDIO_IN 12 Red
AUDIO_GND 13 Black
AUDIO_OUT 14 White
114
