VIVOTEK
User's Manual - 13

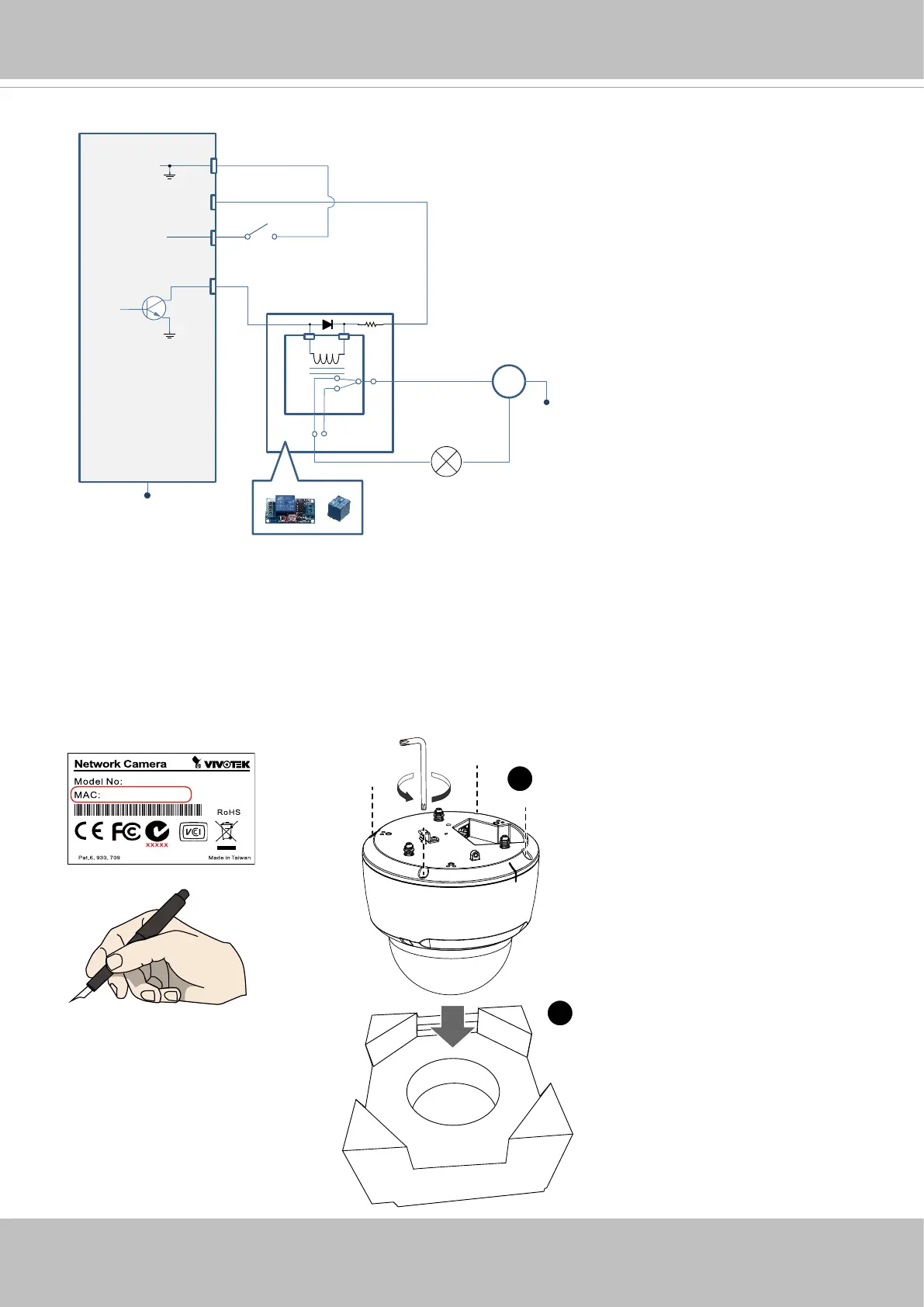

Hardware Installation
1. Jot down the camera's MAC address for later reference. Before you start to work on the
camera, place the camera on the original package foam block to avoid scratch and damage.
2. The camera weighs 1.2kgs. Select a rigid mounting location to prevent vibration to the
camera.
0002D10766AD
SDXXXX
1
2
DI-
DO+
DI+
DO-
Switch
External Device
Dry contact and using camera’s DO+ to supply a relay.
NC
NO
Relay
AC
External AC power
with Protected Eart
h
PE
PE
