VIVOTEK
24 - User's Manual

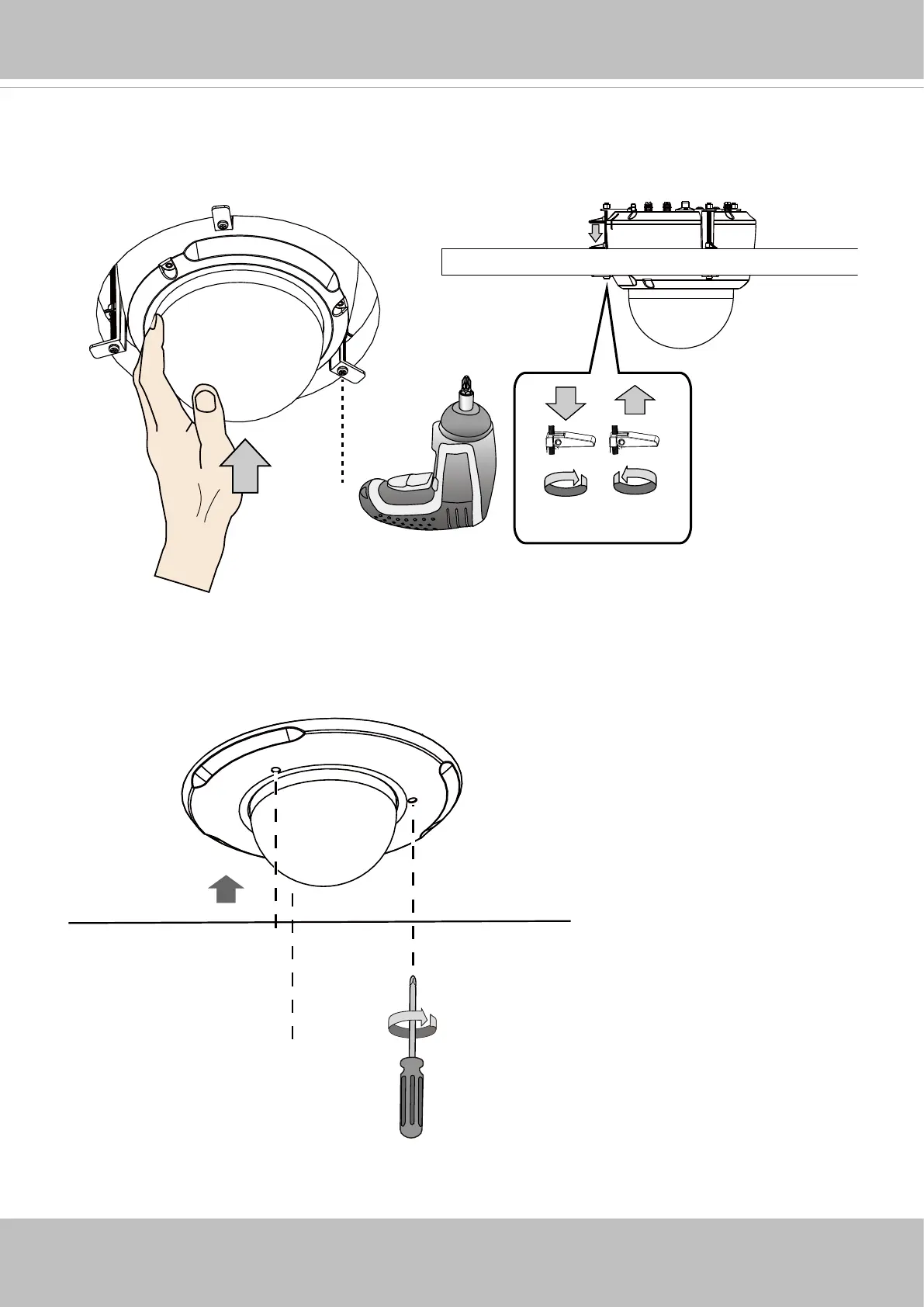

C-3. Install the camera. Use an electric screwdriver to lower the clamping plates until they rest
against the ceiling board so that the ceiling/board is caught between the clamps and the
ang on the other side of the ceiling. Do not over-tighten the clamps to avoid damages to the
ceiling board.
Clockwise
Counter-
clockwise
C-4. Secure the trim ring using a Phillips screwdriver.
