User's Manual - 5
Symbols and Statements in this Document
i
INFORMATION: provides important messages or advices that might help prevent
inconvenient or problem situations.
NOTE: Notices provide guidance or advices that are related to the functional integrity of
the machine.
Tips: Tips are useful information that helps enhance or facilitae an installation, function,
or process.
WARNING: or IMPORTANT:: These statements indicate situations that can be
dangerous or hazardous to the machine or you.
Electrical Hazard: This statement appears when high voltage electrical hazards might
occur to an operator.

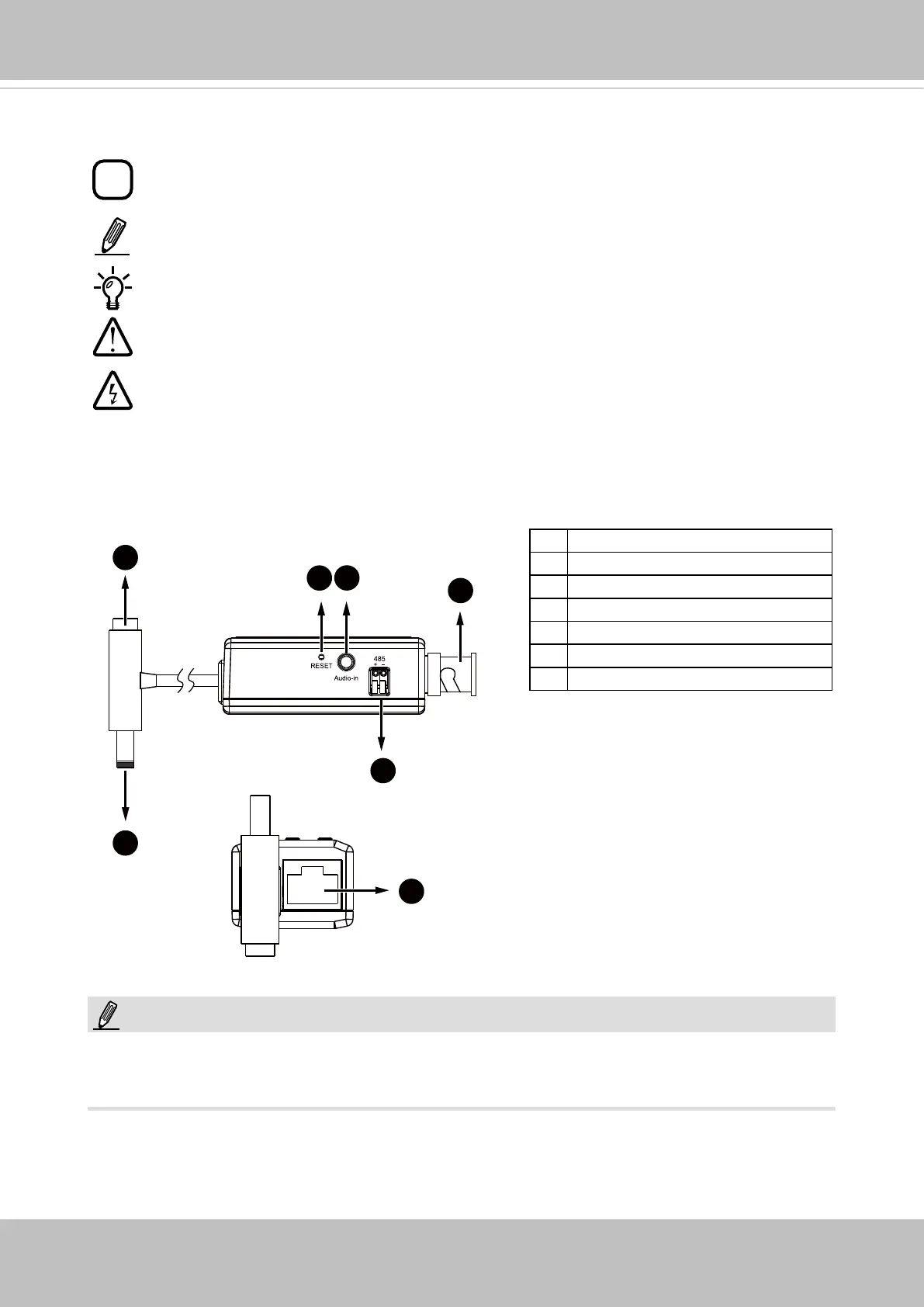

Physical Description
1 BNC input (male)
2 DC 12V output (to camera)
3 DC 12V input (to power source)
4 Reset button
5 Audio input phonejack
6 RS485
7 RJ-45 Ethernet connector
1
2
3
4 5
6
7
RS
NOTE:
• The video server consumes approximately 12V
@
0.15A = 3W power.
• Users should take consideration of the total power load on the power adaptor when cascading
another device using the 12V output connector.
