Vizio D58u-D3 User Manual

2
CONNECTING A DEVICE - AUDIO & VIDEO CABLE TYPES

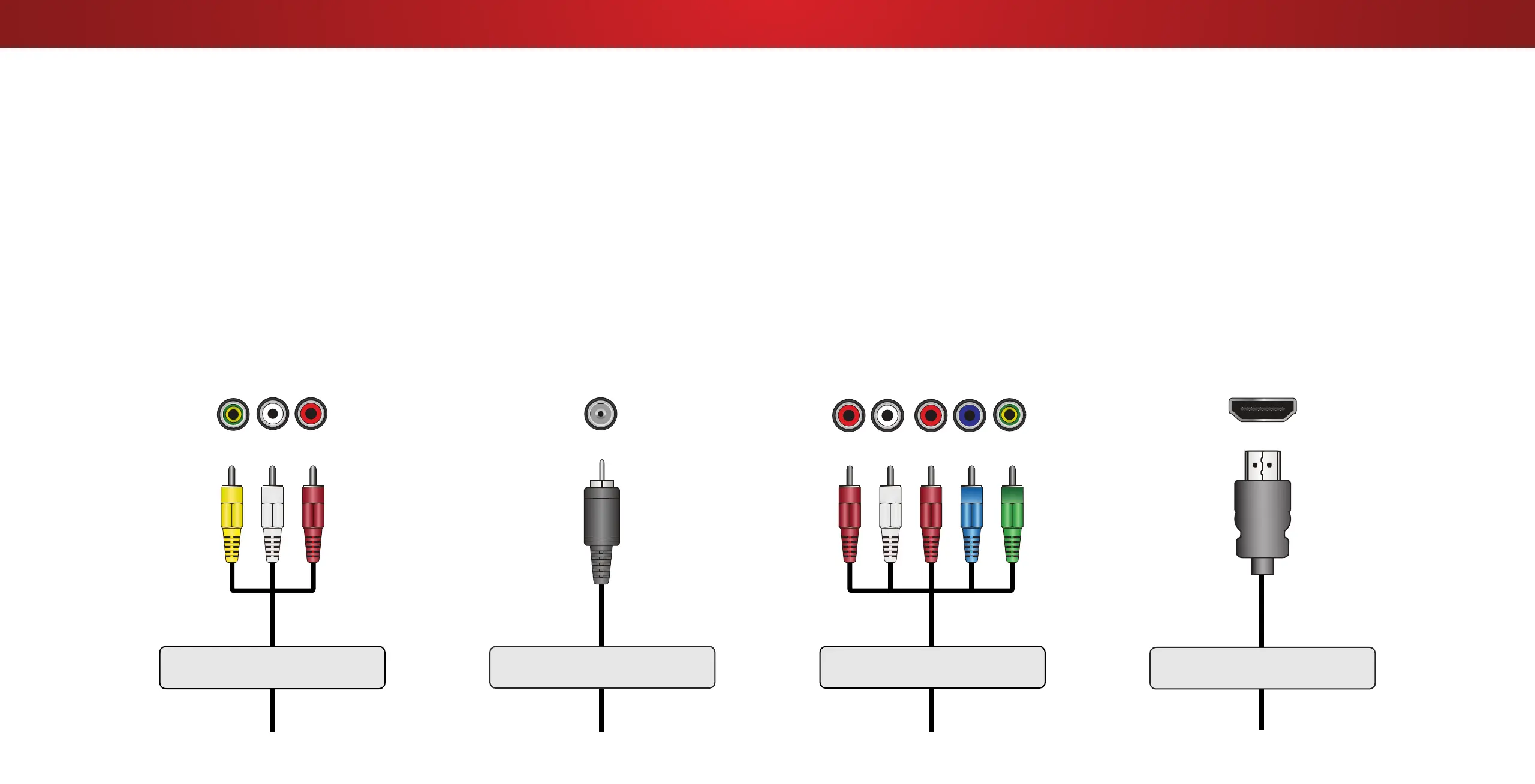

AV CABLE
AV cables (or Composite cables) are the
traditional way of connecting your devices to
your TV. Video signals are sent over the yellow
connector while audio is sent over the red and
white connectors.
• Video Resolutions up to 480i
• Analog Connection
• Audio and Video Signals
GOOD
COMPONENT VIDEO
Y/V L R
COAXIAL CABLE
Coaxial cables are the traditional way of
connecting antennas and cable television
signals to your TV. Coaxial cables carry both
audio and video signals through a single
connector.
• HD Video Resolutions up to 1080i
• Analog Connection
• Audio and Video Signals
BETTER
COAXIAL CABLE
Coaxial
COMPONENT CABLE
Component cables are designed to carry high
denition video signals along with additional
audio connections. Colors are delivered with color
information split up three dierent ways over
three connectors for video (separated into Red,
Blue and Green signals) and the left and right
audio connectors (Red and White).
• HD Video Resolutions up to 1080p
• Analog Connection
• Audio and Video Signals
HDMI CABLE
HDMI is the intelligent, all-digital interface that
delivers both dazzling quality and unmatched ease
of use. HDMI technology transmits crystal-clear
digital video along with multi-channel surround
audio. HDMI-connected devices have the ability
to automatically adjust themselves for optimal
viewing.
• HD Video Resolutions up to UHD*
• HD Audio
• Digital Connection
• Audio and Video Signals
BETTER
COMPONENT VIDEO
R L Pr/Cr Pb/Cb Y
HDMI
HDMI
BEST
* High-Speed HDMI cable required for UHD resolutions
14

Vizio D58u-D3 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	57.5 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Full-Array
Supported video modes	1080p, 2160p
Contrast ratio (dynamic)	5000000:1
Viewing angle, horizontal	176 °
Display refresh rates supported	120 Hz
Motion interpolation technology	-
Music apps	Pandora, Spotify
Video apps	Netflix, YouTube
Lifestyle apps	Facebook, Twitter
Audio decoders	DTS Studio Sound
RMS rated power	10 W
Number of speakers	2
PC in (D-Sub)	No
HDMI ports quantity	5
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Black
Panel mounting interface	400 x 400 mm
Sustainability certificates	ENERGY STAR
Certification	UL, cUL, FCC Class B, HDMI 1.4/2.0, Dolby Digital Plus
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.24 W
Power consumption (typical)	82.6 W
Package depth	183.9 mm
Package width	1392 mm
Package height	879.1 mm
Package weight	24660 g

Weight and Dimensions

Depth (with stand)	284.5 mm
Height (with stand)	828 mm
Weight (with stand)	18840 g
Depth (without stand)	71.12 mm
Width (without stand)	1295 mm
Height (without stand)	762 mm
Weight (without stand)	18340 g
