VIZIO E420VL / E470VL / E550VL User Manual
Version 2/12/2010 11
www.VIZIO.com
Attaching the E420VL TV Stand
Note: We strongly recommend that two people perform the setup and assembly due to the weight and
size of the TV.
Unpack the TV and stand base:
1. Remove the remote control, batteries, and power cord from the foam end caps.
2. Remove the two top foam end caps.
3. Remove the stand base from the packaging.
4. Remove the TV from the box and lay it face down on a clean, flat surface.
Note: Make sure that the surface is free of debris to prevent the TV screen from getting scratched.

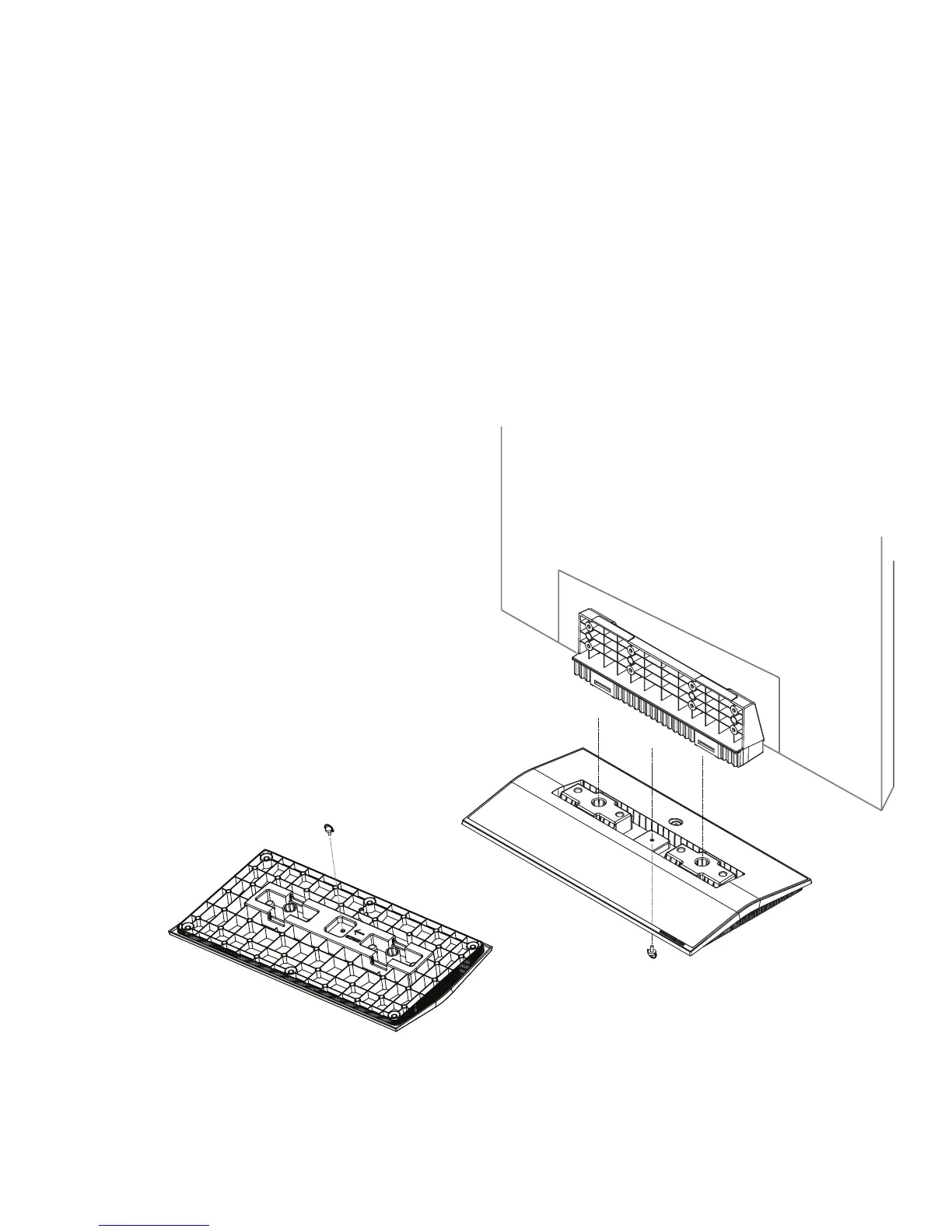

Attach the TV stand base:
1. Push the stand base onto the stand neck (already connected to TV).
2. On the bottom of the base, insert the thumb screw and tighten. Move the TV into an upright
position.
Stand Neck
(already attached
to TV)
Stand Base
Bottom view
Vizio TV
(back)
