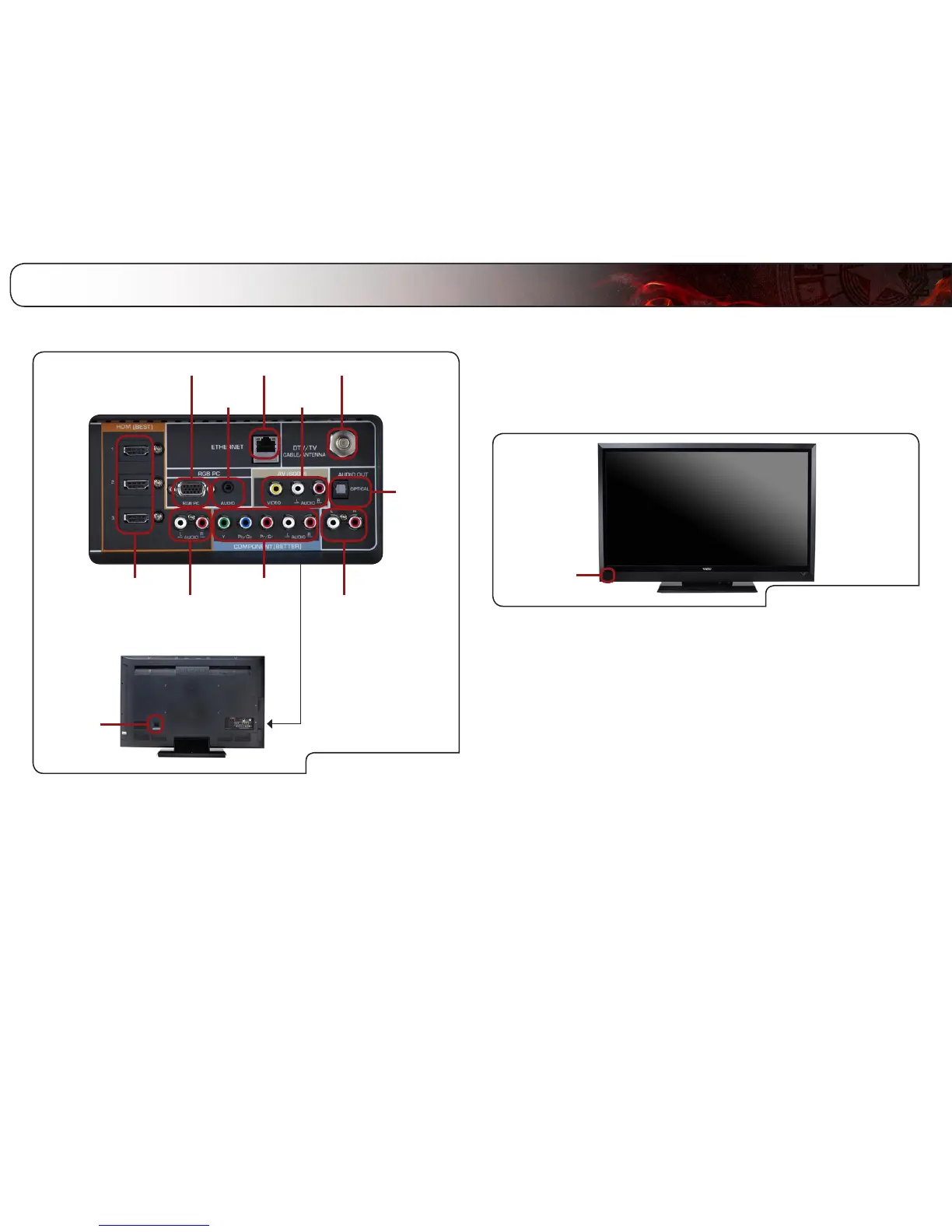

Controls and Connections
Component: Connect component video/audio device.
RCA Audio In: Connect audio for an HDMI input.
HDMI (1,2,3): Connect HDMI devices.
AC IN: Connect the included power adapter.
Front Panel
Front Panel
Remote Control
Sensor
Remote Control Sensor: When using the remote, point it directly at this
sensor.
Rear Panel
Rear Panel
HDMI (1, 2, 3)
RCA Audio In
(For use with
HDMI ports)
Component
RCA Audio Out
Optical
Audio Out
Cable/AntennaEthernetRGB PC
PC
Audio In
Composite
AV
AC IN
RGB PC: Connect RGB cable from computer.
PC Audio In: Connect 3.5mm connector from computer.
Ethernet: Connect an Ethernet cable for VIZIO Internet Apps.
Composite AV: Connect composite video/audio device.
Cable/Antenna: Connect RF/Coaxial connector from cable, antenna,
or satellite box.
Optical Audio Out: Connect SPDIF/Optical audio cable.
RCA Audio Out: Connect RCA audio device (soundbar, home theater,
etc).
