Vizio Quantum M558-G1 User Manual

v

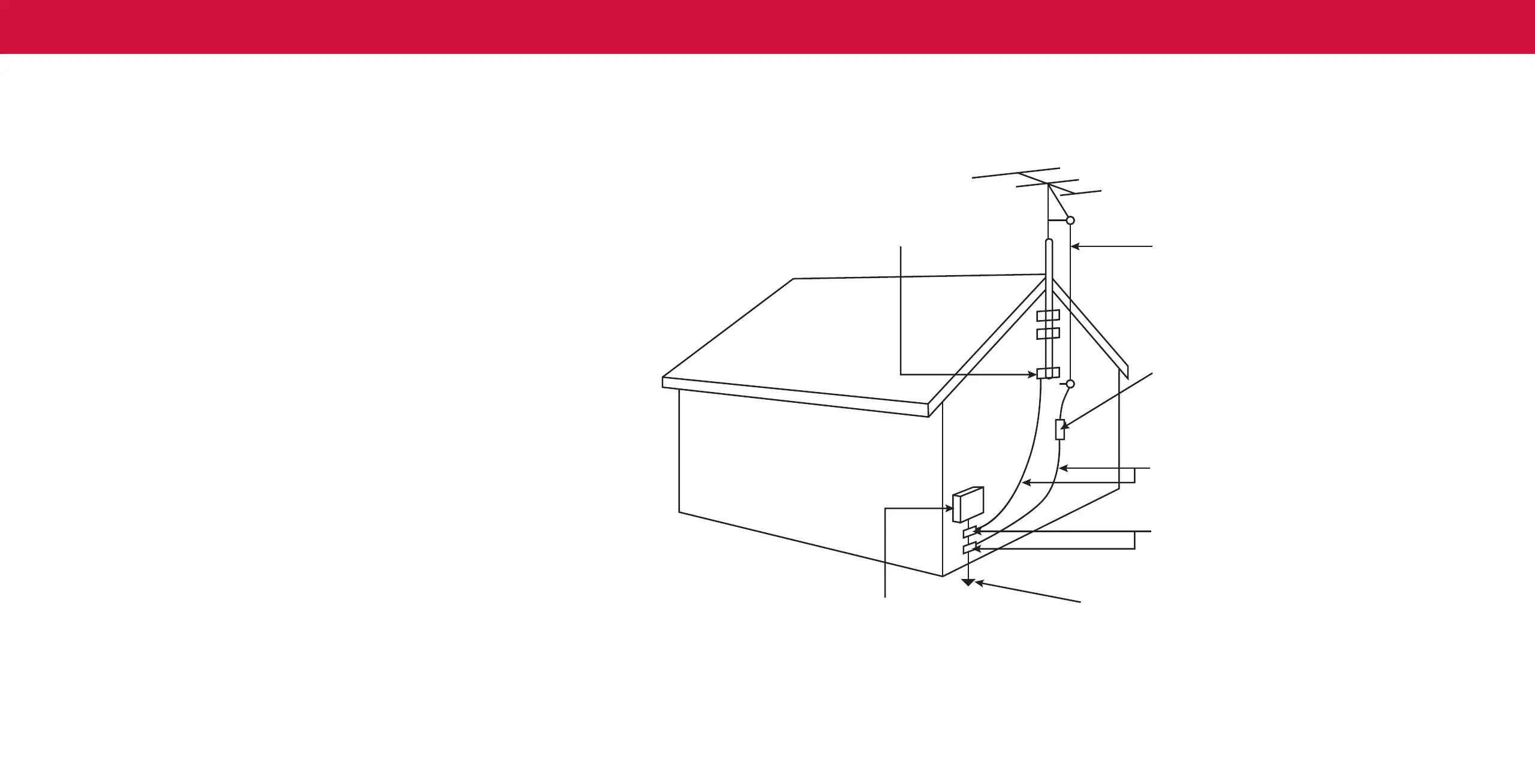

Ground Clamp
Antenna Lead In Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding Electrode System
(NEC ART 250, part H)
Electric Service Equipment
TELEVISION ANTENNA CONNECTION PROTECTION
If an outside antenna/satellite dish or cable system is to be connected to the TV,
make sure that the antenna or cable system is electrically grounded to provide
some protection against voltage surges and static charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with
regard to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of the grounding conductors, location
of antenna discharge unit, connection to grounding electrodes, and requirements
of the grounding electrode.
Lightning Protection
For added protection of the TV during a lightning storm or when it is left unattended
or unused for long periods of time, unplug the TV from the wall outlet and disconnect
the antenna or cable system.
Power Lines
Do not locate the antenna near overhead light or power circuits, or where it could
fall into such power l ines or circuits. Remember, the screen of the coaxial cable is
intended to be connected to earth in the building installation.

Vizio Quantum M558-G1 Specifications

General

Screen Type	led
Wall Mount	300mm x 200mm
Features	quantum color, 90 local dimming zones, smartcast, apple airplay, chromecast built-in, works with siri, google assistant, alexa
Tuner	digital
Screen Size	54.5 inches, 55 inches
Screen Technology	quantum led
Resolution	4k (2160p)
Refresh Rate	60hz
Closed Captioning	yes
Motion Enhancement	clear action 360
HDR	yes
HDR Format	dolby vision, hdr 10, hybrid log-gamma (hlg)
Built-In Speakers	yes
Surround Sound	dolby digital plus
Speakers Output	20 watts
HDMI ARC Ports	yes
USB Ports	1
Ethernet	yes
RF Antenna	yes
Network	built-in wi-fi, ethernet
Digital Optical Audio Outputs	1
Analog Audio Outputs	1
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
SmartTV	smartcast
Smart Applications	amazon alexa, google assistant, siri
Voice Assistant	no
Remote Control	standard
3D	no
Power Consumption	297 kilowatt hours
Depth with Stand	10 inches
Height with Stand	30.6 inches
Width with Stand	48.6 inches
Net Weight with Stand	36.4 pounds
Depth without Stand	2.9 inches
Height without Stand	28.3 inches
Net Weight without Stand	35.9 pounds
