To mount your TV on a wall, you will need a wall mount. Consult the
information on this page to nd the appropriate mount for your TV.
Be sure the mount you choose is capable of supporting the weight of the TV.
After you have determined that you have the correct mount for your TV, you
can begin the installation.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, at, stable surface. Be sure the surface
is clear of debris that can scratch or damage the TV.
3. If attached, remove the stands by loosening and removing the screws.
4. Attach your TV and wall mount to the wall, carefully following the
instructions that came with your mount. Use only with a UL-listed wall
mount bracket rated for the weight/load of this TV.
D24h-G9 D32h-G9 D40f-G9 D50x-G9 V405-G9 V505-G9 V655-G9
Screw Size: M4 M4 M6 M6 M6 M6 M6
Hole Depth: 8.5 mm 8.5 mm 10 mm 9 mm 10 mm 9 mm 9 mm
Hole Pattern: 100 mm x 100 mm 100 mm x 100 mm 200 mm x 200 mm 200 mm x 200 mm 200 mm x 200 mm 200 mm x 200 mm 400 mm x 200 mm
Weight w/o Stand: 6.90 lb (3.13 kg) 9.26 lb (4.20 kg) 14.33 lb (6.5 kg) 21.32 lb (9.67 kg) 14.99 lbs (6.80 kg) 21.32 lb (9.67 kg) 45.81 lb (20.78 kg)
Installing a TV on a wall requires lifting. To prevent injury or
damage to the TV, ask someone to help you.

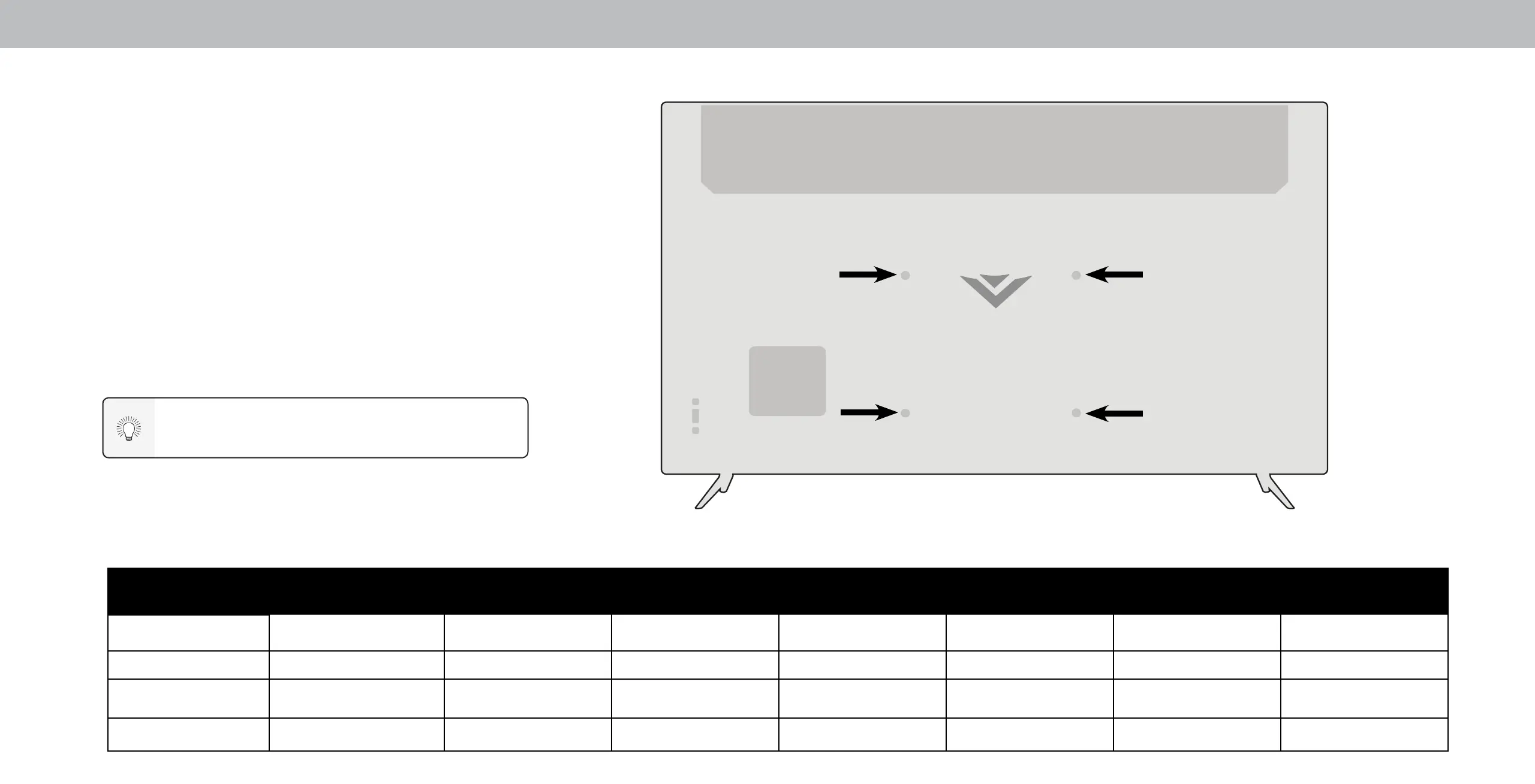

WALL-MOUNTING THE TV
Note: The image shown here is for illustrative purposes only and may be subject to change.
The actual number of ports and their locations may vary, depending on the model.
To Next Page
