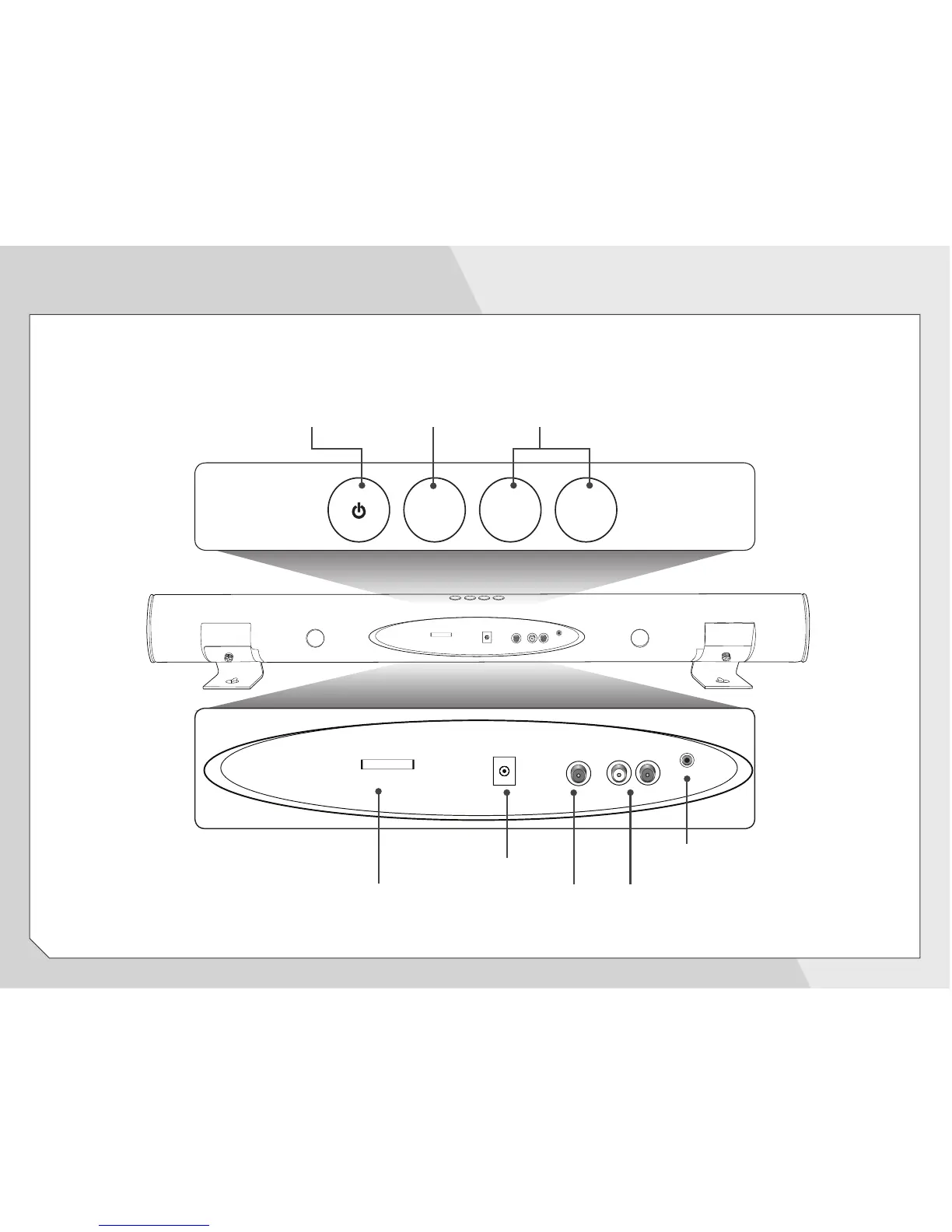

Vizio VSB207 - Controls and Connections; Sound Bar Controls; Rear Panel Connections

Power
Press to turn
Sound Bar
on or off.
Volume + / -
Press to increase/
decrease system
volume.
Input
Press to change
input source
(Input 1, Input 2).
Input Vol -Vol +
24V DC
SERVICE
INPUT 1
INPUT 2
SUB OUT
Input 1
(Stereo RCA)
Power Port
Service Port
For use only by service technician.
Input 2
(Stereo 3.5mm)
CONTROLS & CONNECTIONS
24V DC
SERVICE
INPUT 1
INPUT 2
SUB OUT
Sub Out
(RCA)
