Serial Server Serial Port Connector Pin-outs
Pin-outs for RS-232, RS-422 and RS-485 operation are shown below.
DB-9M
Pin
RS-232
Signal Name
DTE RS-422 RS-485
1 Carrier Detect DCD In RXDA (−) --
2 Receive Data RXD In RXDB (+) --
3 Transmit Data TXD Out TXDB (+) Data B (+)
4 Data Terminal Ready DTR Out TXDA (−) Data A (−)
5 Signal Ground GND --- GND GND
6 Data Set Ready DSR In CTSA (−) --
7 Request To Send RTS Out CTSB (+) --
8 Clear To Send CTS In RTSB (+) --
9 Ring Indicator RI In RTSA (−)

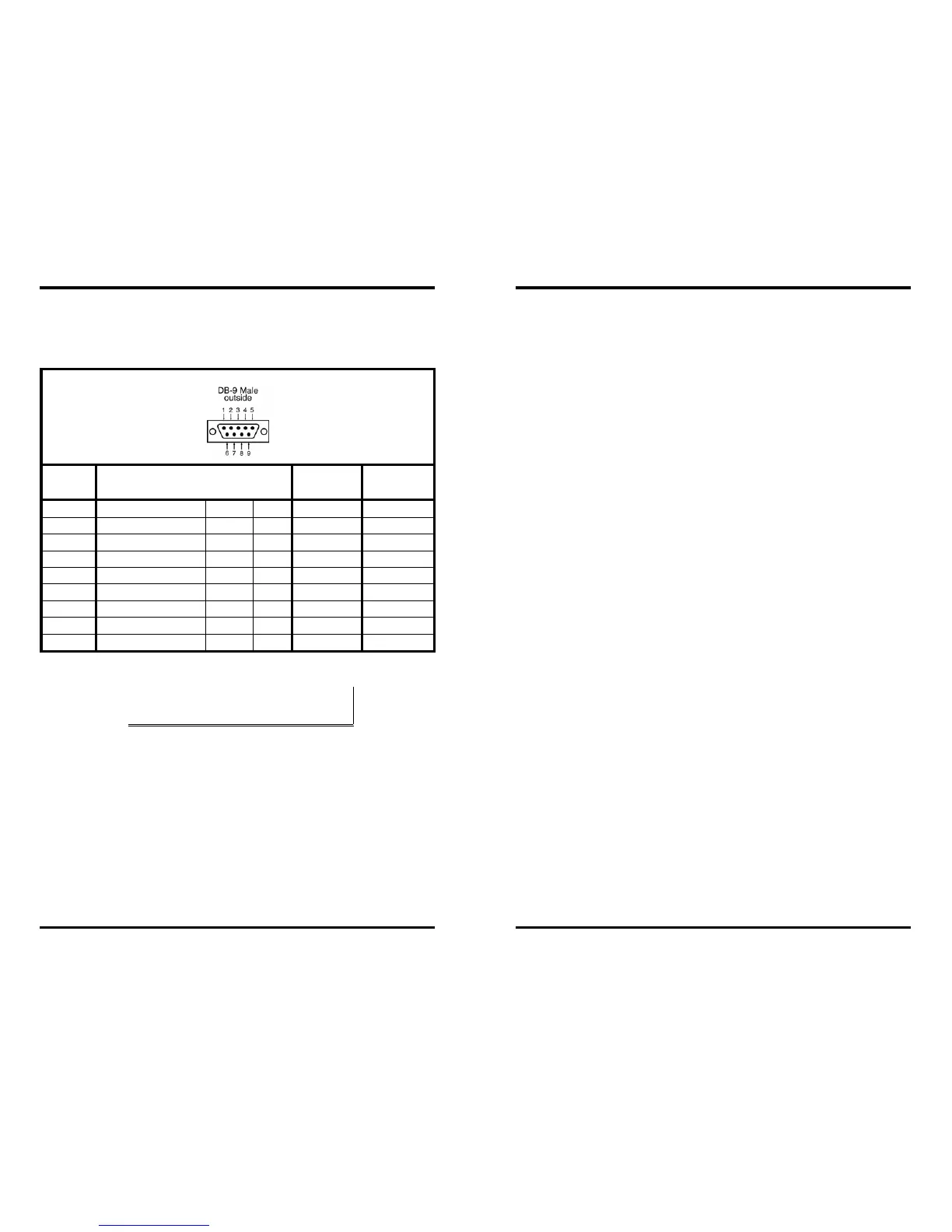

Figure 11. Serial Connection Pin-outs for RS-232/RS-422/RS-485
N
N
o
o
t
t
e
e
:
:
For more information on RS-232, RS-422 and RS-485 pin-outs, cable
connections and loopback connections refer to Appendices A, B and C
