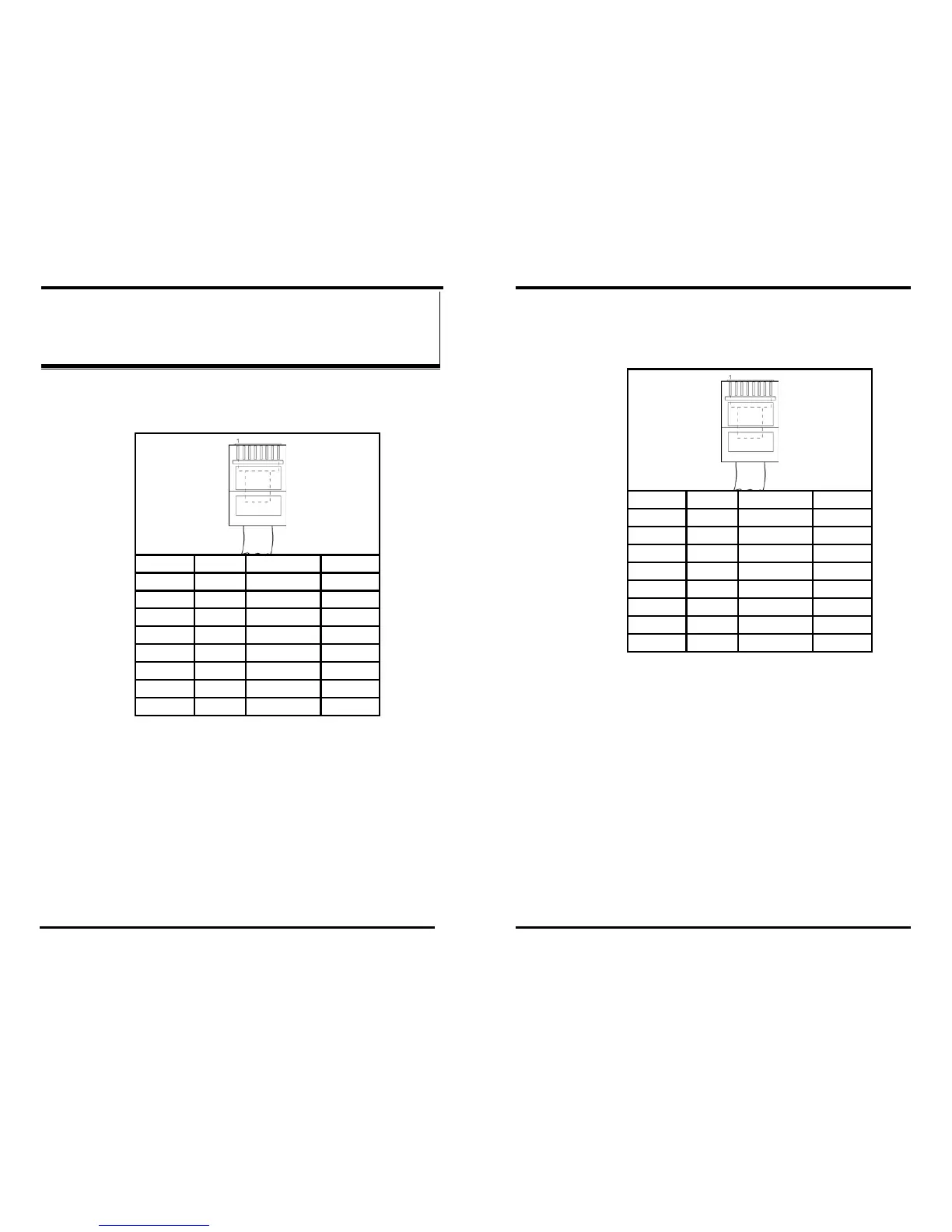

Standard Ethernet Cable RJ-45 Pin-out
RJ-45 Pin Signal Wire Color RJ-45 Pin
1 TX+ White-Green 1
2 TX+ Green 2
3 RX+ White-Orange 3
4 Not used Blue 4
5 Not used White-Blue 5
6 RX- Orange 6
7 Not used White-Brown 7
8 Not used Brown 8
Figure 72. Pin-out for a Standard Ethernet Cable
Network Connections
82 Appendix D Manual Documentation Number: ESP901-902-3704
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Pk – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Crossover Ethernet Cable RJ-45 Pin-out
RJ-45 Pin Signal Wire Color RJ-45 Pin
1 TX+ White-Green 3
2 TX+ Green 6
3 RX+ White-Orange 1
4 Not used Blue 4
5 Not used White-Blue 5
6 RX- Orange 2
7 Not used White-Brown 7
8 Not used Brown 8
Figure 73. Pin-out for a Crossover Ethernet Cable
